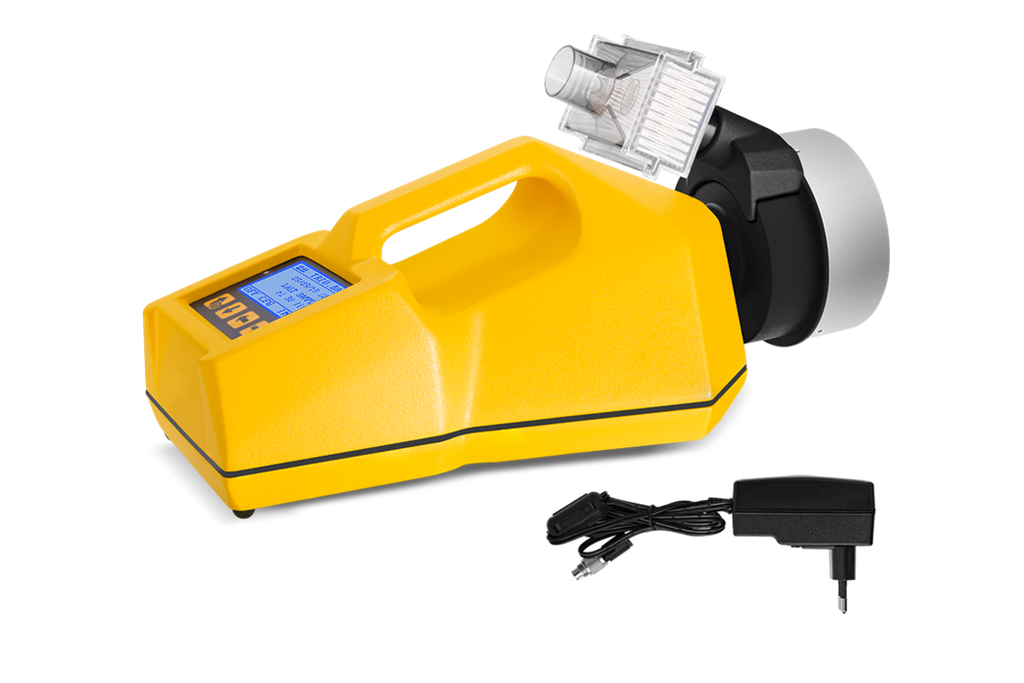

TRIO.BAS MONO FILTER 100 Petri PACK with Cable

Reference: ORU-170K

https://www.analis.com/web/image/product.template/11963/image_1920?unique=b487480

Single aspirating chamber for Petri plates with Hepa filter on air outlet.
The TRIO.BAS microbial air samplers have an electrical motor that do not produce particles after the cleaning procedure.
If the same air sampler is transferred in different environments with different levels of microbial contamination (from high to low – e.g. from C to A area), a risk of cross-contamination is possible.
In this case, to avoid this risk of transferring particles from the inside part of the aspirating chamber, it is suggested to adopt those air samplers that include an HEPA filter fixed on the air outlet of instrument.
The purpose of the filter is to stop the potential transfer of particles.
The HEPA filter is positioned externally and therefore its replacement is very simple.

  • Main customers of TRIO.BAS MONO FILTER are pharmaceuticals, cleanrooms and biotech industries. The HEPA filter allows to capture the particulates
  • The data is transferred via Bluetooth between the air sampler and a smartphone or tablet (Android version) and then to a PC or laptop
  • The data may be transferred via cable, too. This is helpful for all companies that, due to internal policy, are not allowed to use wireless transfer
  • It is possible to work either in manual or automatic mode
  • Body IP 65 certified for protection from dust and water
  • The battery is recharged by a power cable connected directly to the air sampler
  • The use of sterile "Daily Shift" aspirating heads reduces the risk of contamination


Including with this reference:

  • 1x TRIO.BAS MONO BLUETOOTH FILTER Air sampler (100 lts/min) Petri 90 plate with battery charger 100/240VCA 18VDC 859 mA with adapter for plug Eu/UK/USA - and CABLE for transfer data,
  • 1 box HEPA filter and 1 calibration certificate
  • 1x s/s ASPI HEAD Petri plate
  • 1x COVER HEAD s/s to protect ASPI HEAD
  • 1x ROBUSTUS STANDARD carrying case - 48x38x17h cm

    This combination does not exist.

    Technical information

    • Light weight, ergonomic and balanced design to facilitate handling with or without gloved hands
    • Technopolymer shockproof body with antibacterial performances of surfaces
    • Compliant with ISO 14698-1, EN 17141, GMP and GAMP
    • Stainless steel aspirating head with quick bayonet closure, identification number and stainless steel cover to prevent contamination
    • Volume of aspirated air: 100 l/m
    • Selected volumes from 30 to 6.000 litres and 17 preset programs
    • The aspirating chamber is suitable for 55 mm Contact plates or 90 mm Petri dishes
    • HEPA filter
    • Auto calibration: power/flow electronic real time control
    • Power supply system: the instrument can be charged continuosly by AC powered source 110/240 Volt 50/60 Hz or by rechargeable batteries (inserted inside the air sampler)
    • Cycles battery autonomy: 30.000 litres
    • P65 certified protection from dust and water
    • Language: English, French, German, Spanish, Italian
    • Operative aspirating cycles: manual and automatic
    • Memorized data: up to 1.000 samplings
    • Configuration of 50 users and 50 places
    • Delay time, fraction time and fraction number
    • Bluetooth connection or cable for data transfer
    • Automatic next calibration reminder
    • Data integrity CFR 21 and GAMP5
    • CE mark
    • Dimension: 33x16x15h cm
    • Weight: 1.440 gr
    • Built in ISO 9001 premises
