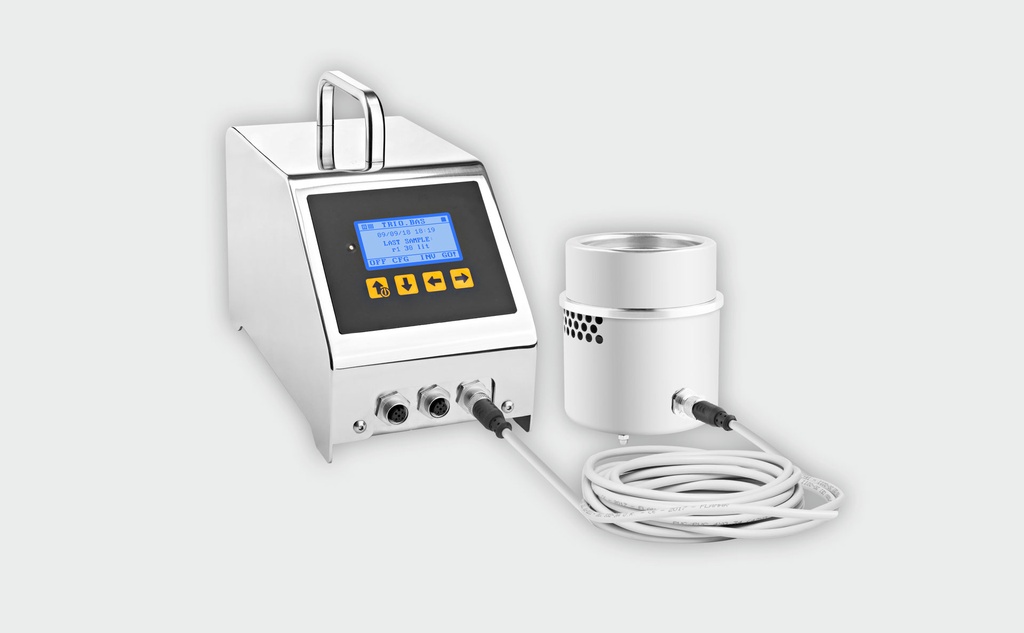

TRIO.BAS RABS ISOLATOR CM 25 l/m PETRI with 1 SATELLITE PACK

Reference: ORU-850K

https://www.analis.com/web/image/product.template/114562/image_1920?unique=9c80963

Microbial air monitoring system that samples at 25l/min to comply with continuous monitoring of the new GMP Annex 1 in Grade A and B zones. Unit is constructed in stainless steel to resist H2O2 decontamination. The unit can be connected with up to 3 satellite units to sample different locations simultaneously, or program them to sample in relay. System can also be configured to do remote sampling. This air sampling system is deal for continuous monitoring.

Each PACK consists of:

  • 1 TRIO.BAS RABS ISOLATOR stainless steel command unit with battery charger,
  • 1 calibration certificate,
  • 1 s/s satellite,
  • 1 s/s aspirating head (code 830) with s/s cover head (code 465),
  • 1 cable connection (5 mt) (code 265),
  • 1 cable for data transfer
  • and 1 robustus medium carrying case

    This combination does not exist.

    TRIO.BAS RABS ISOLATOR CM 25 l/m PETRI with 1 SATELLITE PACK

    Technical information

    • AISI 316 rated stainless steel (command unit + satellite units)
    • Compliant with ISO 14698-1, EN 17141, GMP and GAMP
    • Stainless steel aspirating head with quick bayonet closure, identification number and stainless steel cover to prevent contamination
    • Volume of aspirated air: 100 or 200 l/m
    • Selected volumes from 30 to 6.000 litres and 17 preset programs
    • The aspirating chamber is suitable for 55 mm Contact plates or 90 mm Petri dishes
    • Auto calibration: power/flow electronic real time control
    • Power supply system: the instrument can be charged continuosly by AC powered source 110/240 Volt 50/60 Hz or by rechargeable batteries (inserted inside the air sampler)
    • Cycles battery autonomy: 70.000 litres
    • Language: English, French, German, Spanish, Italian
    • Operative aspirating cycles: manual and automatic
    • Memorized data: up to 1.000 samples
    • Configuration of 100 users and 100 places
    • Delay time, fraction time and fraction number
    • Bluetooth connection or use of cable for data transfer
    • Automatic next calibration reminder
    • Data integrity CFR 21 and GAMP5
    • CE mark
    • Continuous/trending analysis according to the USP
    • Dimension: 25x13x18h cm
    • Weight: 3.150 gr
    • Built in ISO 9001 premises
