REPHILE

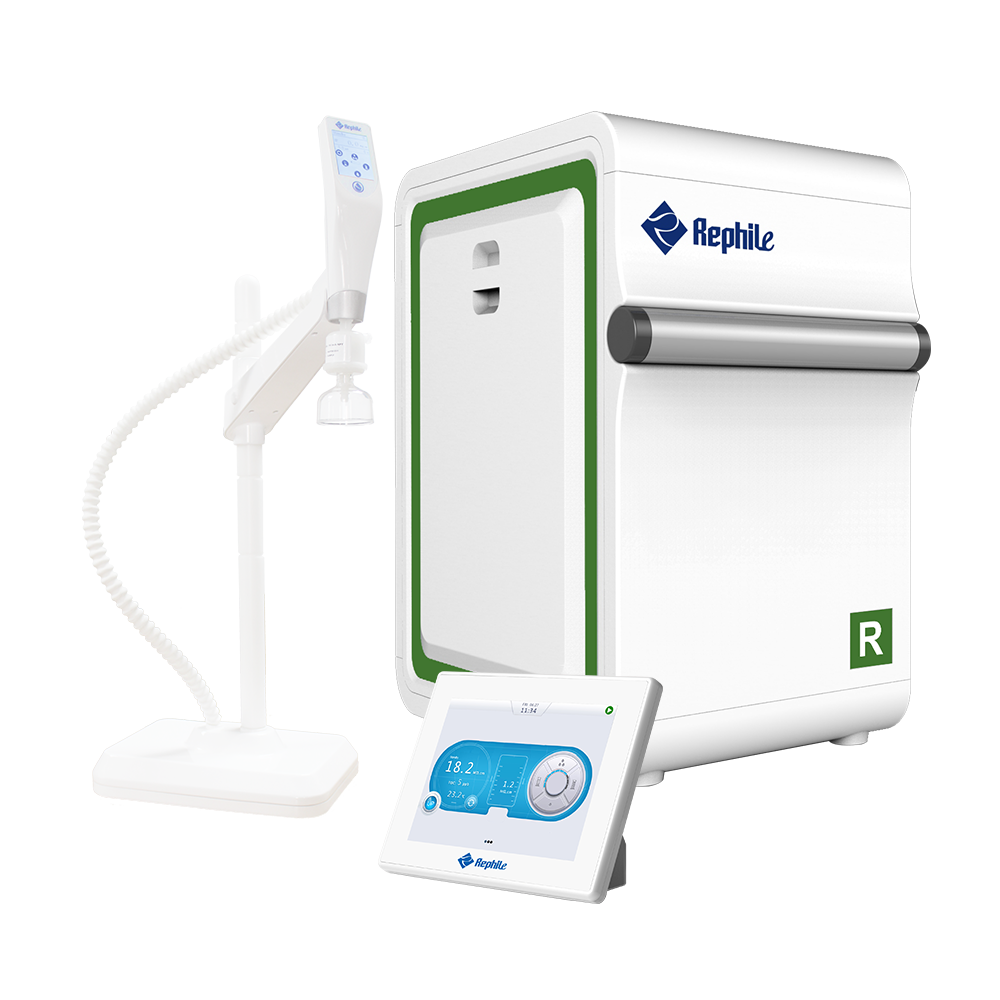

Genie R 32 System set

Reference: REP-RG0R03000K

Genie R produces reverse osmosis (RO) laboratory-grade water from tap water directly. It applies high recovery reverse osmosis (RO) technology to produce pure water for general laboratory needs with easy maintenance and low running costs. Genie R offers desired solutions for research professionals who work with a variety of applications utilizing RO pure water in the lab.

The system is CE/RoHS certified. RephiLe provides full document support to meet user’s GMP, GSP, GAP, GCP, GLP requirements.

Design & Functions

The system can be linked to multiple dispensers via wired or wireless. “1+N” Mode.
Automatic temperature compensation allows RO production rate stable over a wide range of temperature.
Fully automated control system has cleaning, rising, flush and many other functions.
System automatically rinses a new RO membrane. User does not need to set special rinse program for a new RO membrane.
A bypath automatically sends the RO water to the drain if it does not meet a preset quality standard. The RO drain water is reused to increase the water yield thus it is more environmentally friendly.
The main system can be tucked away to save precious bench space since it fits well to be wall-mounted, set on the shelf or under the sink.
The Chlorine cleaning and pH cleaning functions keep the maintenance easier and ensure optimal water quality.
Leak protector is incorporated inside to shut the feed water off to prevent damage from leakage.
A tank sanitization module can be used to effectively keep microbial growth at a lower level by LED UVC light.
Tank recirculation model guarantees water quality in the tank.

Easy Operation and Maintenance

Performance history, alarms and alerts information, maintenance data of consumables as well as key parts are logged and traceable from a simple RFID scan at installation.
RFID tags ensure perfect placement of consumables and trace their performance.
Water quality, operation parameters, the status of the system, dispensers, components, and peripheral devices are stored and displayed on the large color touch screen monitor.
Signature verification for maintenance and service.

Cartridges and Parts

1. Cartridge

Pre-filtration pack removes most large particles, chlorine, calcium or organic compounds to protect RO membrane to extend their usable life.

AC Pack contains special activated carbon to remove organic impurities and free chlorines.

2. Control console

8-inch console controls system and peripheral devices (Such as leak protector and tank sanitization module). All operations can be done on the console by touching the screen.

The control console can be placed on the bench or inside a drawer for further flexibility and space saving.

The console screen and dispenser screens are water-drop proof. You can operate the console and dispenser with latex gloves on.

The system has two level password protection on display menu for safety purposes.

3. Dispenser

The volumetric function can automatically deliver the water volume you need once it is set up.

With the adjusting button on a control console or a dispenser, you can dispense water at the flow rate you need up to 2 liters per minute.

A dispenser handle can be set on the dispenser stand, on the main system, or even hanging onto other places to free up maximum bench space.

4. Level sensor

The tank integrated continuous level sensor measures water level within the tank and manages the system to start or stop producing water automatically based on requirements.

Water level and quality inside the tank can be viewed from the control console.

Request more information

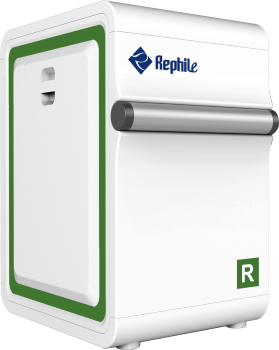

Rephile water purification RG0R03000K Genie R 32 System only

Technical information

Feed Water Requirements
Tap water	Municipal water, Conductivity < 2000 μS/cm (1000 ppm)
Operating temperature	5 - 35 ℃
Feed water pressure	1 - 6 bar psi (15 - 90)
Water Flow Rate
Water production rate (@ 25℃)	12, 24, 32 L/hr
Water dispensing rate	Up to 2.0 L/min
Product Water Quality
Water conductivity (@ 25℃)	typically < 20 μS/cm (feed water conductivity < 500 μS/cm)
RO rejection	97 to 98% ionic rejection (new RO cartridge) > 99% organic rejection > 99% particulates & bacteria rejection
Product Water Quality Stored in Tank (for tank recirculation models)
Resistivity (＠25℃)	> 1 MΩ·cm (default), adjustable
Dimensions
Main system dimensions Width × depth × height	32 × 44 × 54 cm (12.6 × 17.3 × 21.3 in)
Dispenser dimensions Width × depth × height	21 × 29 × 61 cm (8.3 × 11.4 × 24.0 in)
Weight	20 kg
Input Voltage	110 - 240 VAC
Operating Voltage	24 VDC
Main system power	< 200 W

*Product water quality may vary due to local feed water conditions.
