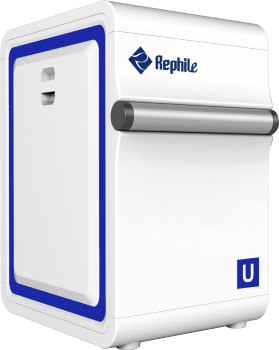

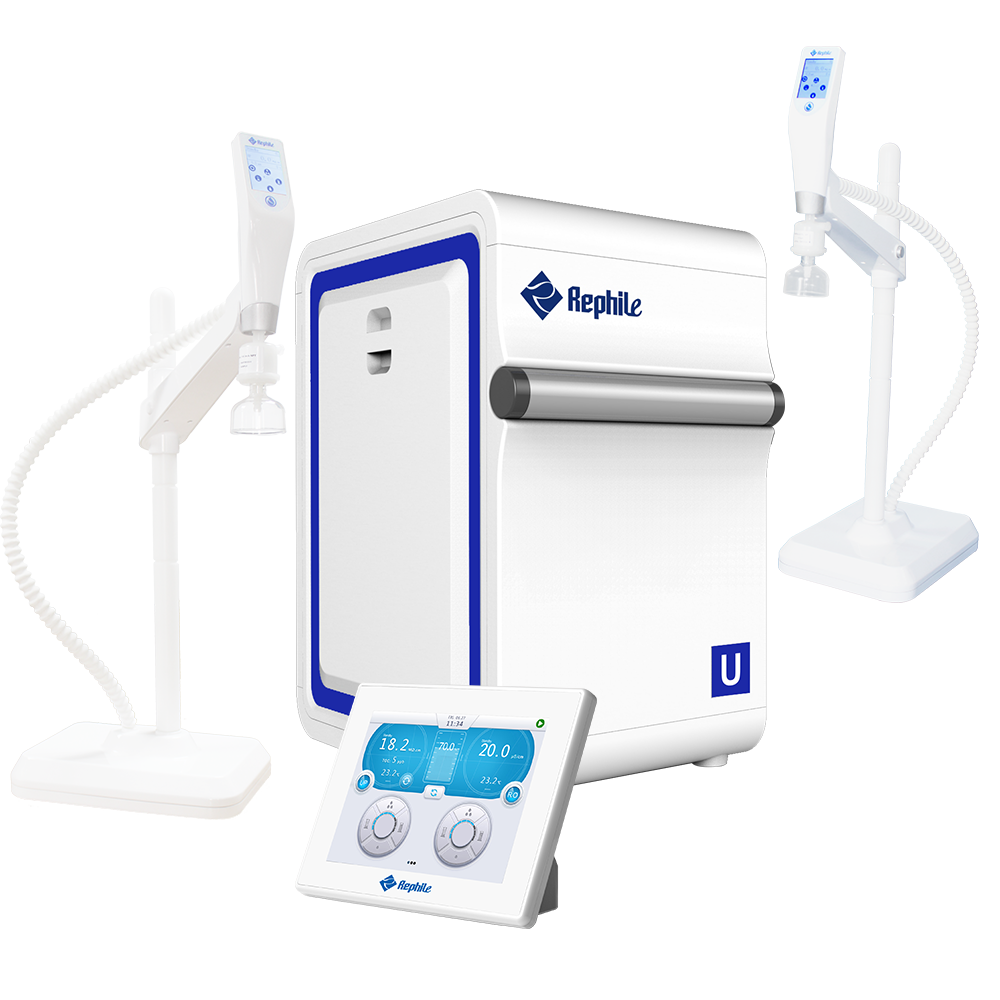

Genie U 32 System set

Reference: REP-RG0U03000K

Genie U produces ultrapure water (Type I water) and RO water from tap water directly, it offers desired solutions for research professionals who work with varieties of applications utilizing Type I ultrapure and RO pure water in the lab. Quality of ultrapure water meet or exceeds ASTM, CLSI, CAP, and ISO Type I water standards.

The system is CE/RoHS certified. RephiLe provides full documents support to meet user’s GMP, GSP, GAP, GCP, GLP requirements.

Design & Functions

• The system can be linked to multiple dispensers via CAN cable or wireless. “1+N” Mode.
• Automatic temperature compensation allows RO production rate stable over a wide range of temperature.
• Fully automated control system has cleaning, rising, flush and many other functions.
• System automatically rinses a new RO membrane. Users do not need to set special rinse program for a new RO membrane.
• A bypath automatically sends the RO water to the drain if it does not meet a preset quality standard. The RO drain water is reused to increase the water yield thus it is more environmentally friendly.
• The main system can be tucked away to save precious bench space since it fits well to be wall-mounted, set on the shelf or under the sink.
• The Chlorine cleaning and pH cleaning functions keep the maintenance easier and ensure optimal water quality.
• Leak protector incorporated can prevent damage from a water leakage by shutting the feed water off in case of unexpected leaking.
• Tank recirculation model guarantees water quality in the tank.

Effective TOC level controlment

• Built-in 185/254 nm dual wavelength lamp reduces TOC level in ultrapure water.
• A tank Sanitization Module is equipped to effectively keep microbial growth at a lower level by LED UVC light.
• On-line TOC monitor based on complete oxidation methods (for TOC models).

Easy Operation and Maintenance

• Performance history, alarms and alerts information, maintenance data of consumables as well as key parts are logged and traceable from a simple RFID scan at installation.
• RFID tags ensure perfect placement of consumables and trace their performance.
• Water quality, operation parameters, the status of the system, dispensers, components, and peripheral devices are stored and displayed on the large color touch screen monitor.
• Signature verification for maintenance and service.

Cartridges and Parts

1. Cartridge

• Pre-filtration pack removes most large particles, chlorine, calcium or organic compounds to protect RO membrane to extend their usable life..
• AC Pack contains special activated carbon to remove organic impurities and free chlorines.
• Ultra purification cartridge is filled with LeFilTM and OrganeFilTM media to remove trace ions and organics.

2. Control console

• 8-inch console controls system and peripheral devices (Such as leak protector and tank sanitization module). All operations can be done on the console by touching the screen.
• The control console can be placed on the bench or inside a drawer for further flexibility and space saving.
• The console screen and dispenser screens are water-drop proof. You can operate the console and dispenser with latex gloves on.
• The system has two level password protection on display menu for safety purposes.

3. Dispenser

• The volumetric function can automatically deliver the water volume you need once it is set up.
• With the adjusting button on a control console or a dispenser, you can dispense water at the flow rate you need up to 2 liters per minute.
• A dispenser handle can be set on the dispenser stand, on the main system, or even hanging onto other places to free up maximum bench space.

4. Final Filter

• A wide range of final filters (optional) is applicable to ensure ultrapure water without particles, bacteria or pyrogen.

5. Level sensor

• The tank integrated continuous level sensor measures water level within the tank and manages the system to start or stop producing water automatically based on requirements.
• Water level and quality inside the tank can be viewed from the control console.
