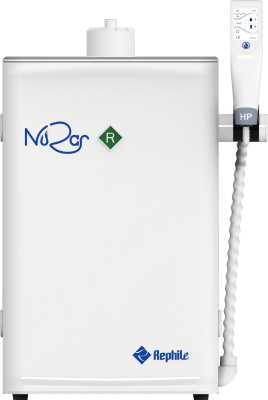

NuZar R 24 Water system set

Reference: REP-RN0R020T1K

NuZar water system set, R24 produces reverse osmosis (RO) water from tap water directly. It offers desired solutions for research professionals who work with a variety of applications utilizing RO pure water in the lab.

The NuZar water purification systems are compact and powerful. They are specifically designed for laboratories that demand a balance between the cost of ownership and exceeding their purified water requirements.

The system is CE/RoHS certified. RephiLe provides full document support to meet user’s GMP, GSP, GAP, GCP, GLP requirements.

Feed: tap water
Product: RO Water
RO Makeup rate: 24 lph

NuZar U24 Set System includes:

Main system
RO membrane
10L tank preinstalled
Tank vent filter
NuZar P Pack cartridge
Leak protector

What can we expect from NuZar U24?

Simple installation and maintenance

RFID tracking of consumables (RO Pack included) for enhanced management
Easy to remove consumable access cover.
Automatic RO membrane cleaning cycles (Cl2 and pH cleaning)

Reliable water quality and stable system performance

Stable RO permeability over a wide range of temperatures
Diversion to drain if quality of RO permeate falls below a pre-set set-point
Mercury-free germicidal UVC LED lamp preinstalled in tank sanitation module

Data traceability

Automatic data backup for up to 2 years
Easy data transfer through multiple interfaces, such as LAN, USB, etc.

Low running cost

Environmentally friendly. High recovery rate
Self-maintenance functions for maximum RO membrane effectiveness and lifetime
RFID record of cartridge history for predictable consumable replacements
Highly-efficient cartridge

Compact and small footprint

An in-built single pretreatment P Pack
Placement flexibility - on the bench or on a wall
All-in-one design. Space-Saver

Main Components:

Cartridge

Optimized flow design to improve water quality stability & efficiency of polishing resins
High pressure rated housings, proprietary sealing, and double O-ring design ensures operational confidence
Cartridge color, label, and RFID recognition prevent incorrect installation

Ergonomic dispenser with 2.4″color touch screen

Two dispensers for one system
Intuitive display - water quality with temperature compensation, volumetric dispensing and flow rate
System alerts are displayed on the touch screen
Effortless adjustment - dispensing rate (up to 2 L/min), manual and volumetric dispensing
Choice of final filters: 0.2 μm final filter
Two dispenser heights for the ultimate in flexibility

Storage Tank

A 10 L integrated HDPE tank equipped with sanitization module, mercury-free germicidal UVC LED lamp (peak emission wavelength at 265 nm) preinstalled.
Extendable to 30/60/100/350 L tank (with mercury-free tank sanitization module) if needed.

Request more information

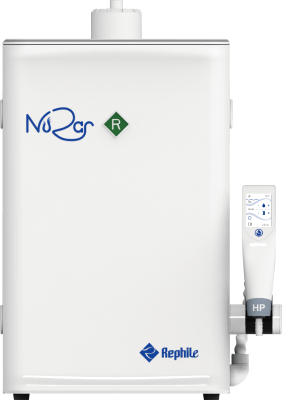

RN0R020T1K Rephile Nuzar R Type III Reverse Osmosis RO Water Purification System with dispenser moved on bottom position

Technical information

General Specifications
Operating voltage	24 VDC
Input voltage	100 - 240 VAC
Main system power	< 190 W
Feed Water Requirements
Feed water	Tap water
Feed water conductivity / TDS	< 2000 μS/cm / < 1000 ppm
Operating temperature	5 – 35 °C
Feed water pressure	1 – 6 bar (15 – 90 psi)
Product Water Quality
RO production rate	24 L/hr
RO water dispensing rate	Up to 2 L/min
RO water Conductivity (@25°C)	Typically < 20 μS/cm
RO rejection	97 to 98% ionic rejection (new RO cartridge) > 99% organic rejection > 99% particulates & bacteria rejection
Dimensions & Weight
Dimensions (W x D x H)	w/ integrated tank	414 x 422 x 624 mm (16.3 x 16.6 x 24.5 in)
Weight (Approximate)	Net	19 kg
Gross	28 kg
