SIGMA

Sigma 4-5KL, Refrigerated benchtop centrifuge, 220-240V, 50Hz

Reference: SIG-100004

The high-performance Sigma 4-5KL laboratory centrifuge is designed for throughput and capacity. The hight torque enables especially short acceleration times and makes laboratory processes efficient. This centrifuge is recommended for applications in clinical diagnostics and for life sciences applications

The refrigerated version Sigma 4-5KL, with a temperature adjustment range of -10°C to +40°C, is recommended for the protection of specimens with especially sensitive limit temperatures.

The Sigma 4‑5KL also boasts a low noise level and an extensive range of accessories. Up to 50 different routine protocols can be stored in program memory and easily retrieved.

The Sigma 4‑5KL is also available as unrefrigerated centrifuge and as an IVD model.

To receive a no-obligation quote for the Sigma 4‑5KL centrifuge, contact us directly.

Request more information

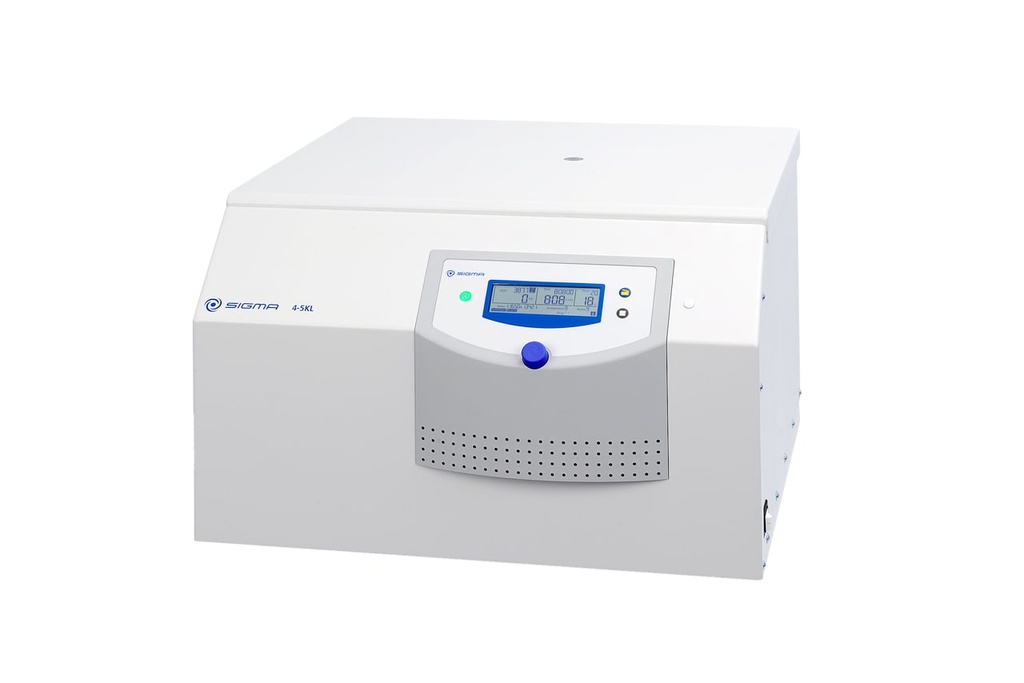

Sigma 4-5KL, Refrigerated benchtop centrifuge, 220-240V, 50Hz

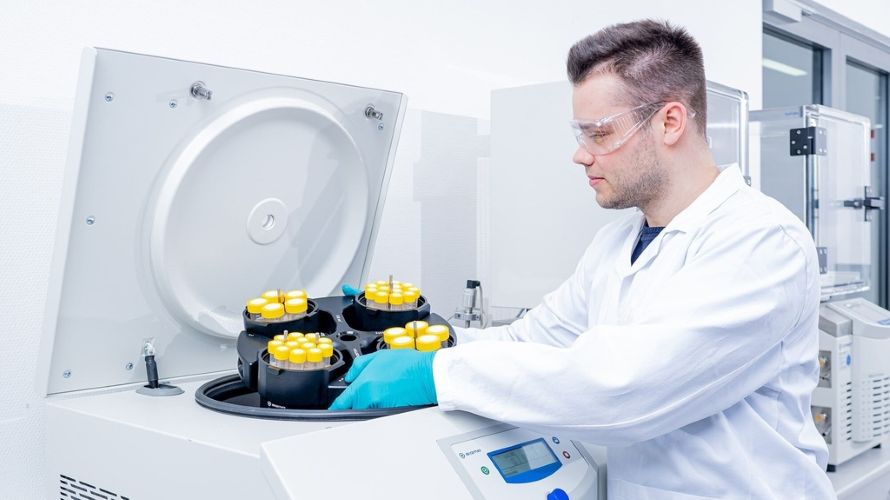

Sigma 4-5KL refrigerated benchtop high-capacity centrifuge rotor handling

Sigma 4-5KL centrifuge with open lid and fixed angle rotor

Technical information

Max. capacity [ml]
swing-out rotor	4 x 750
fixed-angle rotor	4 x 94
Max. RCF	20.376
Max. speed [rpm]	4.700
Min. speed [rpm]	100

Noise level at maximum speed (approximate) [dB(A)]
fixed-angle rotor 12449	≤ 55
swing-out rotor 11650 with bucket 13460 + Cover	≤ 54
Max. acceleration time [s]
fixed-angle rotor 12449	≤ 32
swing-out rotor 11660 with bucket 13460 + Cover	≤ 26
Max. braking time [s]
fixed-angle rotor 12449	≤ 48
swing-out rotor 11660 with bucket 13460 + Cover	≤ 26

Power consumption [W]	1.910
Height x Width x Depth [mm]	390 x 602 x 634
Height with open lid [mm]	865
Weight without rotor [kg]	110
