SIGMA

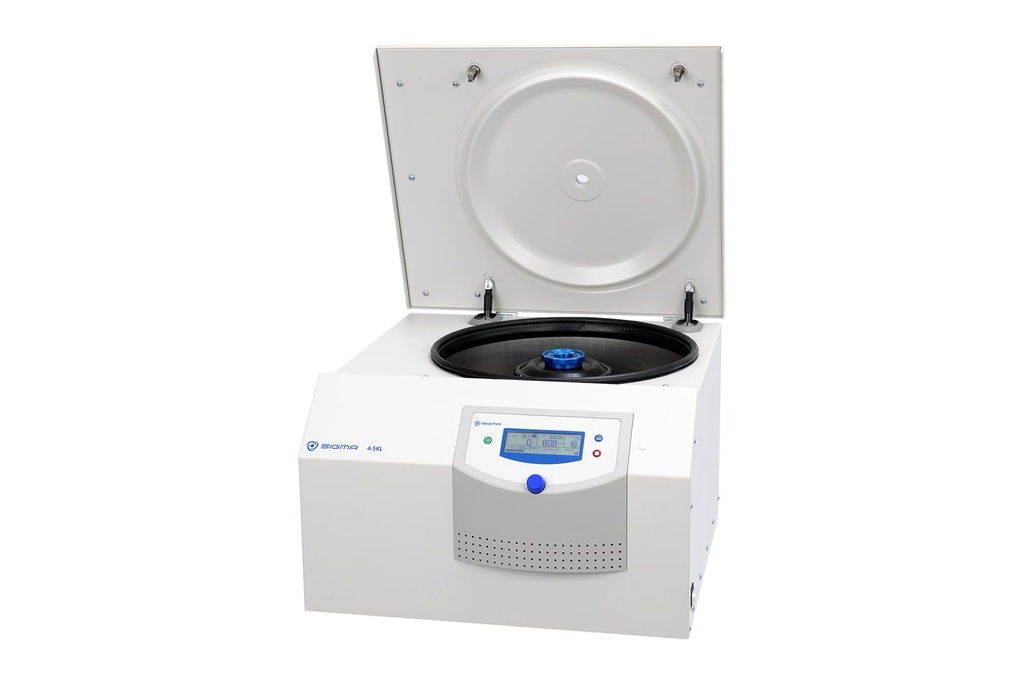

Sigma 4-5KL package refrigerated laboratory benchtop centrifuge 220-240V, 50Hz
Reference: SIG-10000417
https://www.analis.com/shop/sig-10000417-sigma-4-5kl-package-refrigerated-laboratory-benchtop-centrifuge-220-240v-50hz-29621 https://www.analis.com/web/image/product.template/29621/image_1920?unique=3dd620cSigma 4-5KL Cell Culture Package, Refrigerated Laboratory Benchtop Centrifuge
This Cell Culture Package includes:
- Sigma 4-5KL refrigerated benchtop centrifuge
- 1 swing-out rotor no. 11650
- 2 sets of 2 buckets no. 13450 (total 4)
- 2 adapters no. 17660
- 2 adapters no. 17649
The Sigma 4-5KL refrigerated centrifuge, like the Sigma 4-5L unrefrigerated version, is designed for high-throughput laboratories with changing and heavy workloads. Its versatility makes it a reliable solution for cell culture workflows and other applications requiring both capacity and temperature control.
The device ensures gentle handling of temperature-sensitive samples thanks to its –10 °C to +40 °C cooling system and Rapid Temp pre-cooling function. In addition, the ECO mode reduces energy use and noise levels, creating a more efficient and comfortable working environment.
Highlights
- Max. 4 × 750 ml capacity (swing-out rotor 11650)
- Up to 144 tubes per run with dedicated adapters
- Temperature control from –10 °C to +40 °C
- 50 programmable runs with Spincontrol L interface
- Monitoring of specimen temperature with alarm function (patented)
- Short acceleration/deceleration times
- Motorized lid lock and high imbalance tolerance
- ECO mode for energy-efficient standby
- Available as IVD product
Download brochure here below for full specifications.
Technical information
Specifications with rotor 11650 + buckets 13450
- Max. capacity [ml]: 4 × 750
- Max. RCF: 4,643
- Max. speed [rpm]: 4,700
- Min. speed [rpm]: 100
- Noise level at max. speed [dB(A)]: ≤ 66 (with bucket + cover)
- Max. acceleration time [s]: ≤ 23
- Max. braking time [s]: ≤ 20
- Power consumption [W]: 1,230
- Dimensions (H × W × D) [mm]: 390 × 496 × 634
- Height with open lid [mm]: 880
- Weight without rotor [kg]: 77
Maximum Specifications of the Centrifuge (with other rotor options)
The Sigma 4-5KL can reach significantly higher values when equipped with high-speed fixed-angle rotors:
- Max. speed: up to 13,500 rpm
- Max. RCF: up to 20,376 × g
- Noise level: as low as ≤ 54 dB(A) with certain rotor setups
This ensures the centrifuge remains flexible and can evolve with your laboratory needs.
