SIGMA

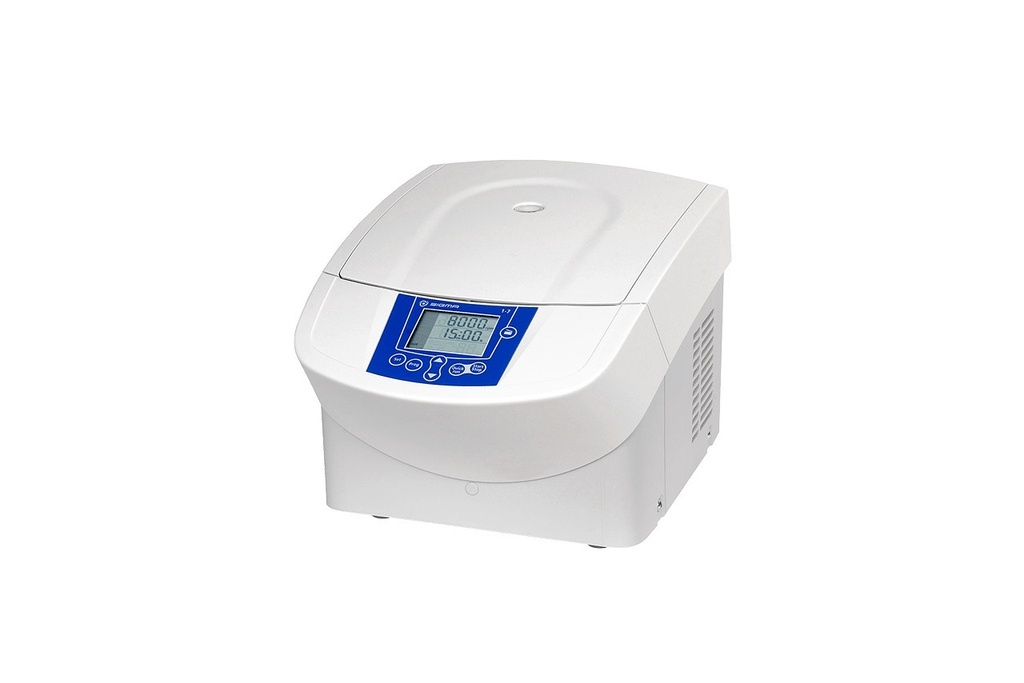

Sigma 1-7, laboratory benchtop centrifuge. 100-240 V, 50/60 Hz

Reference: SIG-100011

https://www.analis.com/web/image/product.template/93449/image_1920?unique=097f7a8

Maximum work convenience with minimum operating noise.
The Sigma 1‑7 is designed for the separation of blood and urine specimens in medical practices and small labs, and due to its strong performance it is also used in environmental analytics, schools and universities.

The Sigma 1‑7 compact benchtop centrifuge is especially good in delivering exact results in a very short time. With these attributes combined with convenient, intuitive operation and the motorised lid lock, which enables effortless closing of the centrifuge, it offers more than comparable devices in its segment.

What makes the Sigma 1‑7 benchtop centrifuge so attractive?
The Sigma 1‑7 benchtop centrifuge is the only one in its segment that supports up to ten saved programs. This allows routine protocols to be stored and work processes to be optimised. In operation this small centrifuge runs with especially low vibration, quietly and pleasantly.

The perfectly matched fixed-angle rotor of the Sigma 1‑7, with a maximum capacity of 6 x 15 ml, is well suited to meet the demands of small volumes of specimens. The maximum RCF of 6,153 x g and the short braking and acceleration times of this small centrifuge allow separation times to be shortened considerably.

    This combination does not exist.

    Technical information

    Max. capacity [ml]
    fixed-angle rotor6 x 15
    Max. RCF6.153
    Max. speed [rpm]8.000
    Min. speed [rpm]200
    Noise level at maximum speed (approximate) [dB(A)]
    fixed-angle rotor 91429≤ 58
    Max. acceleration time [s]
    fixed-angle rotor 91429≤ 13
    Max. braking time [s]
    fixed-angle rotor 91429≤ 11
    Temperature setting range [°C]-
    Power consumption [W]55
    Height x Width x Depth [mm]271 x 310 x 418
    Height with open lid [mm]527
    Weight without rotor [kg]13


    Related documents

    DOCUMENT NAME

    RELEASE DATE

    DOWNLOAD

    Brochure Sigma 1-7 EN
    19 / 09 / 2024
    Download icon Download
