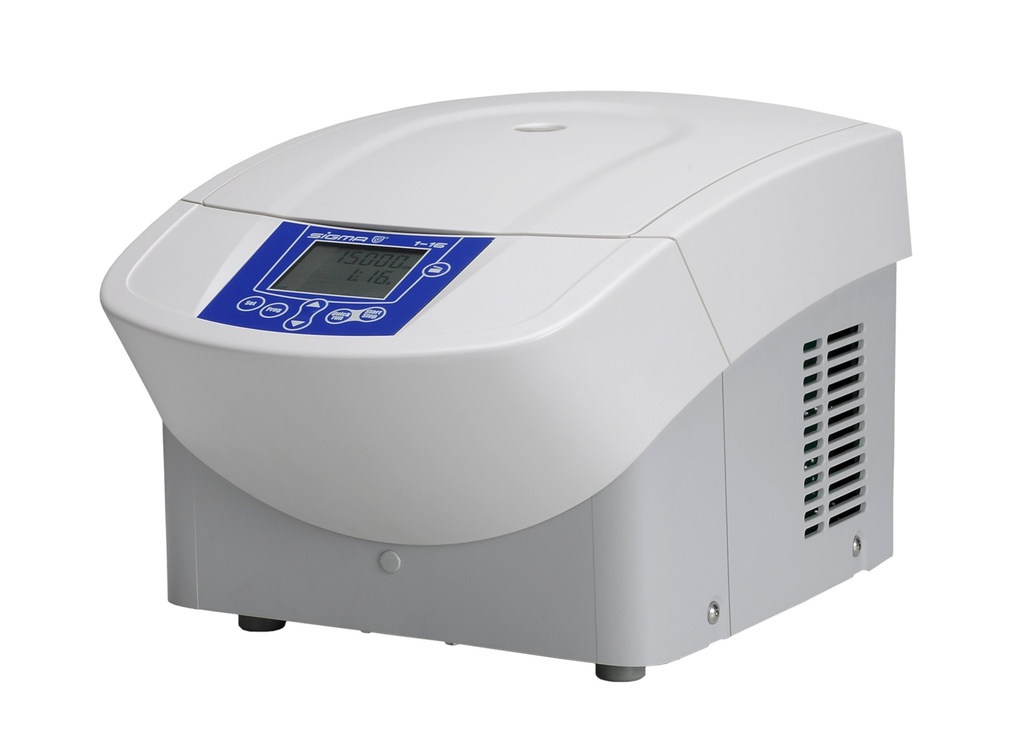

Sigma 1-16, laboratory microcentrifuge 100-240 V, 50/60 Hz

Reference: SIG-10045

https://www.analis.com/web/image/product.template/27573/image_1920?unique=893c376

Remarkably easy to use

User-friendly, powerful and sturdy
Attractive design meets ease of use. The Sigma 1-16 is a breeze to use – you can even close the motorized lid lock with a single finger. Along with user convenience, the unit features a durable, low-maintenance stainless steel bowl. The maximum capacity of the Sigma 1-16 is 24 x 1.5–2 ml or 36 x 1.5–2 ml in a single batch at an RCF of more than 20,000 x g.

Program Specifications:
Programs: 10
Acceleration curves: 2
Deceleration curves: 2
Cycle counting


The Sigma 1‑16 is also available as:

the Sigma 1‑16K refrigerated centrifuge

and as an IVD model.

    This combination does not exist.

    Technical information

    Max. capacity [ml]
    fixed-angle rotor36 x 2
    Max. RCF20.627
    Max. speed [rpm]15.000
    Min. speed [rpm]200
    Noise level at maximum speed (approximate) [dB(A)]
    fixed-angle rotor 12134≤ 59
    Max. acceleration time [s]
    fixed-angle rotor 12134≤ 16
    Max. braking time [s]
    fixed-angle rotor 12134≤ 16
    Temperature setting range [°C]-
    Power consumption [W]170
    Height x Width x Depth [mm]271 x 310 x 418
    Height with open lid [mm]527
    Weight without rotor [kg]14


    Related documents

    DOCUMENT NAME

    RELEASE DATE

    DOWNLOAD

    Brochure Sigma 1-16 & 1-16K EN
    19 / 09 / 2024
    Download icon Download

    Related accessories, consumables & products

    Sigma 1-14, laboratory microcentrifuge 220-240 V, 50/60 Hz
    SIGMA

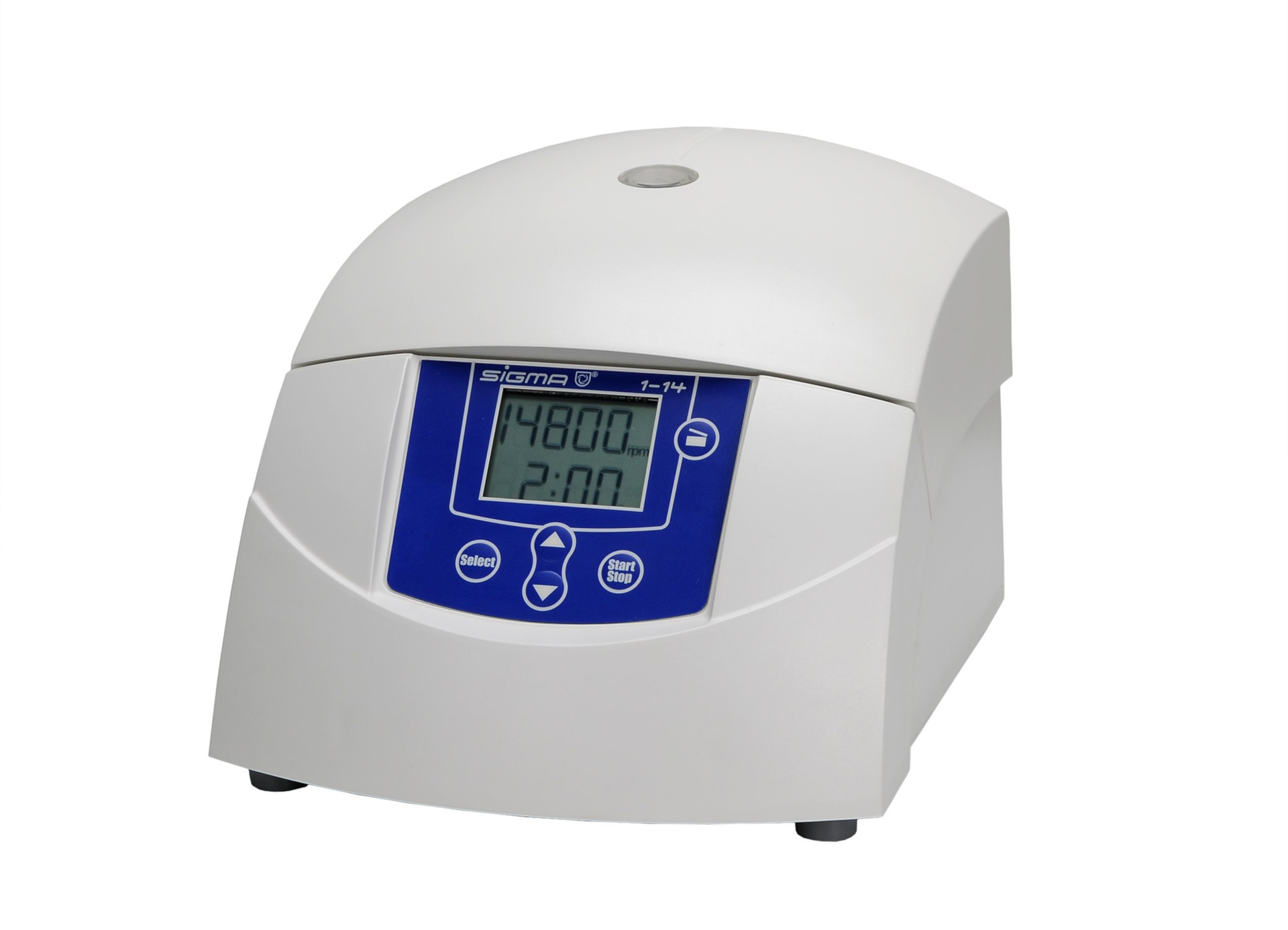

    Sigma 1-14, laboratory microcentrifuge 220-240 V, 50/60 Hz
