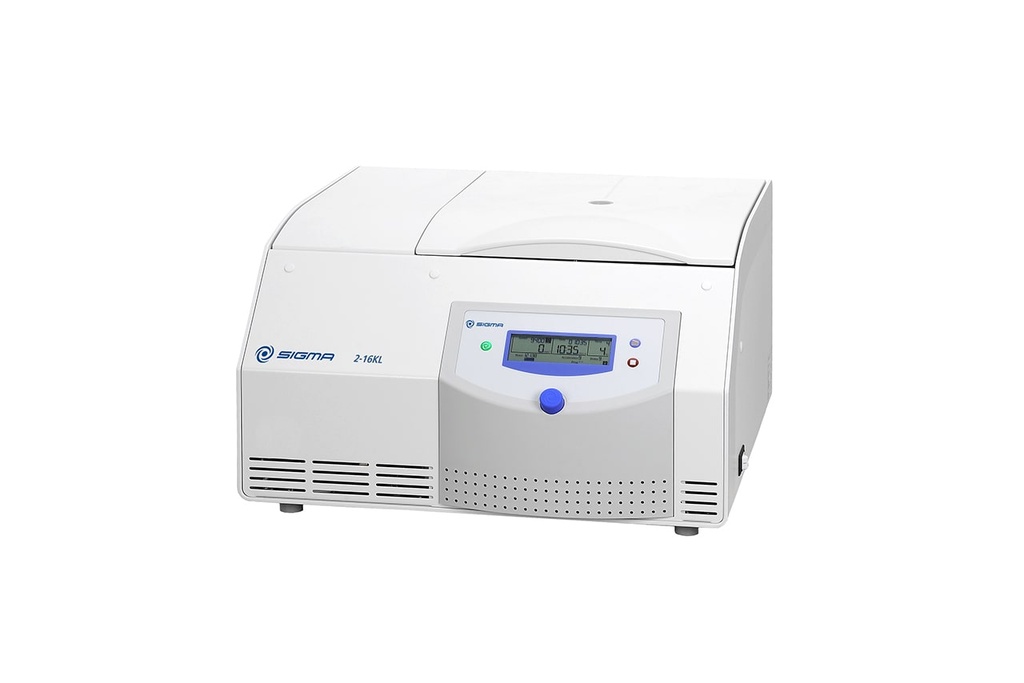

Sigma 2-16KL, refrigerated centrifuge 220-240V, 50/60Hz
Reference: SIG-10350
https://www.analis.com/shop/sig-10350-sigma-2-16kl-refrigerated-centrifuge-220-240v-50-60hz-23708 https://www.analis.com/web/image/product.template/23708/image_1920?unique=689d05dConcentrating on the essentials: Easy operation, all-purpose
The Sigma 2‑16KL is the right answer for virtually every task in everyday lab work. This all-purpose centrifuge is versatile in use and fits in every lab thanks to its compact design. With an extensive range of rotors and accessories and high RCF values up to 21,913 x g, it is suitable for a wide variety of applications.
What makes the Sigma 2‑16KL benchtop centrifuge so attractive

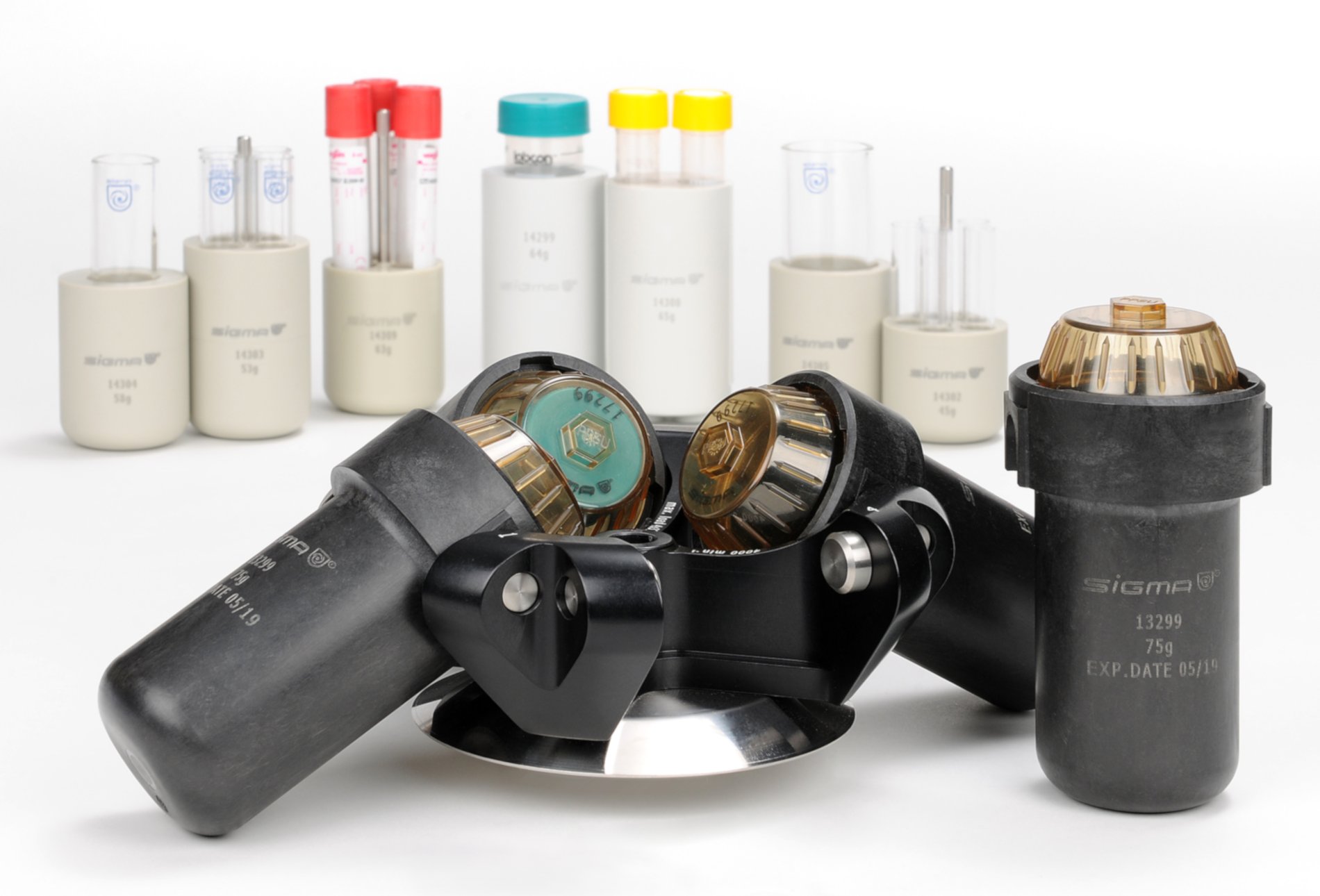

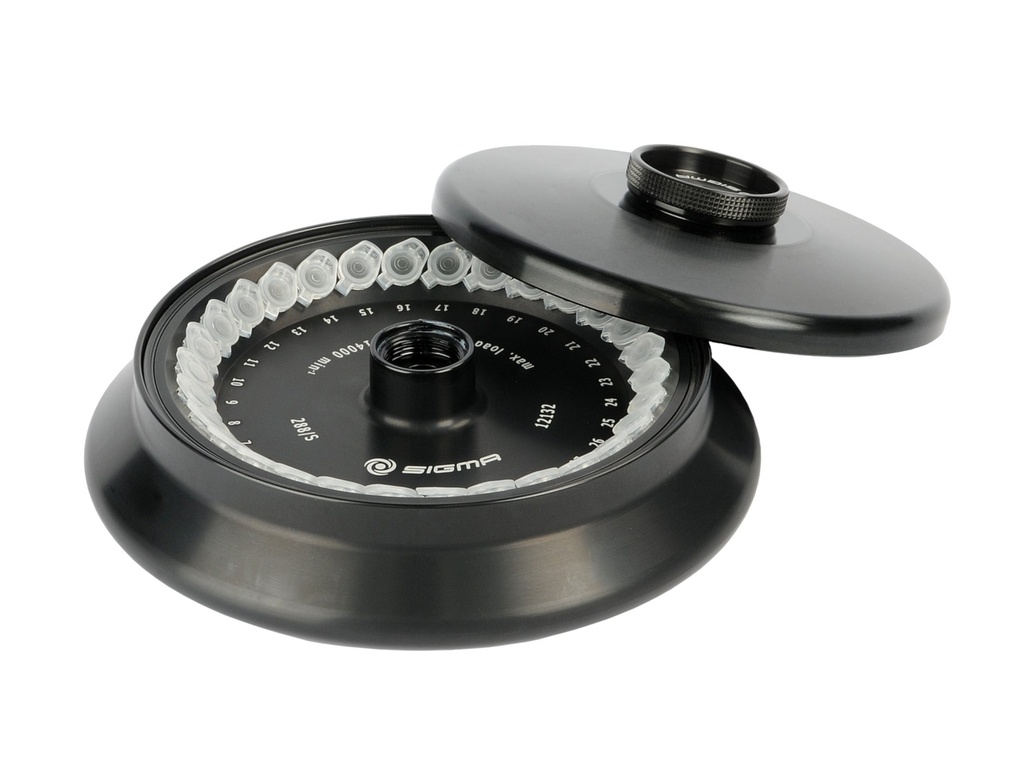

With a wide range of fixed-angle and swing-out rotors, this all-purpose centrifuge can hold PCR tubes, test tubes, round-bottom tubes, culture tubes and microtiter plates. This extensive range is rounded out by a haematocrit rotor.

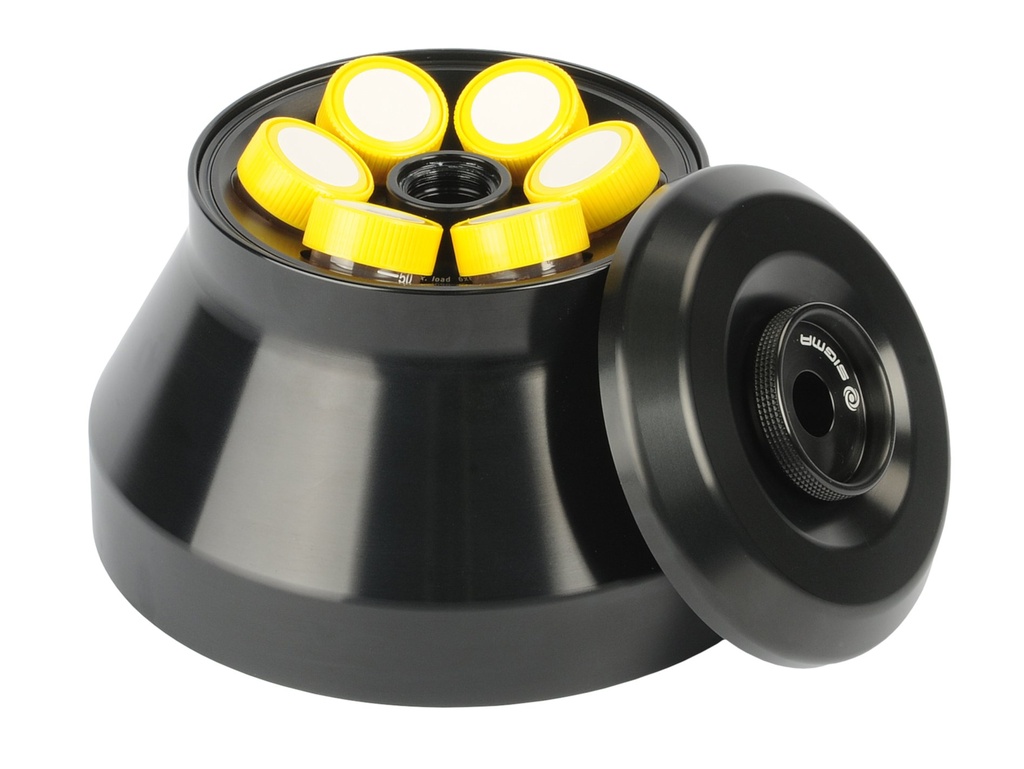

The Sigma 2‑16KL provides extraordinary capacity with 4 x 100 ml in a swing-out rotor or 6 x 50 ml in a fixed-angle rotor.
The Sigma 2‑16KL has a high-performance, precisely adjustable refrigeration system with a temperature range of –10°C to +40°C. The Rapid Temp quick cooling function allows the centrifuge chamber and accessories to be pre-cooled to a defined temperature. This ensures optimal protection of specimens against heating.
Up to 50 different routine protocols can be stored in program memory and easily retrieved. Ten selectable acceleration and braking curves support the optimisation of separation processes.
The Sigma 2‑16KL is also available as the Sigma 2‑16P unrefrigerated centrifuge and the Sigma 2‑16KHL refrigerated and heated centrifuge.

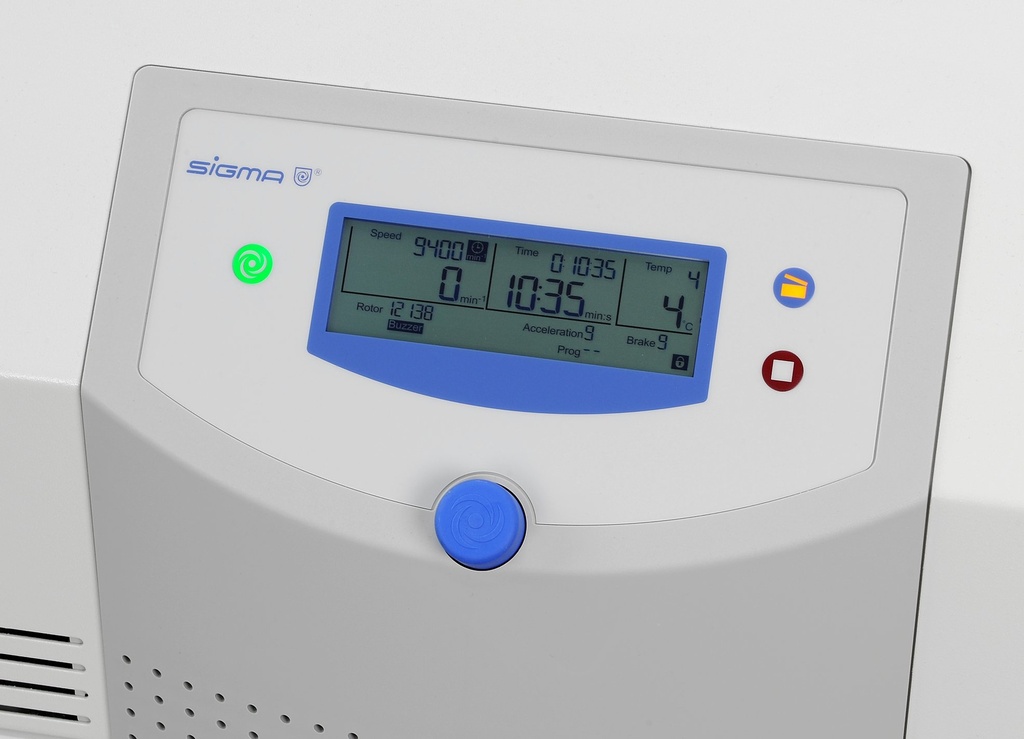

Controller Specifications:
- Programs: 50
- Acceleration curves: 10
- Deceleration curves: 10
- Cycle counting: Yes, for each rotor
Technical information
| Max. capacity [ml] | |
|---|---|
| swing-out rotor | 4 x 100 |
| fixed-angle rotor | 4 x 85 |
| Max. RCF | 21.913 |
| Max. speed [rpm] | 15.300 |
| Min. speed [rpm] | 100 |
| Noise level at maximum speed (approximate) [dB(A)] | |
|---|---|
| fixed-angle rotor 12141 | ≤ 53 |
| swing-out rotor 11170 with bucket 13299 + Cover | ≤ 52 |
| Max. acceleration time [s] | |
| fixed-angle rotor 12141 | 31 |
| swing-out rotor 11170 with bucket 13299 + Cover | 17 |
| Max. braking time [s] | |
| fixed-angle rotor 12141 | 37 |
| swing-out rotor 11170 with bucket 13299 + Cover | 15 |
| Temperature setting range [°C] | -10 – +40 |
|---|---|
| Power consumption [W] | 720 |
| Height x Width x Depth [mm] | 310 x 550 x 570 |
| Height with open lid [mm] | 705 |
| Weight without rotor [kg] | 60 |
| Refrigerant | R134a |
| Charge [kg] / Pressure [bar] | 0,255 / 23 |
| CO2 equivalent [t] | 0,365 |
