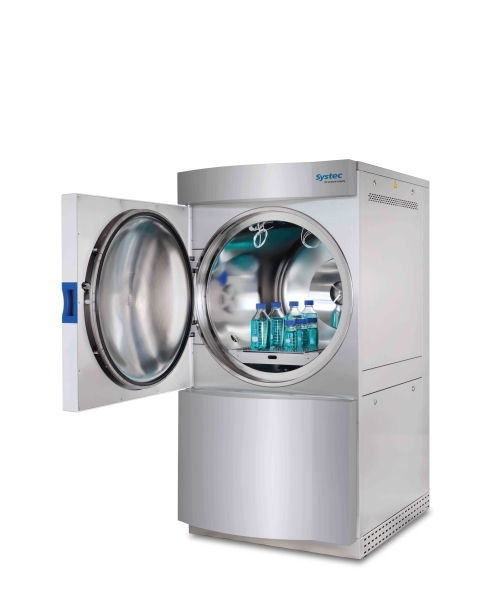

Systec HX-430

Reference: SYS-000-430

• Advanced HMI and PLC with touch-screen control
• Optimized HMI allows quick navigation and customization of processes and settings
• Newly developed autoclave system software (PLC)
• Code-secured access rights for changing parameters and further safety-relevant intervention
• Internal memory capacity for storing minimum 10 years of documentation data
• Timer for programmable start time
• Calculation of F0 value
• Adjustable automatic opening of door at end of program
• Network (Ethernet) and USB ports for external data transfer
• Text input for batch information (up to 20 characters)
• Integrated feature for comprehensive batch documentation, with export as PDF and CSV either on a USB-Stick or into the Ethernet network
• Backup feature allows to backup and restore the complete autoclave software including sterilization programs, individual settings and parameters
• Time synchronization with time server via network or internet
• Integrated steam generator separated from the chamber
• Housing, support frame and pressure chamber, made of corrosion-resistant stainless steel
• The pressure vessel of the autoclave is made of corrosion-resistant stainless steel 1.4404 (AISI 316L) and is electro-polished for ease of cleaning
• Ring-lock system for safe locking of the pressure vessel door
• All connections on the pressure vessel are designed as Tri-Clamp
• Temperature and pressure range up to 140 °C, 4 bar absolute pressure, optionally extendable to 150°C, 5 bar
• Up to 100 sterilization programs, sterilization programs and program list fully customizable
• 2x flexible PT-100 temperature sensors (Class A) in the autoclave chamber
• Additional temperature sensor in condensate exhaust
• Water-cooled waste water exhaust, thermostatically controlled
• Validation port for introducing external measuring equipment

Request more information

Technical information

Outer dimensions :
• Width (mm): 970
• Height (mm): 1870
• Depth (mm):1490
Total chamber volume (liter): 495
Nominal chamber volume (liter): 430
Chamber dimensions, Ø x depth (mm): 740x1000
Heat capacity (kW): 118
Operating temperature (°C): 140
Operating pressure (bar, absolute pressure): 4
Optional 150 °C, 5 bar (absolute pressure)
Please consider the below indications with regards to weight and installation surface. A check of the installation place by a structural engineer regarding the floor load might be needed prior to installation and start-up of the autoclave.
Net weight (kg): 750
Number of feet: 4
