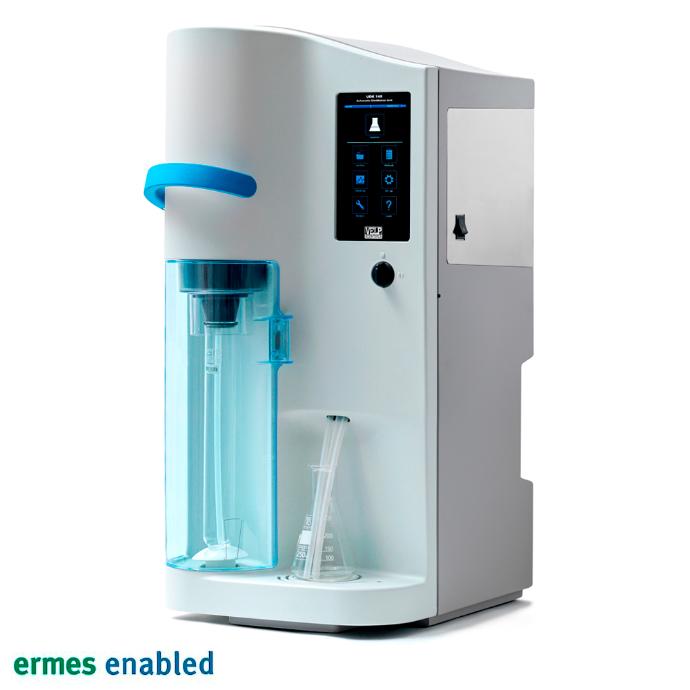

UDK 149 Automatic Kjeldahl Nitrogen Protein Analyzer (potentiometric)

Reference: VEL-F30200145

The UDK 149 is designed for maximum versatility and reproducible results when determining Kjeldahl nitrogen TKN, proteins, ammoniacal nitrogen, nitric nitrogen (Devarda), TVBN, sulfites, phenols, volatile acids, cyanides, and alcohol content.

UDK 149 can be used in combination with several models of external potentiometric titrators for higher sample throughput and direct output of the final result.

Connection to various external titrators for automated processing and efficient operations
Premium result accuracy and precision
Programmable boric acid, water, sodium hydroxide addition
Selectable steam generation output level 10% – 100%
Auto removal of residues from sample tube
Clear and intuitive operations thanks to the Smart User Interface and digital display
Maximum safety for the operator
Unmatched flexibility with a wide accessory range

Illustration bellow showcase the combination of UDK 149 Automatic Kjeldahl Nitrogen Protein Analyzer (Reference: VEL-F30200145) together with TITROLINE 5000 Automatic titrator (Reference: VEL-R30800194):
combination of UDK 149 Automatic Kjeldahl Nitrogen Protein Analyzer (Reference: VEL-F30200145) together with TITROLINE 5000 Automatic titrator (Reference: VEL-R30800194)

Request more information

UDK 149 Automatic Kjeldahl Nitrogen Protein Analyzer (potentiometric)

Technical information

Structure	Corrosion-resistant technopolymer
Display	7" color touch screen
Analysis time	3 minutes for 100 ml of distillate
MEASURING RANGE	0.04 - 220 mg N
Reproducibility (RSD)	≤ 1 %
Recovery	≥ 99.5 %
Detection Limit (LOD)	> 0.015 mg N
Sodium hydroxide addition	Automatic
Water addition	Automatic
Boric acid addition	Automatic
DISTILLATION RESIDUES REMOVAL	Automatic
TITRATION RESIDUES REMOVAL	Automatic
TITRATION VESSEL CLEANING	Automatic
SELECTABLE DISTILLATION TIME	Yes
STEAM FLOW REGULATION	10 - 100 %
DELAY TIME (DEVARDA ALLOY ANALYSIS)	00 sec - 99 min 59 sec
DISTILLATION IN SERIES	Yes
WATER CONSUMPTION	From 0,5 L / min to 15°C From 1 L / min to 30°C
LANGUAGE SELECTION	Yes
PROTOCOL LIBRARY	20 customizable methods
USER MANAGEMENT	Yes
ARCHIVE (ON-BOARD DATA STORAGE)	Yes
CONNECTIVITY	2 x USB (balance, barcode scanner, mouse, printer, pen drive); Ethernet (Pc, Ermes); RS232 (external titrator)
POWER INPUT	2200 W
DIMENSIONS (WxHxD)	385x780x416 mm 15.2x30.7x16.4 in
WEIGHT	27 kg 59.5 lb
ERMES CONNECTION	Yes, via Wi-Fi or LAN
