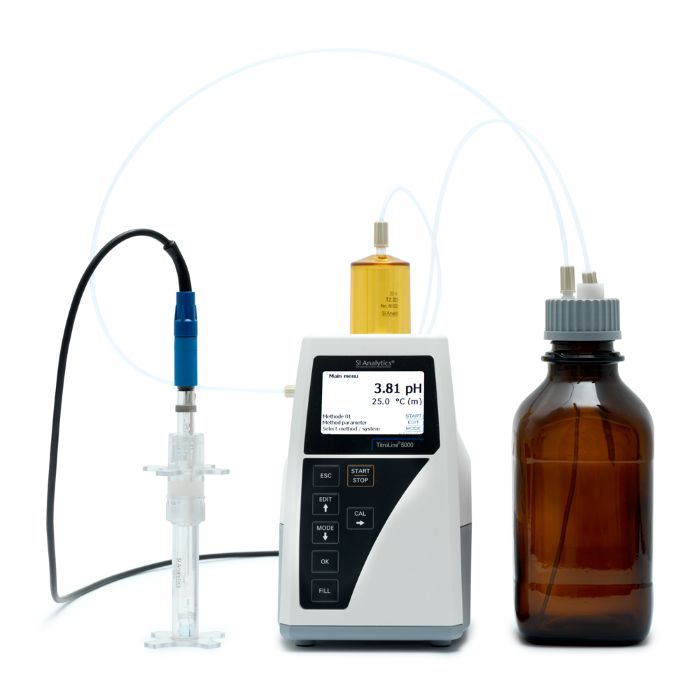

TITROLINE 5000 Automatic titrator

Reference: VEL-R30800194

https://www.analis.com/web/image/product.template/123376/image_1920?unique=689d05d

The TitroLine® 5000 is a very compact titrator for simple routine titrations.

Thanks to the standard methods the creating of methods is no longer required. Just load the method and press the start button. GLP compliant results can be documented on a connected printer or USB-memory stick. Connection to various external titrators for automated processing and efficient operations.

  • Color display that can be easily viewed from a distance and at extreme angles.
  • Export the results as PDF or CSV on USB sticks.
  • Pre-installed standard methods

Following titration modes are possible:

  • Titrations to pH, mV - endpoint (2 EP)
  • Titrations to one equivalence point (pH und mV) with dynamic or linear titration addition
  • Manual titrations with the controller
  • Dosing tasks
  • Number of methods: 5

Typical applications for the TitroLine® 5000 are:

  • Salt content in foodstuffs (cheese, soy sauce, ketchup)
  • pH-value, total acidity in wine and beverages
  • Acid value in bread and bread dough
  • Total nitrogen according to Kjeldahl
  • Chloride in drinking water and other samples
  • pH-value, Alkalinity (p + m-value)
  • FTA/TA („FOS/TAC“)

TitroLine 500 Automatic titrator Includes:

  • 10006572             TITROLINE 5000 230V
  • 10000284             Rod Stirrer  TZ1847
  • 10000285             pH Combination Electrode N61
  • 10000286             Plug Cable Combination K1A
  • 10000287             Stand Rod (145) SA TZ 1510
  • 10000288             PTFE Ground-in NS 14,5 TZ 1520
  • 10000289             Titration Vessel (200) TZ1759
  • A00000211           Connection Kit Schott RS232
  • A00191223           Power supply x Schott mechanical stirrer

    This combination does not exist.

    TITROLINE 5000 Automatic titrator

    Technical information

    Measuring input pH/mV

    pH/mV-input with elektrode socket according to DIN 19262.
    BNC via adapter.
    Reference electrode 1 x 4 mm socket

    Measuring range pH/accuracy

    - 3,0… 17,00 / 0,05 +/- 1 digit

    Measuring range mV/accuracy

    - 1900…1900/ 1,0 +/- 1 digit

    Measuring input temperature

    Connector for Pt 1000 / NTC 30 KOhm (Sockets: 2 × 4 mm)

    Measuring range temperature

    - 30 …115 °C / 0,5 K +/- 1 digit

    Interfaces

    2 × USB (1 USB-A and 1 × USB-B), 2 × RS-232-C

    Dosing units

    20 ml; 50ml also usable

    Resolution (steps)

    8000 steps

    Dosing accuracy

    according to DIN ISO 8655, part 3:
    accuracy: < 0.15 %
    precision: < 0.05 %

    Display

    3.5 inches - 1/4 VGA TFT graphic color display with 320 x 240 pixels

    Housing material

    Polypropylene

    Dimensions

    135 x 310 x 205 mm (W x H x D), height with dosing unit, without stirrer

    Front keyboard

    Polyester

    Material dosing unit/valve

    Valve: PTFE/ETFE;
    Cylinder: borosilikate glass 3.3 (DURAN®)
    Hoses:  (FEP, blue)
    UV Cover: Ultem

    Weight

    2 kg

    Ambient conditions

    Ambient temperature: + 10 ... + 40 °C for operation and storage Humidity according to EN 61 010, Part 1: max. relative humidity 80 % for temperatures up to 31 °C, linear decrease down to 50 % relative humidity at a temperature of 40 °C

    Power supply

    100-240 V; 50/60 Hz,
    power input: 30 VA

    CE-sign

    EMC compatibility according to the Council Directive: 2004/108/EG; applied harmonized standards: EN 61326-1:2006
    Low-voltage directive according to the Council Directive 2006/95/EG Testing basis EN 61 010, part 1
