  1. Analytical chemistry Kjeldahl analysis
  2. DKL 42/26 Automatic Digestion Unit
Share
VELP

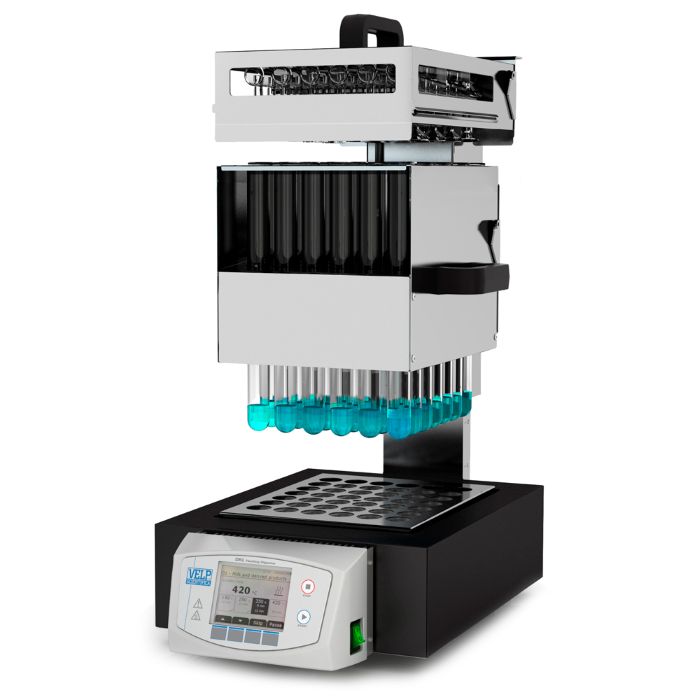

DKL 42/26 Automatic Digestion Unit

Reference: VEL-S30100180

https://www.analis.com/web/image/product.template/123390/image_1920?unique=689d05d

DKL digesters are fully automatic and immediately ready to use, as they consist of an aluminium heating block, a lift for automatic sample handling, suction hood, test tubes, test tube rack and drip tray. DKL 42/26 allows automated digestion with 42 positions for 100 ml test tubes, Ø 26 mm

The DKL series provides the operator with the ultimate technology that allows the laboratory technician to set up the analysis choosing from a library of 54 programs (30 pre-installed + 24 customizable), press START and walk away, boosting the lab productivity.

Ease of loading and unloading make the VELP DKL a pleasure to use when carrying out Kjeldahl analysis, and there is no need to handle the sample when the tubes are hot!

For applications where the digestion process produces fumes, acid gases or corrosive substances, the below specific accessory is strongly recommended:

  • KS 1000 Scrubber neutralizes all the fumes

    This combination does not exist.

    DKL 42/26 Automatic Digestion Unit

    Technical information

    Construction material:

    Stainless steel with chemical resistant coating

    Lift and suction cap control

    Automatic

    Control system

    Microprocessor with LCD graphic display

    Temperature range:

    Ambient to 450 °C / 842 °F

    Stability of the heating block temperature:

    ± 0,5 °C

    Precision of the heating block temperature:

    ± 0,5 °C

    Set temperature:

    Digital readout in °C or °F

    Temperature Calibration:

    Automatic

    Program library

    54 Program library, including 24 user-programmable memories

    Selectable ramps:

    up to 4 per program

    Digestion time range:

    1 to 999 minutes

    Time selection:

    1-minute steps

    Countdown:

    Digital readout

    Selectable language:

    UK, I, E, F, RUS, CN + Additional downloadable

    Interface

    USB to update SW

    Heating Places

    42-position

    Size of tubes

    100 ml test tubes (Ø 26 mm)

    Power:

    2300 W

    Dimensions (WxHxD):

    322x690x584 mm (12.7x27.2x23.0 in)

    Weight:

    33.5 kg (74.0 lb)

    Safety

    Overtemperature

    Thermostat

    Damaged temperature probe

    Automatic detection and alarm message

    Lift movement

    Visual/acustic signal

    Hot surface

    Visual signal if T>50°C


    Related documents

    DOCUMENT NAME

    RELEASE DATE

    DOWNLOAD

    VELP-Brochure-Digestion DKL series
    23 / 12 / 2024
    Download icon Download

    Related accessories, consumables & products

    KS 1000 Scrubber
    VELP

    KS 1000 Scrubber

    Reference : VEL-F307A0660

    The KS 1000 Scrubber is engineered to safeguard the laboratory environment and the health of the operators by eliminating exposure to harmful acid fumes produced during the Kjeldahl digestion or other processes.

    The KS 1000 Scrubber effectively neutralizes corrosive and toxic gases in 2 steps:

    • Dilution: in the right tank, reaction gases flow into a water solution, where they are effectively dissolved. This step allows for trapping even part of the sulfur dioxide produced during digestion.
    • Neutralization: in the left glass tank, reaction gases are neutralized in a sodium hydroxide solution. Thanks to a wide contact surface between gas and liquid, the KS 1000 Scrubber achieves maximum neutralization efficiency.

    In specific applications, an optional activated carbon filter can be used to absorb odors produced during oxidative mineralization.
