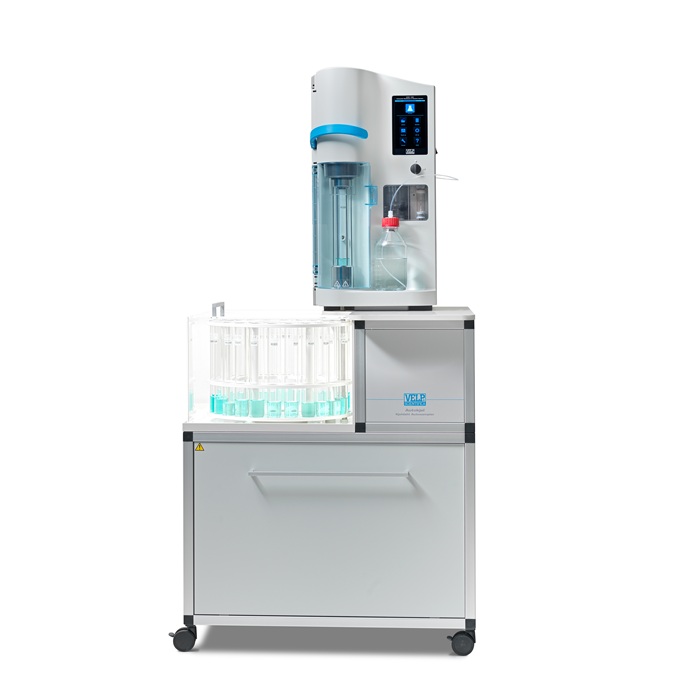

UDK 169 with AutoKjel Autosampler - Automatic Kjeldahl Nitrogen Protein Analyzer

Reference: VEL-S30200165

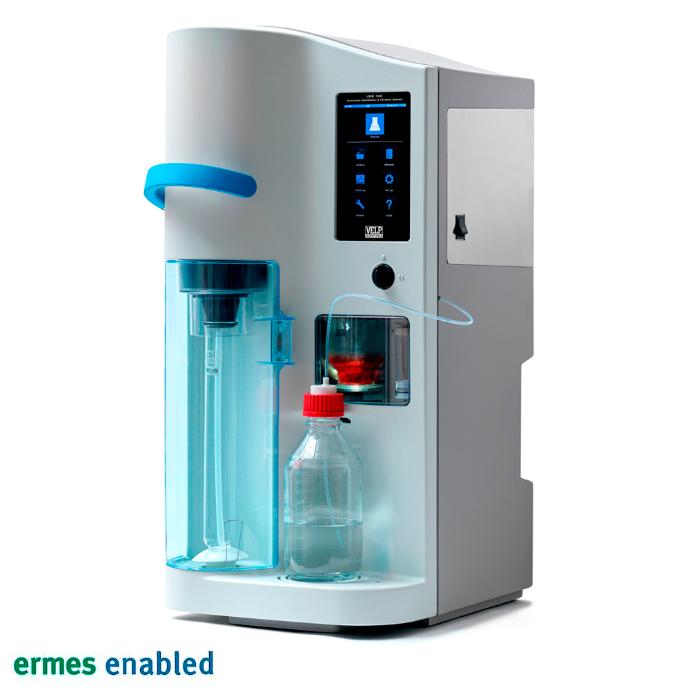

The UDK 169 is designed for high-throughput laboratories looking for precise and reproducible results of Kjeldahl nitrogen TKN, proteins, ammoniacal nitrogen, nitric nitrogen (Devarda), TVBN, sulfites, phenols, volatile acids, cyanides, and alcohol content.

UDK 169 can be used in combination with the AutoKjel autosampler, for a highly productive system capable of autonomously processing sample tubes, which are fed directly into the fully automatic distillation and titration unit.

The fully automatic process ensures efficient operations, distillation and titration performed simultaneously
Shortest time-to-results with online titration and automatic results calculation
Premium result accuracy and precision thanks to the integrated colorimetric titrator with high precision burette
Programmable boric acid, water, sodium hydroxide addition
Selectable steam generation output level 10% – 100%
Auto removal of residues from titrator & sample tube
Clear and intuitive operations thanks to the Smart User Interface and digital display
Maximum safety for the operator
Unmatched flexibility with the autosampler and a wide accessory range

Request more information

UDK 169 with AutoKjel Autosampler - Automatic Kjeldahl Nitrogen Protein Analyzer

Technical information

Structure	Corrosion-resistant technopolymer
Display	7" color touch screen
TITRATION GRAPH	Yes
Analysis time	From 4 minutes (including titration)
MEASURING RANGE	0.04 - 220 mg N
Reproducibility (RSD)	≤ 1 %
Recovery	≥ 99.5 %
Detection Limit (LOD)	> 0.015 mg N
Sodium hydroxide addition	Automatic
Water addition	Automatic
Boric acid addition	Automatic
DISTILLATION RESIDUES REMOVAL	Automatic
TITRATION RESIDUES REMOVAL	Automatic
TITRATION VESSEL CLEANING	Automatic
STEAM FLOW REGULATION	10 - 100 %
DELAY TIME (DEVARDA ALLOY ANALYSIS)	00 sec - 99 min 59 sec
DISTILLATION IN SERIES	Yes
WATER CONSUMPTION	From 0,5 L / min to 15°C From 1 L / min to 30°C
LANGUAGE SELECTION	Yes
PROTOCOL LIBRARY	32 standard methods + 24 customizable
USER MANAGEMENT	Yes
ARCHIVE (ON-BOARD DATA STORAGE)	Yes
21 CFR PART 11 COMPLIANCE	Yes, accessory
CONNECTIVITY	2 x USB (balance, barcode scanner, mouse, printer, pen drive); Ethernet (Pc, Ermes); RS232 (Autosampler)
POWER INPUT	2300 W
DIMENSIONS (WxHxD)	385x780x416 mm 15.2x30.7x16.4 in
WEIGHT	31 kg 68.3 lb
ERMES CONNECTION	Yes, via Wi-Fi or LAN

UDK 169 & AutoKjel

Autosampler capacity	24-pos. carousel, 250 ml test tubes (included with AutoKjel) 21-pos. carousel, 400 ml test tubes (optional)
Power	2250 W
Dimensions (WxHxD)	830x1730x640 mm 32.7x68.1x25.2 in
Weight	131 kg 288.8 lb
