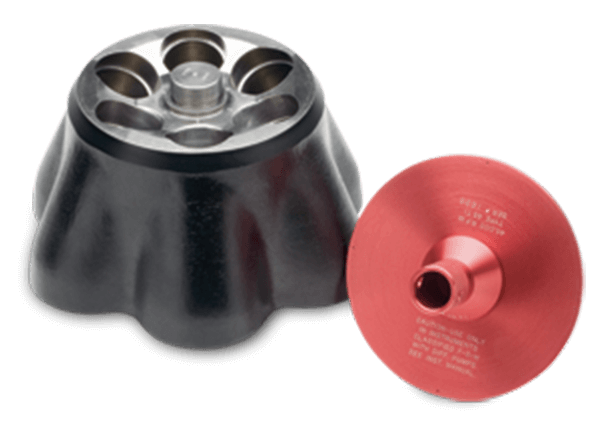

Type 45 Ti Fixed-Angle Rotor Assembly 45,000 rpm, 235,000 g, 6 x 100 mL

Reference: BEC-339160

https://www.analis.com/web/image/product.template/979/image_1920?unique=689d05d

This ultracentrifuge rotor is for use in instruments classified H R S.
Note: This rotor cannot be used in 40,000 rpm F or H instruments or the L5-50E unless the instruments have been upgraded with a diffusion pump and vacuum indicator.

Major applications: differential centrifugation of large volumes of subcellular fractions and viruses.


Assembly Includes:
3 each 854519 O-rings (small),
3 each 878260 O-ring (large),
and 2 each 335458 Overspeed Disks.

    This combination does not exist.

    Type 45 Ti Fixed-Angle Rotor Assembly 45,000 rpm, 235,000 g, 6 x 100 mL

    Technical information

    Max RPM: 45,000
    Max RCF: 235,000 x g
    k Factor: 133
    Tube Number / Volume: 6 x 94 mL
    Size / Dimensions: 38 x 102 mm
    Rotor Capacity: 564 mL

    Related accessories, consumables & products

    Optima XPN-80, preparative ultracentrifuge
    BECKMAN COULTER LIFE SCIENCES

    Optima XPN-80, preparative ultracentrifuge

    Reference : BEC-A95765

    The Optima™ XPN is the premier ultracentrifuge. With networking capability and customizable security and tracking features to ensure chain of custody and compliance, the Optima XPN offers multi-layered BioSafety* features for a safe and productive work environment.
    -Equipped with the innovative eXpert simulation software
    -Available in 100k, 90k, and 80k RPM configurations
    -Compatible with extensive rotor and labware options
    -Backed by unparalleled service program options

    Features :
    Optimize protocols before running
    Quickly perform common calculations and conversions with proprietary software to optimize protocols, save time, and save samples.
    Receive diagnostic alerts via email
    Remote monitoring and control enables you to start, stop, and monitor from your computer, smart phone, or tablet.
    Track detail usage history
    Security and tracking features manage your rotor life by serial number. Password protection and electronic signatures help you maintain chain of custody and compliance.
    Enhanced Safety
    Dynamic Rotor Inertia Check (DRIC)
    Rotor overspeed disc
    Real and simulated testing
    BioSafe optional dual PALL® Pharmaceutical Grade Sterilizing Filters
