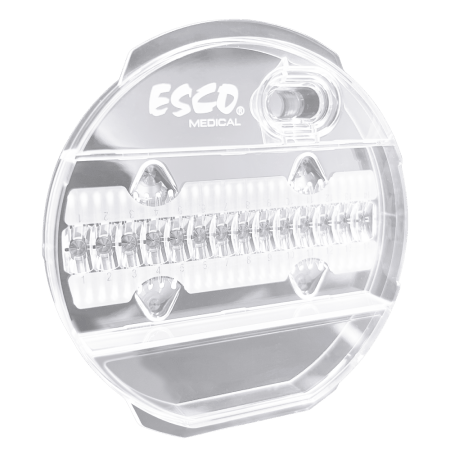

CultureCoin® for MIRI® TL, 14 embryos per culture coin (per pack of 25)

Reference: ESC-1320088

https://www.analis.com/web/image/product.template/8586/image_1920?unique=04c792b

One MIRI® TL chamber holds one CultureCoin®. Each dish holds up to 14 embryos, each in a numbered well. The MIRI® TL6 holds up to 84 embryos and the MIRI® TL12 up to 168.


CultureCoin®, a culture dish designed exclusively for the MIRI® TL


Key Features


  • Each embryo is cultured in its own stable environment.
  • Ergonomic design for easy, safe and secure handling of embryos.
  • Independent well for pH measurements.
  • Corona plasma-treated surface for effective prevention of bubble formation.
  • Gamma-sterilized.


    This combination does not exist.

    CultureCoin® for MIRI® TL, 14 embryos per culture coin (per pack of 25)

    Technical information

    Overall dimensions ⌀ 71 x 10 mm
    Weight empty 0.5 gram
    Material Polystyrene
    Temperature range 25 ‐ 40 °C
    CO2 range 1.9 ‐ 10%
    O2 range 2.0 ‐ 4.9%
    Sterilization method Gamma beam
    Lifetime 2 years
    Toxicity tested Embryo toxicity tested with thawed 1 cell mouse embryos. Expanded Blastocyst rate on the culture dish after 96 hours > 80 % (n=150)0.6 bar (8.70 PSI)

    [Information updated December2023]

    Related accessories, consumables & products

    MIRI® TL-6 Time-Lapse Mini Benchtop Incubator, 6 Chambers, 230V 50/60Hz
    ESCO LIFE SCIENCES

    MIRI® TL-6 Time-Lapse Mini Benchtop Incubator, 6 Chambers, 230V 50/60Hz

    Reference : ESC-2070091

    The MIRI® Time-Lapse Incubator is a multiroom incubator with a built-in camera and microscope. Designed and made in the EU, it delivers high-quality real-time time-lapse images of developing embryos, without removing them from the safety of the incubation chamber for manual microscopy. Time-lapse monitoring provides detailed morphokinetic data throughout development, which routine spot microscopy cannot. It captures all key events, helping IVF labs identify healthy embryos with the highest implantation potential and supporting higher pregnancy rates.


    FEATURES:

    Completely independent chambers

    6 (TL6) or 12 (TL12) independent chambers with precise temperature and gas control: opening one chamber does not affect the others.


    Time-lapse monitoring

    Time-lapse video built from images allows objective, reliable scoring and annotation of embryos, for better prediction of development and implantation potential.


    Heated lid

    Strong uniformity between top and bottom. Heated chamber lids prevent condensation, improve temperature regulation and recovery, and keep temperature uniform between the top and bottom of the chamber.


    Fast temperature and gas recovery

    • Temperature recovery < 1 min
    • Gas recovery < 3 mins


    Superior gas system

    • A built-in tri-gas mixer, an advanced gas regulation system and HEPA-VOC filtered recirculation allow precise gas control and lower gas consumption.
    • UV sterilization of the recirculating gas ensures the biological safety of the embryos.


    Easy external gas and temperature validation

    Gas sampling ports for each chamber and independent PT-1000 sensors allow external quality evaluation of gas levels and temperature in each chamber.


    User friendly interface

    Touchscreen control panel with an intuitive menu to manage the device configuration.


    The CultureCoin

    The specially designed CultureCoin dish lets each chamber culture 14 embryos — a total of 84 for the TL6 and 168 for the TL12.


    MIRI® TL Data Logger

    Continuously monitors and records gas flow, gas concentration and pressure, and temperature regulation.


    Continuous pH monitoring

    Optional SAFE Sens integration for continuous pH monitoring without opening the chamber.


    MIRI® TL Viewer software and MIRI® TL Data Server

    • Greatly increase image and data storage capacity by adding the MIRI® TL Data Server.
    • Add the MIRI® TL Viewer software platform to review, annotate and compare embryo morphokinetics and export data for retrospective analysis.

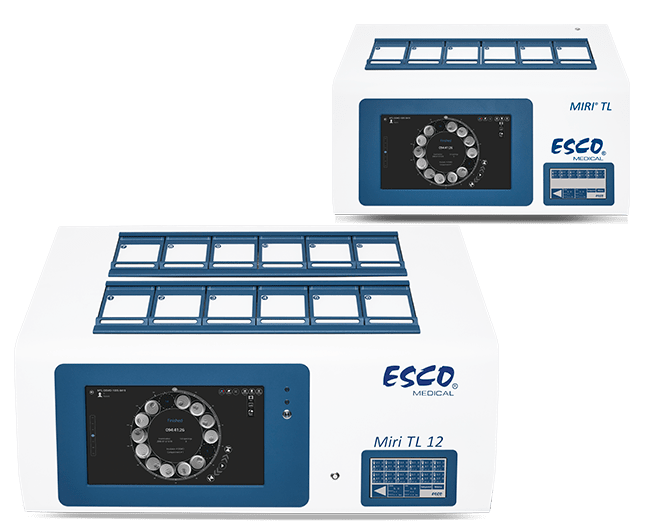

    MIRI® TL-12 Time-Lapse Mini Benchtop Incubator, 12 Chambers, 230V 50/60Hz
    ESCO LIFE SCIENCES

    MIRI® TL-12 Time-Lapse Mini Benchtop Incubator, 12 Chambers, 230V 50/60Hz

    Reference : ESC-2070100

    The MIRI® Time-Lapse Incubator is a multiroom incubator with a built-in camera and microscope. Designed and made in the EU, it delivers high-quality real-time time-lapse images of developing embryos, without removing them from the safety of the incubation chamber for manual microscopy. Time-lapse monitoring provides detailed morphokinetic data throughout development, which routine spot microscopy cannot. It captures all key events, helping IVF labs identify healthy embryos with the highest implantation potential and supporting higher pregnancy rates.


    FEATURES:

    Completely independent chambers

    6 (TL6) or 12 (TL12) independent chambers with precise temperature and gas control:

    Opening one chamber does not affect the others.


    Time-lapse monitoring

    Time-lapse video built from images allows objective, reliable scoring and annotation of embryos, for better prediction of development and implantation potential.


    Heated lid

    Strong uniformity between top and bottom. Heated chamber lids prevent condensation, improve temperature regulation and recovery, and keep temperature uniform between the top and bottom of the chamber.


    Fast temperature and gas recovery

    • Temperature recovery < 1 min
    • Gas recovery < 3 mins


    Superior gas system

    • A built-in tri-gas mixer, an advanced gas regulation system and HEPA-VOC filtered recirculation allow precise gas control and lower gas consumption.
    • UV sterilization of the recirculating gas ensures the biological safety of the embryos.


    Easy external gas and temperature validation

    Gas sampling ports for each chamber and independent PT-1000 sensors allow external quality evaluation of gas levels and temperature in each chamber.


    User friendly interface

    Touchscreen control panel with an intuitive menu to manage the device configuration.


    The CultureCoin

    The specially designed CultureCoin dish lets each chamber culture 14 embryos — a total of 84 for the TL6 and 168 for the TL12.


    MIRI® TL Data Logger

    Continuously monitors and records gas flow, gas concentration and pressure, and temperature regulation.


    Continuous pH monitoring

    Optional SAFE Sens integration for continuous pH monitoring without opening the chamber.


    MIRI® TL Viewer software and MIRI® TL Data Server

    • Greatly increase image and data storage capacity by adding the MIRI® TL Data Server.
    • Add the MIRI® TL Viewer software platform to review, annotate and compare embryo morphokinetics and export data for retrospective analysis.
