ESCO LIFE SCIENCES

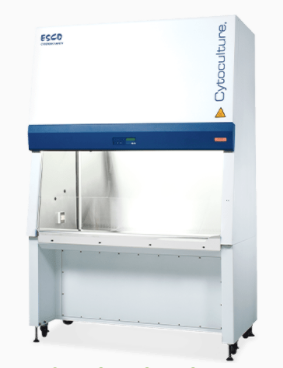

CYT-6A1 Cytoculture® Cytotoxic Safety Cabinet, 1.8m

Reference: ESC-2060010

Esco’s Cytoculture® Cytotoxic Safety Cabinet is the premium solution for cytotoxic/antineoplastic drug processing; providing the highest level of patient, pharmacist, and environmental protection. This revolutionary product builds on Esco’s experience of more than 20 years as a global leader in biological safety containment technology.

The unique demands of handling and preparing cytotoxic drugs for use in chemotherapy require a specialized cabinet. With this in mind, Esco has developed a highly specialized cabinet designed especially for the preparation of these potentially dangerous drugs.

Key Benefits:

Safe filter changing
Safer dual exhaust filters
HEPA certified to EN 12469

Request more information

CYT-6A1 Cytoculture® Cytotoxic Safety Cabinet, 1.8m

Technical information

Section	Specifications
A. General Construction
External Dimensions (W x D x H)	2030 x 846 x 2190 mm (79.9” x 33.3” x 86.2”)
Internal Work Area (W x D x H)	1870 x 620 x 670 mm (73.6” x 24.4” x 26.4”)
Usable Work Area	0.90 m² (9.7 sq. ft.)
Tested Opening	203 mm (8.0”)
Maximum Sash Opening	440 mm (17.3”)
Material	Main Body: Electrogalvanized steel with white oven-baked epoxy polyester ISOCIDE™ antimicrobial powder-coated finish Work Zone: 1.5 mm (0.06”) 16-gauge stainless steel Type 304 with No.4 finish Side Walls: 1.5 mm (0.06”) 16-gauge stainless steel Type 304 with No.4 finish
Weight	500 Kg (1102 lbs)
B. Blower and Filtration
Blower	Direct drive, permanently lubricated centrifugal blower/motor, dynamically balanced in two planes compliant with ISO 2710 for low noise, low vibration, and long filter life.
Filtration	Tri-filter system: Supply downflow filter and two exhaust filters Downflow and exhaust ULPA filters: ULPA-type as per IEST-RP-CC001.3 or H14 as per EN12469 One exhaust filter: V-bank design HEPA-type as per IEST-RP-CC001.3 or H14 as per EN12469
Airflow Velocity (Inflow)	0.45 m/s (90 fpm)
Air Quality	ISO 14644-1 Class 3
C. Control Panel and Electrical
Controller	Sentinel™ Silver Microprocessor Controller Soft touch keys for Blower, Light, and UV lamp with LED light UV timer Audible and visual alarms
Electrical Requirements	Power Rating: 220-240 VAC, 60 Hz, 1 phase Nominal Power Consumption: 778 W Heat Dissipation: 2655 BTU/hr
Lighting	Fluorescent lamp intensity: >1000 Lux (>93 foot candles) Optional UV Lamp
D. Ergonomics
Serviceability	Easy-to-service with all electrical components located at the back of the front panel
Sash	Frameless, motorized sash with microprocessor-controlled movement
Control Panel Location	Centered and angled-down location
Noise Emission	Low noise level of 63 dBA
Arm Rest	Angled arm rest for comfortable working position
Work Area Corners	Easy-to-clean coved corners and smoothly finished corners
Knee Space	245 mm (9.6”) for sitting position
E. Accessories
Additional Features	Anti-Blowback Valve Carbon Filter Option (alternative to V-shaped HEPA filter) Thimble Exhaust Collar (10 inches in diameter) UV Lamp IV Bar Electrical outlet Service fixtures
