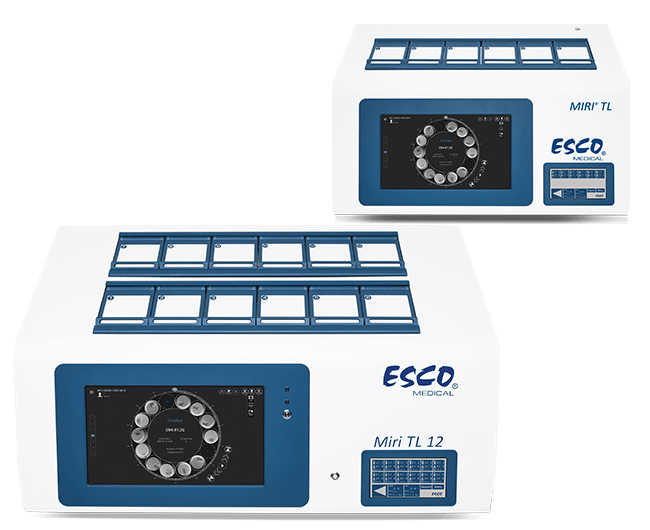

MIRI® TL-6 Time-Lapse Mini Benchtop Incubator, 6 Chambers, 230V 50/60Hz
Reference: ESC-2070091
https://www.analis.com/shop/esc-2070091-miri-r-tl-6-time-lapse-mini-benchtop-incubator-6-chambers-230v-50-60hz-9009 https://www.analis.com/web/image/product.template/9009/image_1920?unique=310188fThe MIRI® Time-Lapse Incubator is a multiroom incubator with a built-in camera and microscope. Designed and made in the EU, it delivers high-quality real-time time-lapse images of developing embryos, without removing them from the safety of the incubation chamber for manual microscopy. Time-lapse monitoring provides detailed morphokinetic data throughout development, which routine spot microscopy cannot. It captures all key events, helping IVF labs identify healthy embryos with the highest implantation potential and supporting higher pregnancy rates.
FEATURES:
Completely independent chambers
6 (TL6) or 12 (TL12) independent chambers with precise temperature and gas control: opening one chamber does not affect the others.
Time-lapse monitoring
Time-lapse video built from images allows objective, reliable scoring and annotation of embryos, for better prediction of development and implantation potential.
Heated lid
Strong uniformity between top and bottom. Heated chamber lids prevent condensation, improve temperature regulation and recovery, and keep temperature uniform between the top and bottom of the chamber.
Fast temperature and gas recovery
- Temperature recovery < 1 min
- Gas recovery < 3 mins
Superior gas system

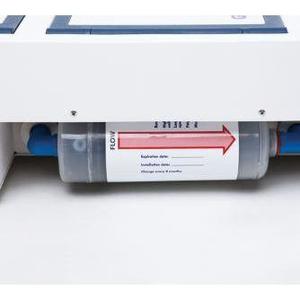

- A built-in tri-gas mixer, an advanced gas regulation system and HEPA-VOC filtered recirculation allow precise gas control and lower gas consumption.
- UV sterilization of the recirculating gas ensures the biological safety of the embryos.
Easy external gas and temperature validation
Gas sampling ports for each chamber and independent PT-1000 sensors allow external quality evaluation of gas levels and temperature in each chamber.
User friendly interface
Touchscreen control panel with an intuitive menu to manage the device configuration.

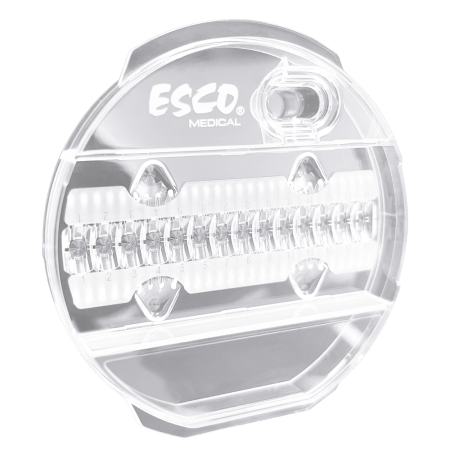

The CultureCoin
The specially designed CultureCoin dish lets each chamber culture 14 embryos — a total of 84 for the TL6 and 168 for the TL12.
MIRI® TL Data Logger
Continuously monitors and records gas flow, gas concentration and pressure, and temperature regulation.
Continuous pH monitoring
Optional SAFE Sens integration for continuous pH monitoring without opening the chamber.
MIRI® TL Viewer software and MIRI® TL Data Server
- Greatly increase image and data storage capacity by adding the MIRI® TL Data Server.
- Add the MIRI® TL Viewer software platform to review, annotate and compare embryo morphokinetics and export data for retrospective analysis.
Technical information
Specifications TL6
Overall Dimensions 805 x 590 x 375 mm
Compartment Dimensions 120 x 90 x 26 mm
Weight 70 kg
Temperature Control Range 28.7 - 41.0 °C
Power Consumption 330 W
* CO2 Gas Consumption < 2 L/h
**N2 Gas Consumption < 5 L/h
CO2 Control Range 2.9% - 9.9% O2
Control Range 2.0% - 20.0%
Input Gas Pressure 0.6 bar (8.7 psi)
Built-in Microscope Zeiss 20x, objective has
numerical aperture of 0.35, specialized for 635 nm illumination
Embryo Illumination 0.064s per image, using 1W single
red LED (635nm)
Camera Resolution 1920 x 1200. Monochrome, 12-bit,
IDS system
Optics Tube Ratio 2.22 px/µm
Imaging Focal Planes 5 min. image interval in 3 to 7
focal planes
Number of pixels in stored image 670 x 670
* Under normal condition (CO2 set point reached at 6.0%, all lids closed).
** Under normal condition (O2 set point reached at 5.0%, all lids closed).
Last data Edition (31/05/2023)
