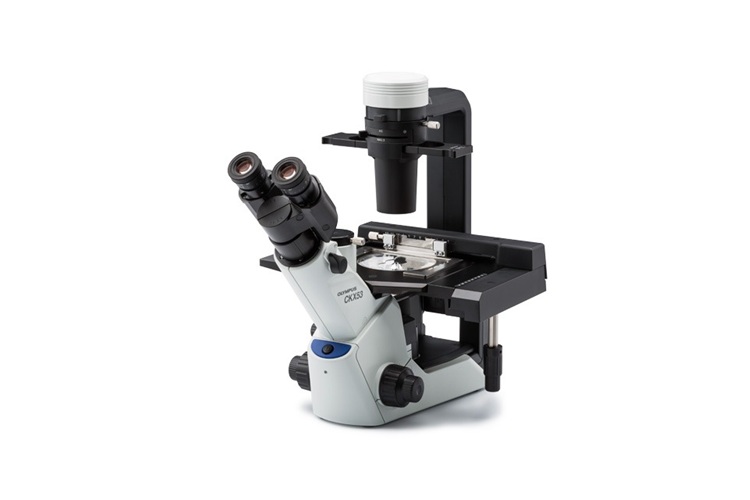

CKX53 Compact Cell Culture Microscope
Reference: EVI-CKX53
https://www.analis.com/shop/evi-ckx53-ckx53-compact-cell-culture-microscope-129844 https://www.analis.com/web/image/product.template/129844/image_1920?unique=689d05dCompact inverted microscope for efficient cell culture workflow and live cell observation.
The Olympus / Evident CKX53 is designed to optimize usability and image quality in tissue culture labs.
- Precentered phase contrast and inversion contrast (IVC) for clear 3D-like images
- Integrated fluorescence slider (3-position) for basic fluorescence work

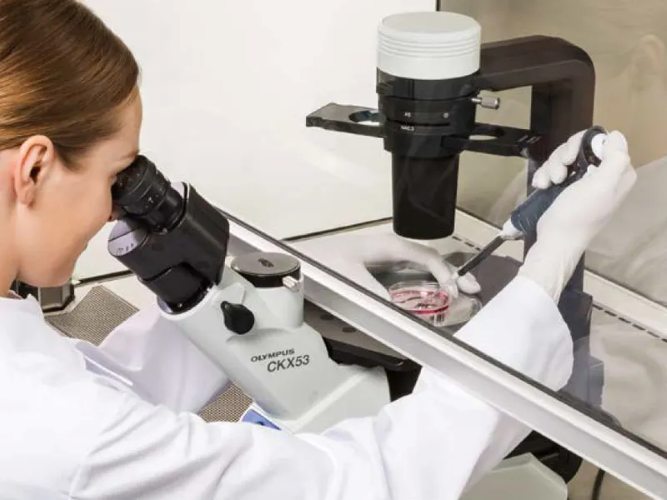

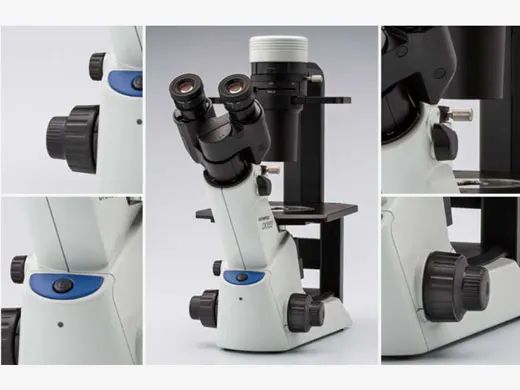

- Compact, ergonomic frame saves bench space and supports rapid cell checks

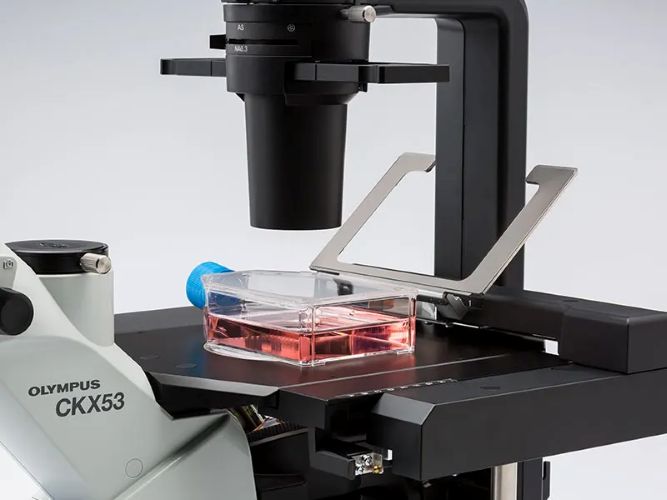

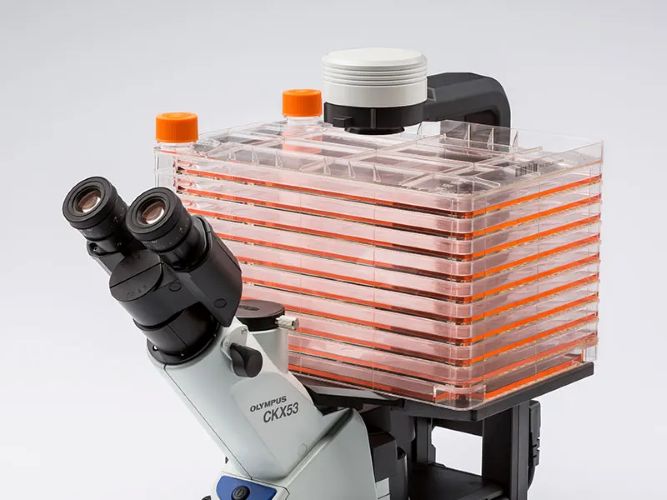

- Detachable condenser enables viewing of tall flasks up to 190 mm

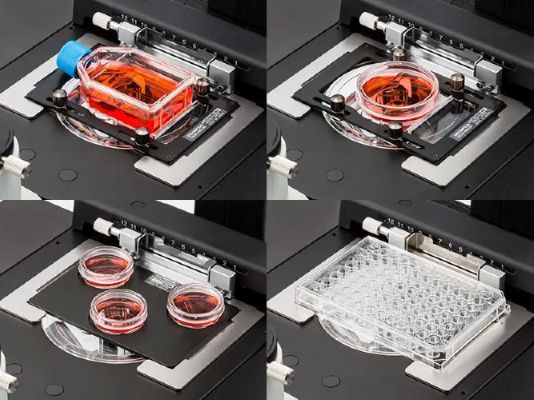

- Accommodates a wide range of cell culture containers
A reliable tool for everyday cell culture. Analis can help adapt it to your specific workflow.
?unique=8bcb2e4)
?unique=8bcb2e4)
?unique=8bcb2e4)
?unique=8bcb2e4)
Technical information
| Feature | Specification |
| Optical System | UIS2 (Universal Infinity-Corrected) optical system |
| Observation Methods | Brightfield, Integrated Phase Contrast (iPC), Inversion Contrast (IVC), Fluorescence (Blue/Green excitation, UV excitation) |
| Illumination | Transmitted LED (4000K, 20,000-hour lifespan); Fluorescence: supports 100W mercury lamp (U-LH100HG), 130W high-pressure mercury lamp (U-HGLGPS), and third-party LEDs |
| Condenser | Built-in ultra-long working distance condenser; NA 0.3; Working Distance: 72 mm; Removable for accommodating containers up to 190 mm in height |
| Nosepiece | Fixed 4-position nosepiece |
| Focusing Mechanism | Coarse and fine focusing; Total stroke: 20 mm; Fine focus precision: 0.3 mm/rotation |
| Stage Dimensions | 200 mm (W) × 252 mm (D); Exchangeable transparent insert plate included |
| Stage Options | Optional mechanical stage with XY coaxial knobs; Stage stroke: X = 110 mm, Y = 74 mm; Compatible with various holders for dishes, slides, and microplates |
| Eyepieces | 10×/22 mm wide-field eyepieces; Fixed trinocular tube inclined at 45°; Interpupillary distance: 48–75 mm |
| Dimensions (W×D×H) | 200 mm × 498 mm × 454 mm (Phase contrast entry configuration) |
| Weight | Approximately 6.9 kg |

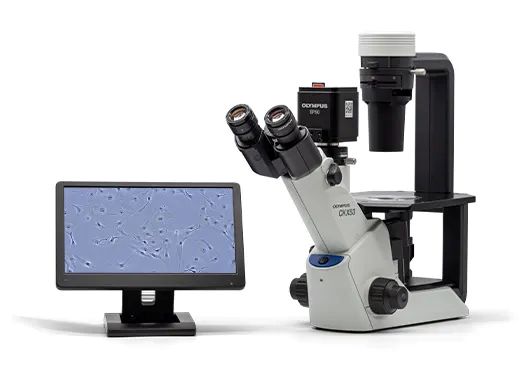

| Camera Compatibility | Standard C-mount camera port; Compatible with Olympus DP23M and other C-mount cameras |
Download brochure to see more.👇
Make contact with a local expert to help you find the most appropriate configuration.
