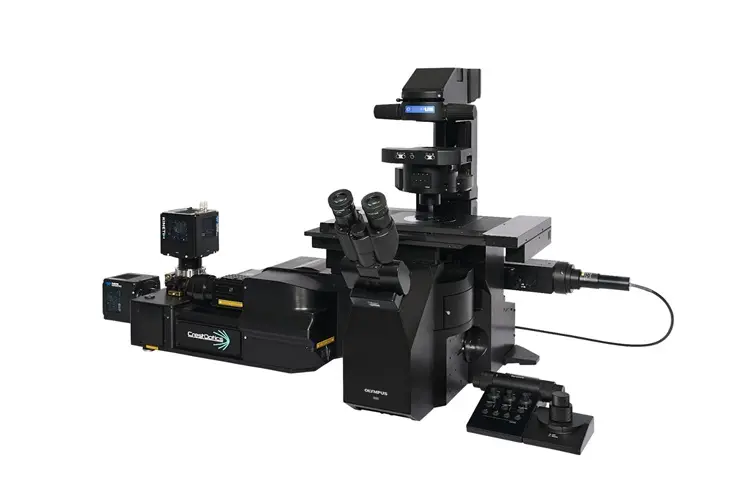

IXplore IX85 SpinXL Spinning Disk Confocal Microscope

Reference: EVI-SpinXL

https://www.analis.com/web/image/product.template/135194/image_1920?unique=689d05d
The IXplore IX85 SpinXL is optimized for fast, high-throughput live-cell imaging with its class-leading 26.5 mm field of view. Built on the motorized IX85 frame and powered by CrestOptics X-Light V3 technology, it’s perfect for capturing large dynamic cellular events, even in complex 3D structures or multi-well formats.

Key Features & Benefits

  • Extra-large 26.5 mm FOV for fast, high-content acquisition
  • Up to 498 fps imaging speed (full frame)
  • NIR imaging capability reduces phototoxicity and improves depth
  • Multi-disk flexibility: standard, thick sample, or high-throughput spiral
  • TruFocus™ Z-drift compensation for multipoint time-lapse stability
  • Compatible with AI-powered Olympus cellSens software

    This combination does not exist.

    IXplore IX85 SpinXL Spinning Disk Confocal Microscope

    Technical information

    Feature

    Details

    Imaging Resolution

    Lateral: ~230 nm; Axial: ~600 nm (1.4 NA)

    Field of View (FOV)

    Up to 26.5 mm

    Disk Speed

    Up to 15,000 rpm

    Disk Options

    250 μm, 400 μm spacing, spiral disk

    Max Frame Rate

    Up to 498 fps

    Spectral Range

    Excitation: 400–750 nm; Emission: 400–850 nm

    Illumination

    89 North LDI; up to 7 laser lines

    Compatible Objectives

    X Line™, A Line™, Silicone Gel Pad

    Software

    Olympus cellSens Dimensions supporting AI-assisted analysis via TruAI™ and precise image alignment through GEM module

    Dimensions

    Scanner: 357 × 606 × 225 mm; Weight: 26 kg
    Download brochure for full specifications to complete this short summary.
    Make contact with our local experts for a tailored quote or live demo.
