IX73 ICSI/IMSI Inverted Microscope System

Reference: EVI-IX73 ICSI/IMS

https://www.analis.com/web/image/product.template/136049/image_1920?unique=689d05d
The IX73 Inverted Microscope System from Evident is expertly designed for ICSI, IMSI, and spindle observation in assisted reproductive technologies. With a semi-motorized configuration, this advanced solution supports consistent, high-resolution visualization, minimizing user fatigue while maximizing workflow efficiency.

High-Precision Imaging for Advanced Reproductive Research

Ideal for IVF labs, the IX73 system ensures seamless switching between imaging methods, helping embryologists focus on critical micromanipulation tasks with speed and confidence.

Why Choose the IX73 for ICSI/IMSI?

  • Designed for IVF: Optimized for ICSI, IMSI, and SL-ICSI techniques.
  • Improved Workflow: Motorized switching between objectives and condenser positions with one-button operation.
  • High-Contrast Imaging: Supports relief-contrast and differential interference for clear oocyte and sperm visualization—even in plastic dishes.
  • Effortless Operation: Focus and brightness automatically adjust with magnification changes.
  • Expandable Configuration: Compatible with third-party micromanipulators and accessories.

Application Highlights

  • ICSI (Intracytoplasmic Sperm Injection)

Relief-contrast observation enables clear visualization of 3D oocytes in plastic dishes—ideal for assessing the zona pellucida and injection conditions.

  • IMSI (Intracytoplasmic Morphologically Selected Sperm Injection)

Differential interference contrast (DIC) supports high-magnification inspection of sperm head morphology and vacuoles—available with optional IMSI unit.

  • SL-ICSI (Spindle Localization)

Olympus' polarizing optics reveal the metaphase II spindle, helping avoid spindle damage during microinjection procedures.

Key Features

  • Semi-motorized microscope with motorized switching of condenser/objectives
  • Spindle observation standard (polarized light)

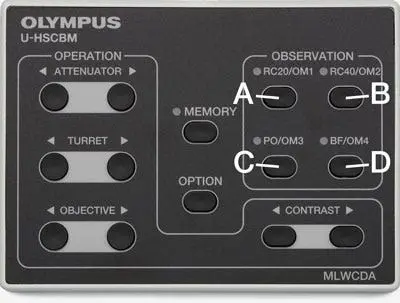

  • One-button switching between observation methods via hand switch
  • Supports IMSI with optional unit
  • UIS2 optical system for superior image quality
  • Compatible with relief contrast, DIC, and polarization techniques

Looking for full automation?

The IX83 model offers a fully motorized alternative to the IX73, ideal for high-throughput IVF labs seeking maximum precision and workflow automation.

    This combination does not exist.

    Technical information

    Feature

    IX73 (Semi-Motorized)

    IX83 (Fully Motorized)

    Observation Methods

    ICSI (Relief), IMSI (optional), SL-ICSI (spindle)

    ICSI (Relief), IMSI (DIC), SL-ICSI (spindle)

    Objective Switching

    Motorized

    Motorized

    Condenser Positioning

    Motorized

    Motorized

    Focus Control

    Manual fine/coarse

    Fully motorized with remote operation

    Focus Stroke

    10 mm

    10.5 mm

    Minimum Increment

    0.01 µm

    0.01 µm

    Stage Options

    Mechanical stage (right or left handle)

    Mechanical stage (left handle standard)

    Light Path Selection

    Manual 0:100 / 50:50 / 100:0

    Motorized 0:100 / 50:50 / 100:0

    Transmitted Light Source

    100 W halogen or LED

    100 W halogen or high CRI LED

    Observation Tubes

    Widefield binocular or tilting binocular

    Widefield tilting binocular

    Condenser

    Motorized mid-long working distance condenser (NA 0.5)

    Motorized mid-long working distance condenser (NA 0.5)

    Operating Temperature Range

    5 °C to 40 °C

    5 °C to 40 °C

    Power Consumption

    150–205 W (depending on configuration)

    Approx. 290 W
    For full technical specs, see system diagram in the brochure below.

    Use Cases

    • Human and animal IVF labs
    • Reproductive biology research
    • Clinical embryology
    • Fertility preservation studies

    Related documents

    DOCUMENT NAME

    RELEASE DATE

    DOWNLOAD

    Brochure EVIDENT IX73 ICSI-IMSI for IVF Application EN.pdf
    11 / 09 / 2025
    Download icon Download
