LED Lighting panel and control kit, red & blue for ZWYR-293; ZWYC-293G

Reference: LAB-P5031RB

https://www.analis.com/web/image/product.template/113422/image_1920?unique=bfec5bb

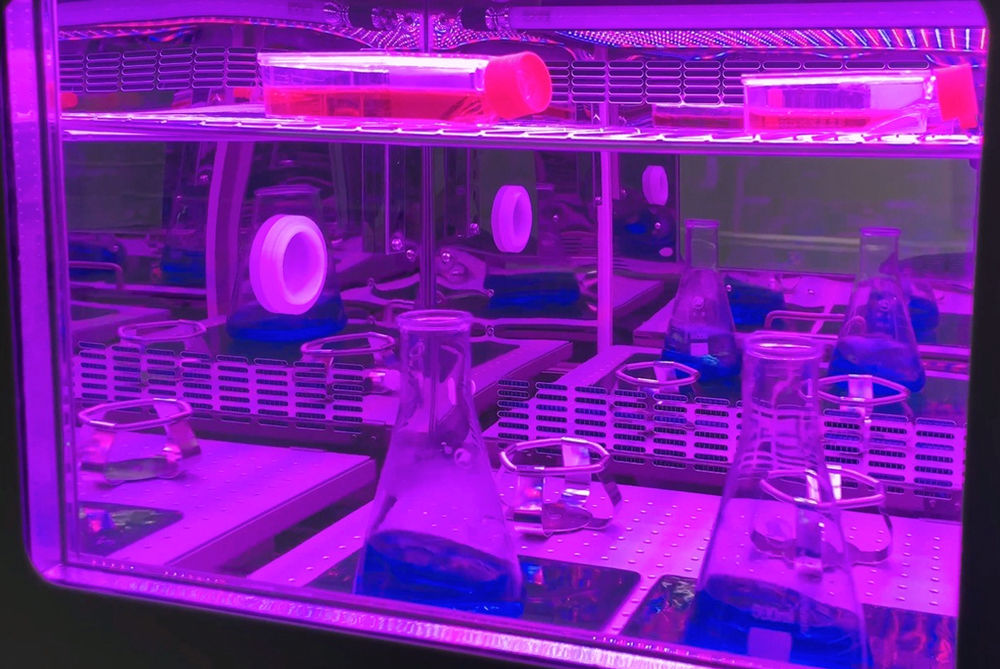

Photosynthetic Lighting Option for ZWYC-293G

The photosynthetic LED lighting panel can be equipped for the cultivation of those phototrophic organisms, such as plant culture, algae, etc.

▶ Light panels with light intensity up to 220 μmol/(m2*s) guarantee even light distributions over the shaking tray.

▶ Available in Red & Blue [P5031RB], and Warm White [P5031WW].

▶ Easy to program for day and night simulations.

▶ With a height of 10mm, the light panel minimizes the impact on the usable internal height above the shaking tray.

    This combination does not exist.

    LED Lighting panel and control kit, red & blue for ZWYR-293; ZWYC-293G

    Technical information

    Part NO.P5031RBP5031WW
    Light TypeLED, 50% Red, 50% BlueLED, 100% Warm White
    Spectrum

    Red: 640-660nm,
    Blue: 430-450nm

    		4000k: 400-700nm
    Light IntensityUp to 350 μmol/(m2*s)Up to 220 μmol/(m2*s)
    ControlYes, Individually,
    from 0-100% output    		Yes, from 0-100% output
    Power120W
    Control ModeFixed Value and Programmable
    Dimensions (WxDxH)550x430x10mm

    # Min. 15°C when Photosynthetic Lighting option is applied. With P5020, temperature range upgrade to 4-80°C, no UV light.

    Related accessories, consumables & products

    120L Ultra compact shaking incubator, 4-60C
    LABWIT

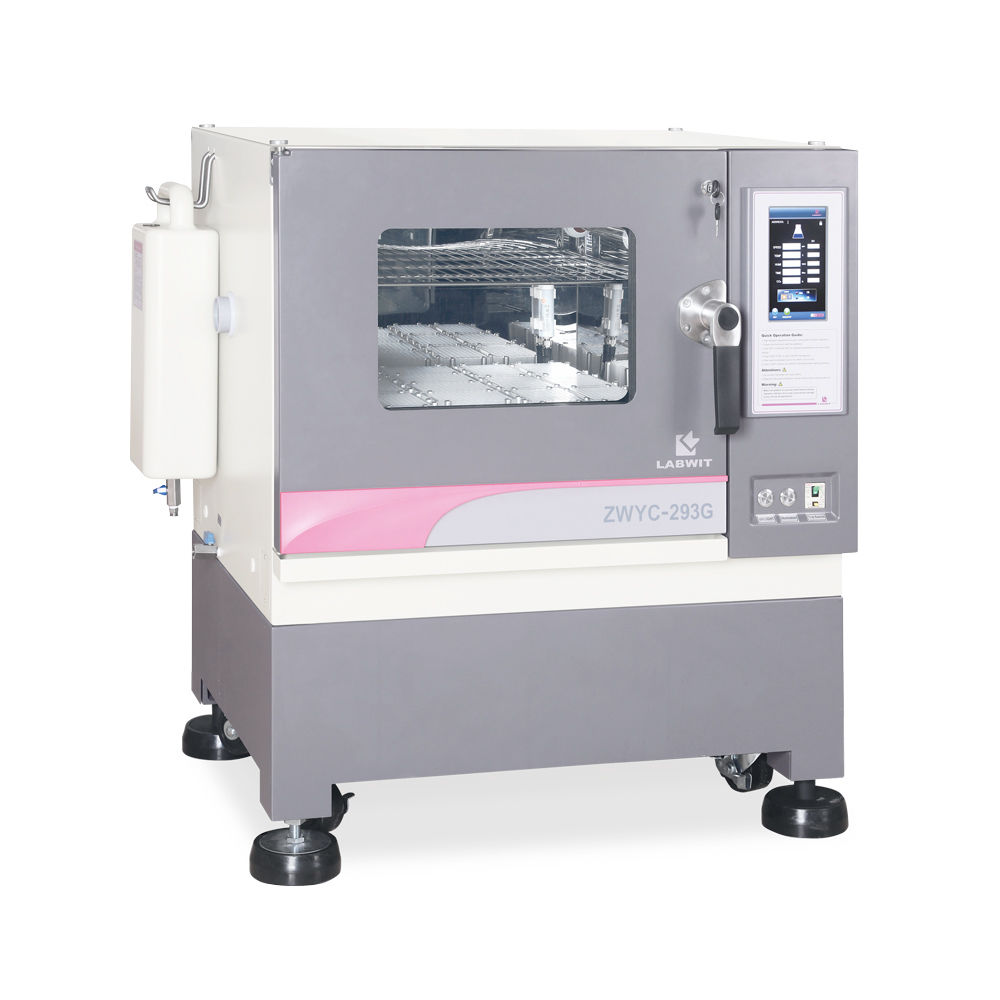

    120L Ultra compact shaking incubator, 4-60C

    Reference : LAB-ZWYC-293G

    The NEW Ultra ZWYC-293G offers comprehensive solutions for shaking cultivations on small foot print, including active humidity and CO2 control technology, offering exceptional flexibility, allowing for traditional shaking incubations with flasks and tubes, as well as micro-volume high-throughput microbial screening with 96-well plates.

    Compact size for all-round applications, optimized controlling for process reliability, secured protections for precious samples, ZWYC-293G looks after all that you care about the most when it comes to shaking incubations for microbial, mammalian, and plant cell cultures.

    Key Features:

    • Ultra-compact design: Maximizes bench space while providing ample capacity for your incubation needs.
    • Stackable configuration: Allows for easy expansion and customization to fit your laboratory setup. Compatible to stack with ZWYR-293.
    • Ø1-50mm Shaking Diameter: Flexibility for most common shaking orbit used, ensuring uniform mixing and optimal growth conditions for small to large vessels.
    • Ø3m Shaking Diameter (P5052): Aligning with the trends of high throughput screening, this option enables high speed up to 1200rpm.
    • Humidity Active Control (P5053): 140°C direct steam injection system enables fast responsive humidity control, preventing the sample from drying out.
    • CO2 Control (P5054): World class single beam, dual wavelength IR CO2 sensor, providing reliable performance, ensuring the healthy growth of cell cultures.
    • Condensation Control:
      o   Heated full piece of glass door panel with no screws, minimizes the condensation, and easy for cleaning
      o   Chamber with rounded corners for easy cleaning
      o   Water dripping slot catches any excessive condensation
    • New dual lighting system: two sets of LED illumination and UV lighting inside the chamber. UV light is interlocked with the door opening.
    • New ergonomic door handle locks the door securely preventing gas & water leakage.
    • LED photosynthetic lighting panels (P5031WW; P5031RB): Available in Red & Blue dual color; and warm white single color.
