MARTIN CHRIST

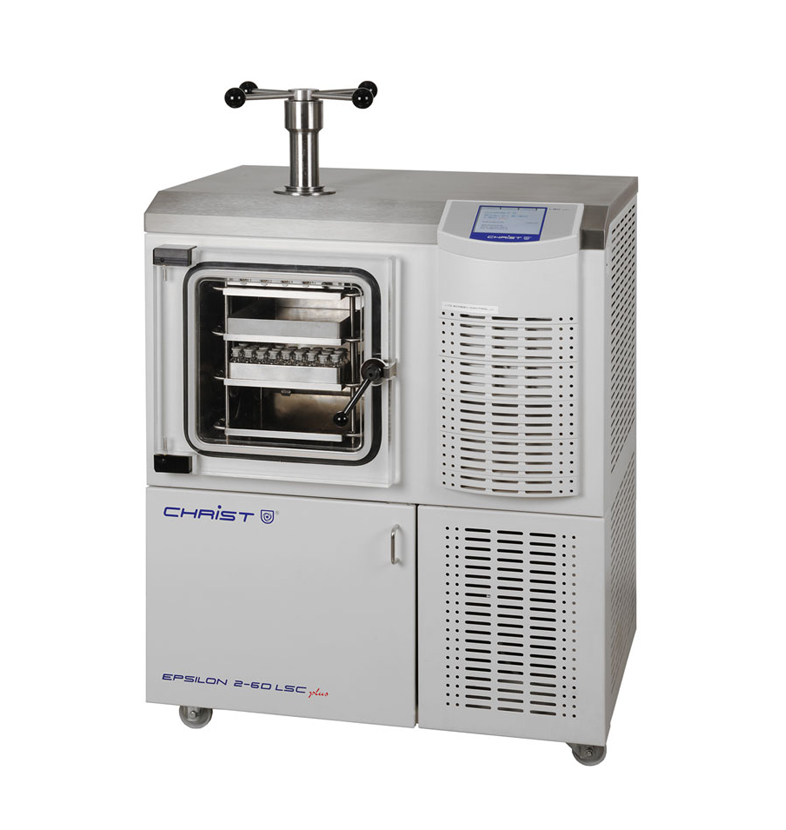

Freeze dryer Epsilon 2-6D LSCplus

Reference: MAR-111166

The Martin Christ Epsilon 2-6D LSCplus is a high-performance, pilot-scale freeze dryer designed for precise, scalable lyophilization in pharmaceutical, biotechnology, and material science applications. This model features the advanced LSCplus control system, ensuring optimal temperature, vacuum, and process monitoring for a wide range of applications, including drug development, biologic preservation, and advanced material research. It provides reliable, reproducible results in the drying of complex samples, offering high throughput and operational flexibility.

Key Features and Technical Specifications

Condenser Capacity: 6 kg ice capacity, 4.5 kg/24 h sublimation rate – ideal for high-volume, pilot-scale lyophilization applications
Temperature Control:
- Shelf Temperature Range: -60°C to +60°C – precise and stable temperature control to meet the needs of temperature-sensitive materials
- Condenser Temperature: -85°C – effective trapping of sublimed solvents for high-quality results
Shelf Area: 0.76 m² – versatile shelf configuration, ideal for large vials, flasks, or bulk sample drying
Vacuum System:
- Dry-running vacuum pump for clean, contamination-free operation
- Capacitive vacuum sensor for accurate vacuum measurement and precise process control
Process Control:
- LSCplus control system with intuitive touchscreen interface, real-time data monitoring, and customizable cycle programming
- Integrated product temperature probes for monitoring temperature profiles throughout the drying cycle
Chamber Configuration:
- Stainless steel interior for durability, solvent resistance, and ease of cleaning
- Customizable shelf arrangements for diverse sample types, enhancing process flexibility
Data Logging and Connectivity:
- Real-time data logging for accurate process documentation and reporting
- USB and Ethernet interfaces for seamless data export, remote access, and external system integration
Safety Features:
- Explosion-proof design (optional) for use with flammable solvents
- Closed-loop cooling system to prevent solvent loss and maintain environmental protection

Compliance and Application Areas

The Epsilon 2-6D LSCplus is built to meet GMP and FDA standards, making it perfect for a range of critical applications, including:

Pharmaceutical lyophilization – drying of APIs, drug formulations, biologics, and vaccines
Biotechnology – preservation of enzymes, proteins, and cell cultures
Material science – drying of sensitive materials such as nanomaterials, polymers, and coatings
Food and nutraceuticals – freeze-drying of bioactive compounds, extracts, and food ingredients

Why Choose the Martin Christ Epsilon 2-6D LSCplus?

High capacity and throughput – ideal for pilot-scale lyophilization with large sample volumes
Advanced LSCplus control system for precise, reproducible cycles and real-time process management
Flexible and scalable – suitable for diverse applications across pharmaceuticals, biotechnology, and material science
Safety and GMP-compliant design – explosion-proof option and environmental protection for solvent-based applications

The Epsilon 2-6D LSCplus is the perfect solution for high-performance, scalable lyophilization, ensuring optimal drying results for a variety of applications requiring precision, reliability, and safety.
