MEMMERT

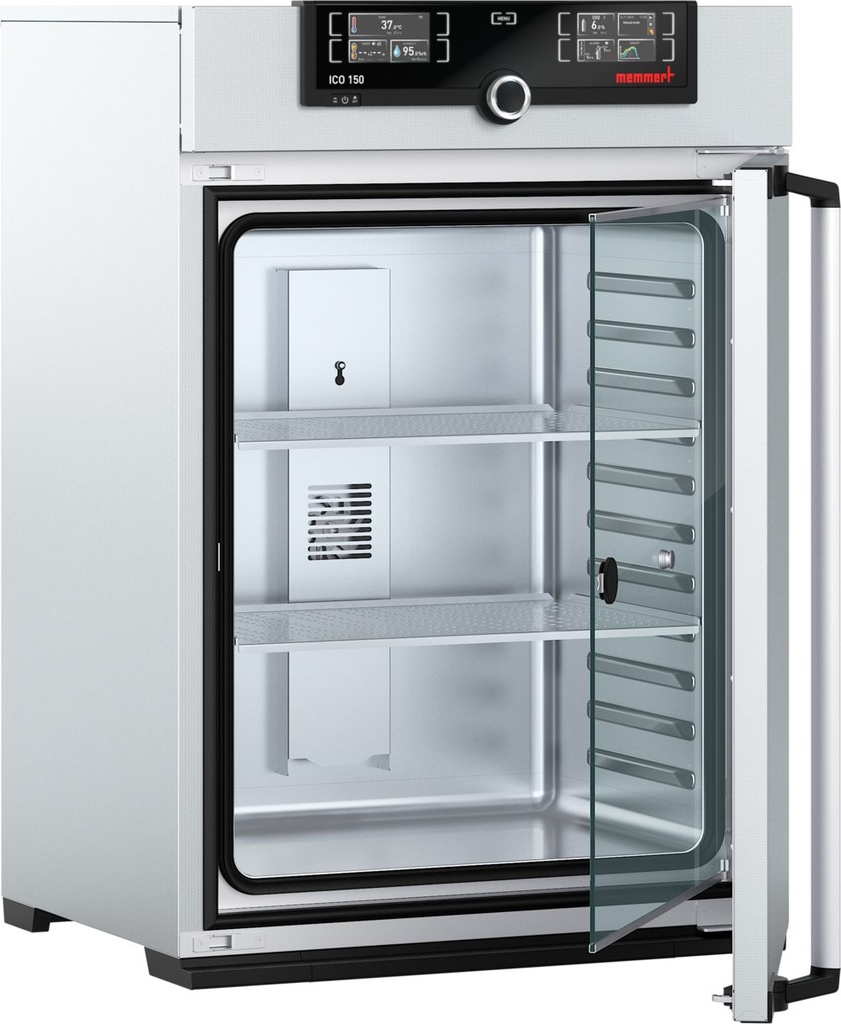

ICO150 156l CO2 Incubator with standard sterilisation program

Reference: MEM-ICO150

Safety at all times: high-end functions for the protection of cell, bacteria and tissue cultures

For labs requiring redundant safety monitoring rather than single-point control, the Memmert ICO150 stands apart with its dual-sensor architecture: two independent Pt100 sensors (DIN Class A, 4-wire circuit) mutually monitor temperature — one automatically taking over in case of error — while dual-beam NDIR technology ensures precise, drift-resistant CO₂ regulation with auto-diagnostic fault detection. Combined with the AutoSAFETY thermal protection system, the ICO150 is built for continuous, unattended operation where sample security cannot be compromised.

Key technical highlights:

Dual-beam NDIR CO₂ control: digital electronic regulation with auto-diagnostic system, acoustic fault indication, and barometric pressure compensation
Twin Pt100 temperature sensors (DIN Class A, 4-wire): mutual monitoring, automatic error takeover, accuracy ±0.1 K at 37°C
AutoSAFETY (ASF): independent over-/undertemperature protection following setpoint at preset tolerance; heating cuts off on overtemperature, cooling activates on undertemperature; visual and acoustic alarm
Built-in sterilization program: 60 minutes at 180°C, without removing the sensors
ControlCOCKPIT TwinDISPLAY: adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT color displays, 9 language settings (DE, EN, ES, FR, PL, CZ, HU, IT, ZH)
SetpointWAIT function: process/program time only starts once the set temperature is reached
6-side full-surface heating concept: multi-function heating on four sides plus additional door and back heating to prevent condensation
Ethernet LAN / USB connectivity: AtmoCONTROL software for programming, management and data transfer; program retained in memory in case of power failure
Integral auto-diagnostics: continuous fault diagnostics for both temperature and CO₂

Request more information

ICO150 156l CO2 Incubator with standard sterilisation program

Technical information

Specification	Detail
Interior volume	156 L
Interior dimensions (W x H x D)	560 x 700 x 400 mm (D less 35mm for fan)
Interior material	Stainless steel 1.4301 (ASTM 304), corrosion resistant
Exterior dimensions (W x H x D)	719 x 1070 x 591 mm (D +56mm door handle)
Working temperature range	5°C above ambient to +50°C
Setting temperature range	+18°C to +50°C
Setting accuracy (temperature)	0.1°C
Temperature variation in chamber at 37°C	±0.3 K
Temperature fluctuation over time at 37°C	±0.1 K
Temperature sensors	2x Pt100, DIN Class A, 4-wire circuit
CO₂ adjustment range	0–20%
CO₂ setting accuracy	0.1%
CO₂ variation over time	±0.2%
CO₂ control technology	Dual-beam NDIR, digital electronic
O₂ adjustment range	1–20%
O₂ setting accuracy	0.1%
Humidity (standard, Peltier-limited)	93% rh ±2.5% (with water dish full and inserted)
Humidity setting accuracy	0.5% rh
Humidity active control (option K7)	40–97% rh and rh-Off
Sterilization program	60 min at 180°C (sensors remain in place)
Max. shelves	10 (2 perforated stainless steel shelves standard)
Max. load (chamber / per shelf)	120 kg / 15 kg
Interface	Ethernet LAN, USB
Voltage / load	230V or 115V, 50/60Hz, approx. 1500 W
Ambient operating temperature	10°C to 35°C
Ambient humidity	max. 70% rh, non-condensing
Max. installation altitude	2,000 m above sea level
Overvoltage category	II
Pollution degree	2
Net / gross weight (with packaging)	90 kg / 116 kg approx.
Packaging dimensions	800 x 1250 x 800 mm
Country of origin	Federal Republic of Germany
Customs tariff number	8419 8998
WEEE-Reg.-No.	DE 66812464
Safety approval	Standard units are safety-approved and bear the test marks

Standard equipment: works calibration certificate (chamber center, +37°C, 5% CO₂); fully insulated stainless steel door with 2-point compression lock; inner glass door with 8mm Ø gas sampling port; CO₂ connection set (hose, coupling, clamp); membrane filter for incoming gas; 1 stainless steel water dish.
