MEMMERT

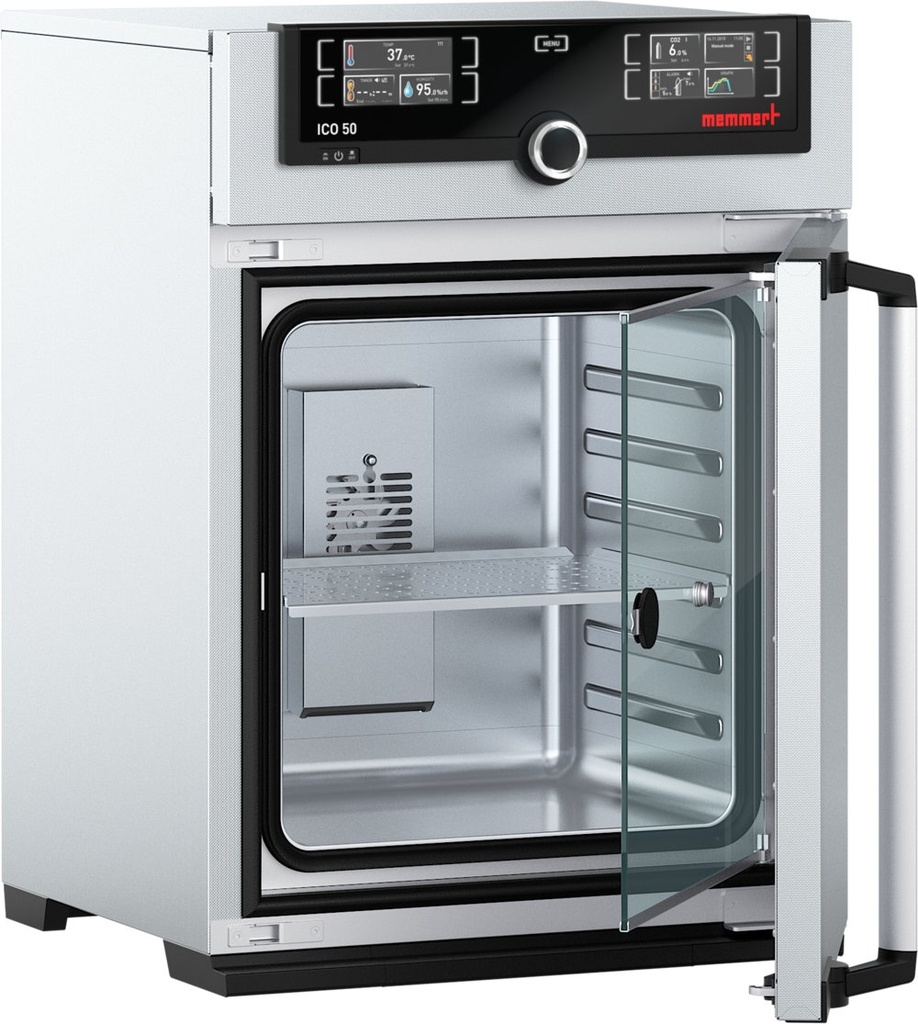

IC050 56l CO2 incubator with standard sterilisation program

Reference: MEM-ICO50

The smallest ICO, without compromise on safety

Where bench space is limited but reliability cannot be, the Memmert ICO50 brings the full safety architecture of the ICO range — dual-sensor temperature monitoring, dual-beam NDIR CO₂ control, and AutoSAFETY protection — into a compact 56 L footprint. It is the entry model of a four-size range (56 to 241 L), designed for labs running smaller batches of cell, bacteria or tissue cultures without sacrificing the redundant monitoring found on larger ICO models.

Key technical highlights:

Dual-beam NDIR CO₂ control: digital electronic regulation with auto-diagnostic system, acoustic fault indication, and barometric pressure compensation
Twin Pt100 temperature sensors (DIN Class A, 4-wire): mutual monitoring, automatic error takeover, accuracy ±0.1 K at 37°C
AutoSAFETY (ASF): independent over-/undertemperature protection following setpoint at preset tolerance; automatic heating/cooling cutoff; visual and acoustic alarm
Built-in sterilization program: 60 minutes at 180°C, without removing the sensors
ControlCOCKPIT TwinDISPLAY: adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT color displays, 9 languages (DE, EN, ES, FR, PL, CZ, HU, IT, ZH)
SetpointWAIT function: process/program time only starts once the set temperature is reached
6-side full-surface heating concept: prevents condensation even in the smallest chamber of the range
Ethernet LAN / USB connectivity: AtmoCONTROL software for programming, management and data transfer; program retained in memory in case of power failure
Mobile alarm notifications: visual and acoustic alarm plus remote alert if temperature, CO₂, O₂ or humidity ranges are exceeded
3 years worldwide guarantee

Request more information

IC050 56l CO2 incubator with standard sterilisation program

Technical information

Specification	Detail
Interior volume	56 L
Interior dimensions (W x H x D)	400 x 425 x 330 mm (D less 35mm for fan)
Interior material	Stainless steel 1.4301 (ASTM 304), corrosion resistant
Exterior dimensions (W x H x D)	559 x 795 x 521 mm (D +56mm door handle)
Working temperature range	5°C above ambient to +50°C
Setting temperature range	+18°C to +50°C
Setting accuracy (temperature)	0.1°C
Temperature variation in chamber at 37°C	±0.3 K
Temperature fluctuation over time at 37°C	±0.1 K
Temperature sensors	2x Pt100, DIN Class A, 4-wire circuit
CO₂ adjustment range	0–20%
CO₂ setting accuracy	0.1%
CO₂ variation over time	±0.2%
CO₂ control technology	Dual-beam NDIR, digital electronic
O₂ adjustment range	1–20%
O₂ setting accuracy	0.1%
Humidity (standard, Peltier-limited)	93% rh ±2.5% (with water dish full and inserted)
Humidity setting accuracy	0.5% rh
Humidity active control (option K7)	40–97% rh and rh-Off
Sterilization program	60 min at 180°C (sensors remain in place)
Max. shelves	5 (1 perforated stainless steel shelf standard)
Max. load (chamber / per shelf)	75 kg / 15 kg
Interface	Ethernet LAN, USB
Voltage / load	230V or 115V, 50/60Hz, approx. 1100 W
Ambient operating temperature	10°C to 35°C
Ambient humidity	max. 70% rh, non-condensing
Max. installation altitude	2,000 m above sea level
Overvoltage category	II
Pollution degree	2
Net / gross weight (with packaging)	55 kg / 74 kg approx.
Packaging dimensions	730 x 950 x 640 mm
Country of origin	Federal Republic of Germany
Customs tariff number	8419 8998
WEEE-Reg.-No.	DE 66812464
Safety approval	Standard units are safety-approved and bear the test marks

Standard equipment: works calibration certificate (chamber center, +37°C, 5% CO2); fully insulated stainless steel door with 2-point compression lock; inner glass door with 8mm Ø gas sampling port; CO2 connection set (hose, coupling, clamp); membrane filter for incoming gas; 1 perforated stainless steel shelf; 1 stainless steel water dish.
