MIELE

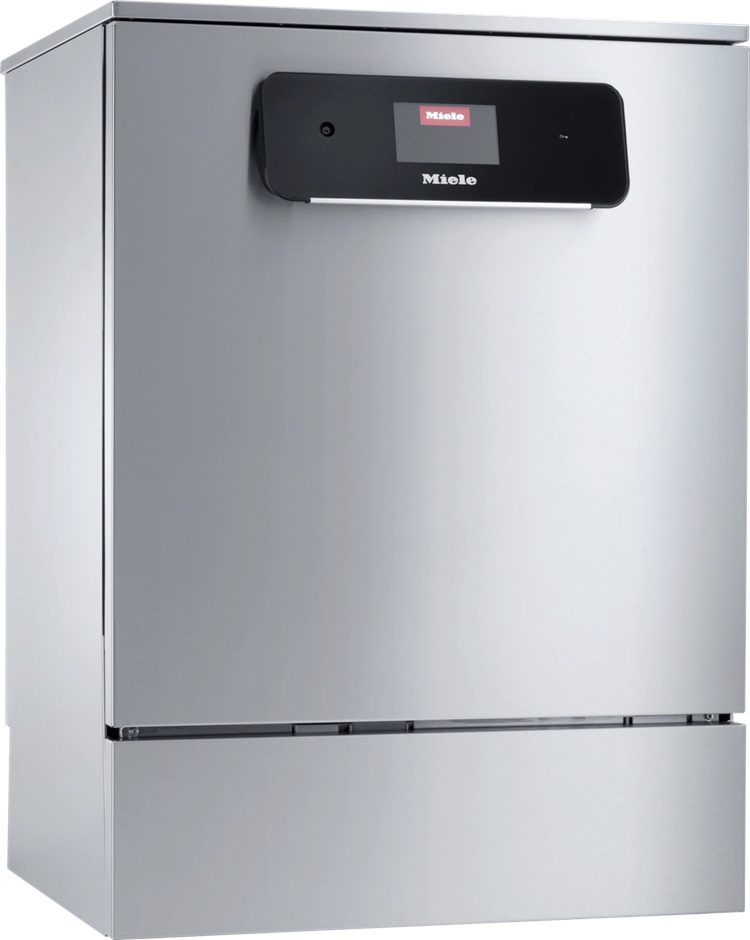

NWE / PLW 8683 [LD DC10]

Reference: MIE-12798690

https://www.analis.com/web/image/product.template/130055/image_1920?unique=8510170

The Miele PLW 8683 [LD DC10] is a high-performance laboratory glassware washer engineered for the precise and thorough cleaning of sensitive lab equipment. With advanced cleaning technologies and flexible loading capabilities, it delivers consistent, traceable results in demanding lab environments. This version replace the previous serie  Miele PG 8583.

High-Efficiency Laboratory Washer for Benelux Laboratories

Designed to meet the high standards of laboratories in Belgium, the Netherlands, and Luxembourg, this model offers:

  • Flexible Loading Capacity

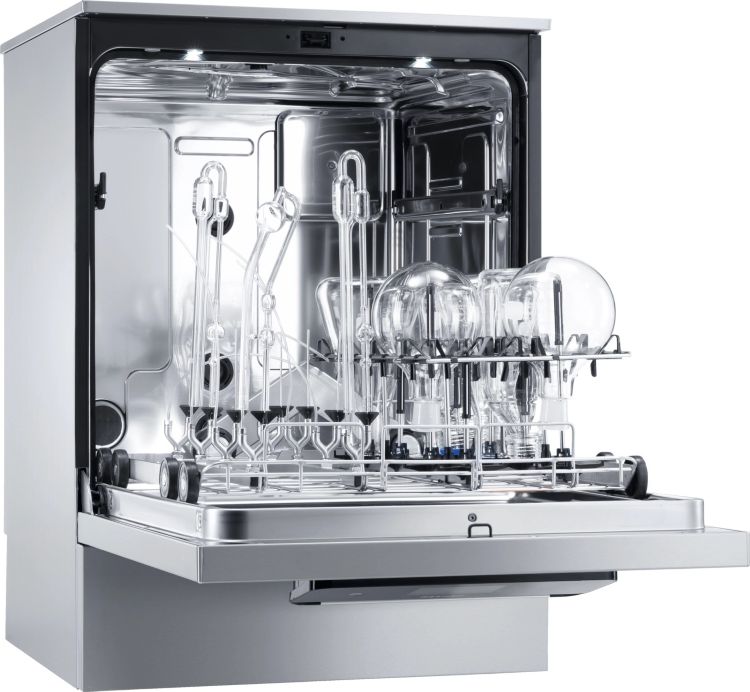

    Accommodates up to 128 laboratory bottles or 98 pipettes per cycle, ideal for routine and high-throughput labs.
  • Advanced Cleaning Technology
    Equipped with a variable-speed pump that dynamically adjusts spray pressure to optimize cleaning performance and resource efficiency.
  • EcoDry Function
    Includes an automatic door-opening feature at the end of the cycle to accelerate drying and prevent residual moisture buildup.
  • Intuitive Touchscreen Interface
    The M Touch Flex color display simplifies cycle selection and enables easy customization of cleaning parameters.
  • Integrated Wi-Fi Connectivity
    Enables integration with laboratory digital infrastructure for process control, monitoring, and data logging.
  • Built-in Water Softener
    Maintains optimal water quality, preventing limescale and ensuring long-lasting performance.
  • Durable Stainless Steel Design
    Provides resistance to corrosion and wear, making it a robust solution for long-term laboratory use.

Applications in Life Science and Pharmaceutical Labs

This washer is perfectly suited for:

  • Research Laboratories
    Ensures contamination-free glassware for reproducible results.
  • Pharmaceutical and Biotech Facilities
    Maintains compliance with hygiene protocols for regulated environments.
  • Clinical and Diagnostic Labs
    Supports critical cleaning needs for precise diagnostics.

Request More Information or a Quote

Looking to enhance your lab's cleaning efficiency with the Miele PLW 8683 [LD DC10]?
👉 Contact our experts for product details, technical advice, or a tailored quote.

    This combination does not exist.

    Technical information

    Capacity

    Narrow-Neck Glassware Per Charge [number]

    64

    Test Tubes Per Charge [number]

    196

    Test Tubes Per Charge [number]

    196

    Lab vials per charge [number]

    128

    Pipettes per charge [number]

    98

    Performance

    Circulation pump, Qmax in l/min.

    500

    Minimum program duration in min.

    20

    Maximum rinse temperature in °C

    93

    Useful volume of the tank in l

    145

    Tested operating hours

    15000

    Dimensions and weight

    Outer side, net height in mm

    835

    Outer side, net width in mm

    598

    Outside side, net depth in mm

    598

    Outer side, gross height in mm (with packaging)

    920

    Outer side, gross width in mm (with packaging)

    670

    Outer side, gross depth in mm (with packaging)

    740

    Tank, usable height in mm

    520

    Tank, usable width in mm

    530

    Bowl, upper rack depth in mm

    474

    Tank, bottom rack depth in mm

    520

    Net weight in kg

    74

    Gross weight in kg

    81

    Maximum floor load in N/m²

    1220
