SIGMA

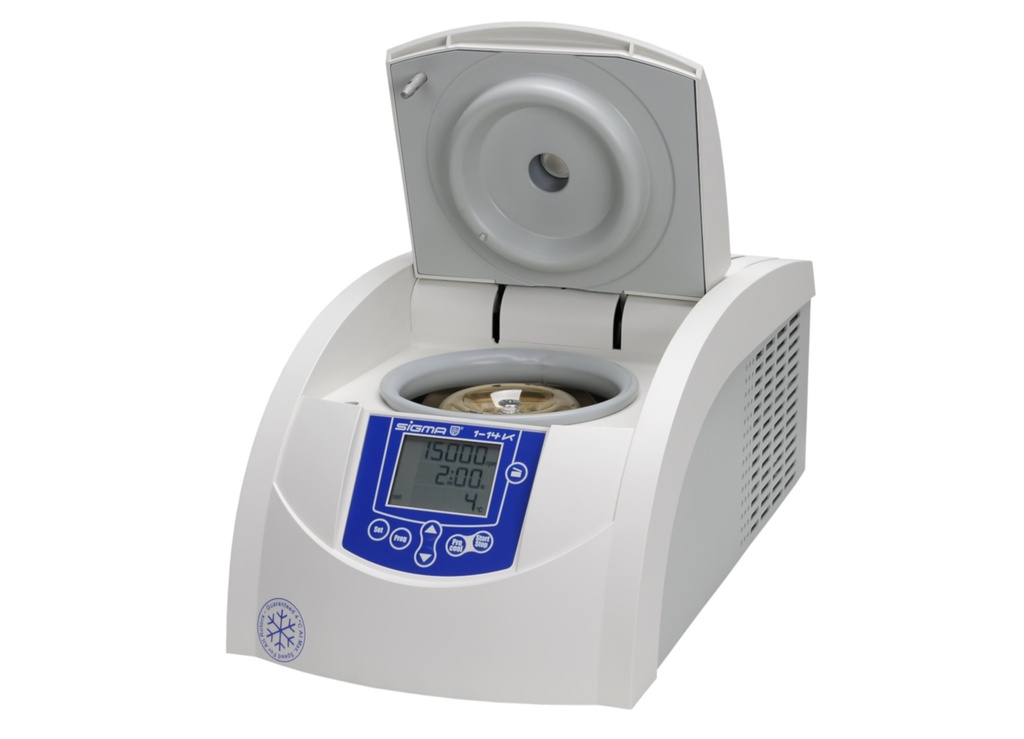

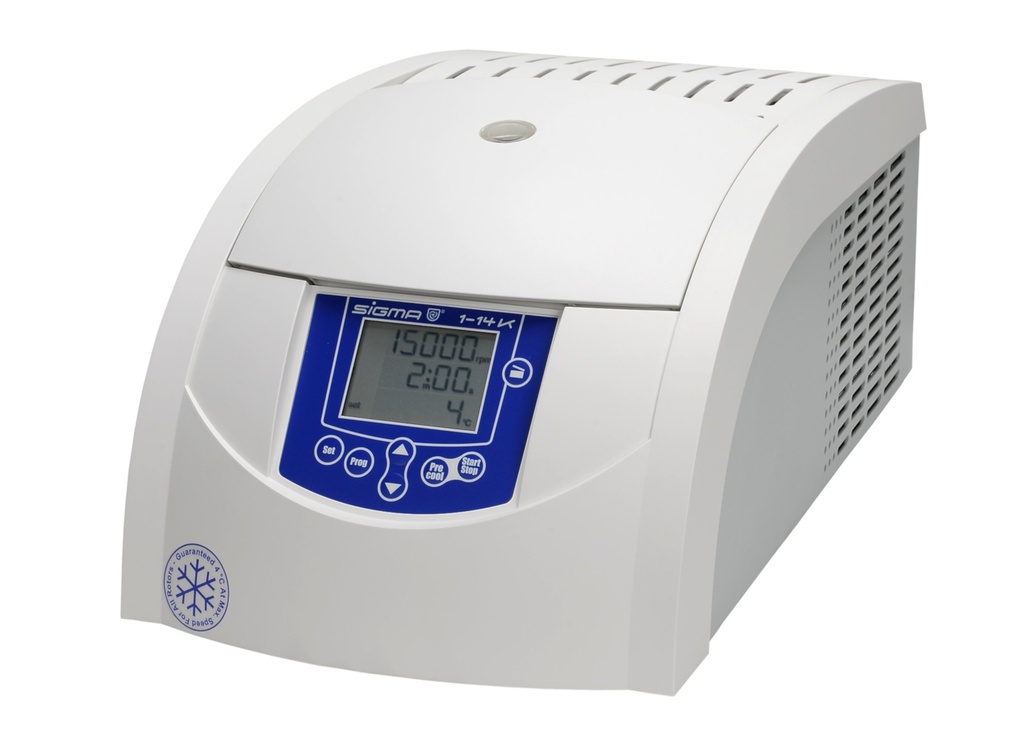

Sigma 1-14K, refrigerated microcentrifuge 220-240V, 50/60Hz

Reference: SIG-10020

https://www.analis.com/web/image/product.template/23737/image_1920?unique=689d05d

The most compact centrifuge in its class


Powerful, compact and versatile

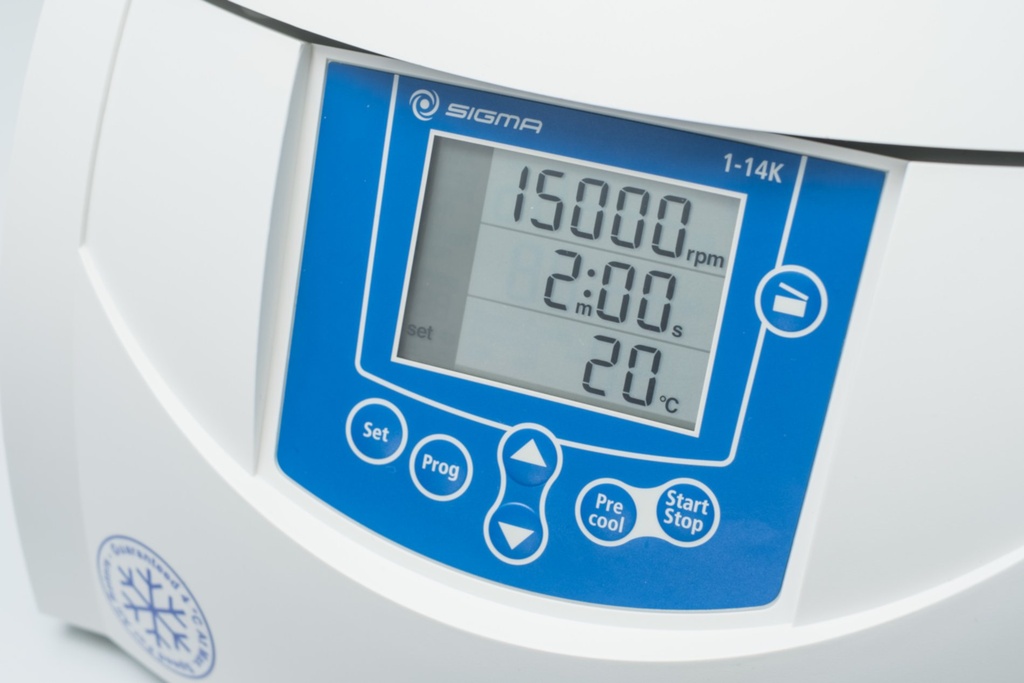

Like its partner Sigma 1-14, the refrigerated version is compact and has impressive performance figures. The Sigma 1-14K refrigerated centrifuge is the most compact refrigerated centrifuge commercially available and has a maximum capacity of 24 x 1.5–2 ml. Large buttons and a large, highly legible display make the Sigma 1-14K extremely easy to operate. It easily achieves +4°C at maximum speed.

Program Specifications:
Programs: 10
Acceleration curves: 2
Deceleration curves: 2
Cycle counting

    This combination does not exist.

    Technical information

    Max. capacity [ml]
    swing-out rotor6 x 2
    fixed-angle rotor24 x 2
    Max. RCF16.602
    Max. speed [rpm]15.000
    Min. speed [rpm]200
    Noise level at maximum speed (approximate) [dB(A)]

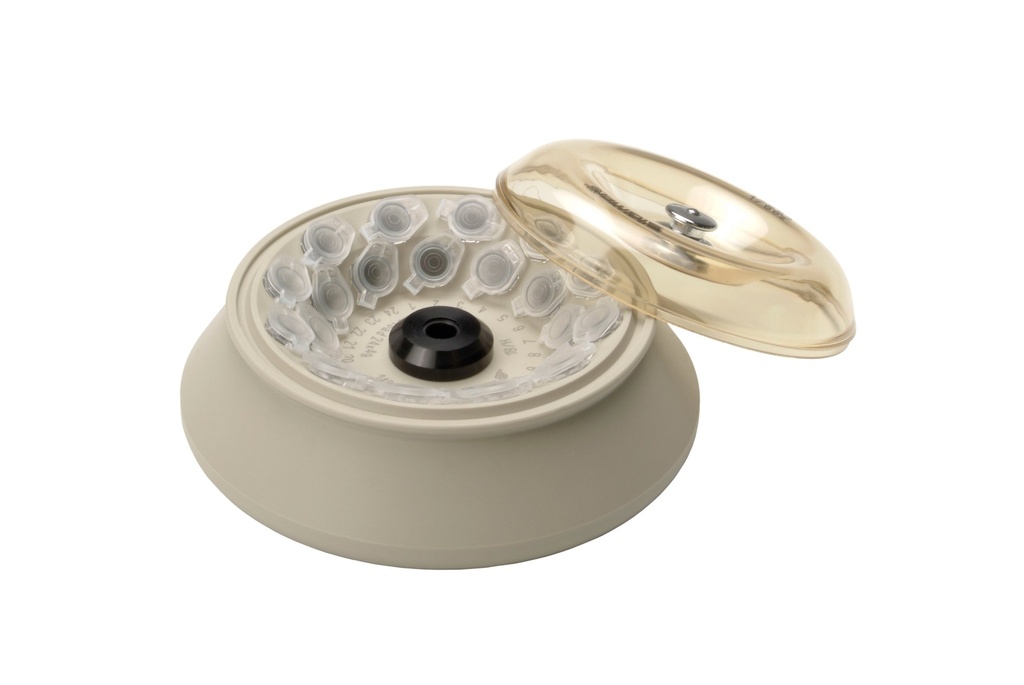

    fixed-angle rotor 12094≤ 49
    swing-out rotor 11128
    with bucket 13128    		≤ 50
    Max. acceleration time [s]
    fixed-angle rotor 12094≤ 16
    swing-out rotor 11128
    with bucket 13128    		≤ 18
    Max. braking time [s]
    fixed-angle rotor 12094≤ 18
    swing-out rotor 11128
    with bucket 13128    		≤ 25
    Temperature setting range [°C]-10 – +40
    Power consumption [W]230
    Height x Width x Depth [mm]236 x 273 x 515
    Height with open lid [mm]404
    Weight without rotor [kg]19
    RefrigerantR134a
    Charge [kg] / Pressure [bar]0,105 / 23
    CO2 equivalent [t]0,150


    Related documents

    DOCUMENT NAME

    RELEASE DATE

    DOWNLOAD

    Brochure Sigma 1-14 & 1-14K EN
    19 / 09 / 2024
    Download icon Download

    Related accessories, consumables & products

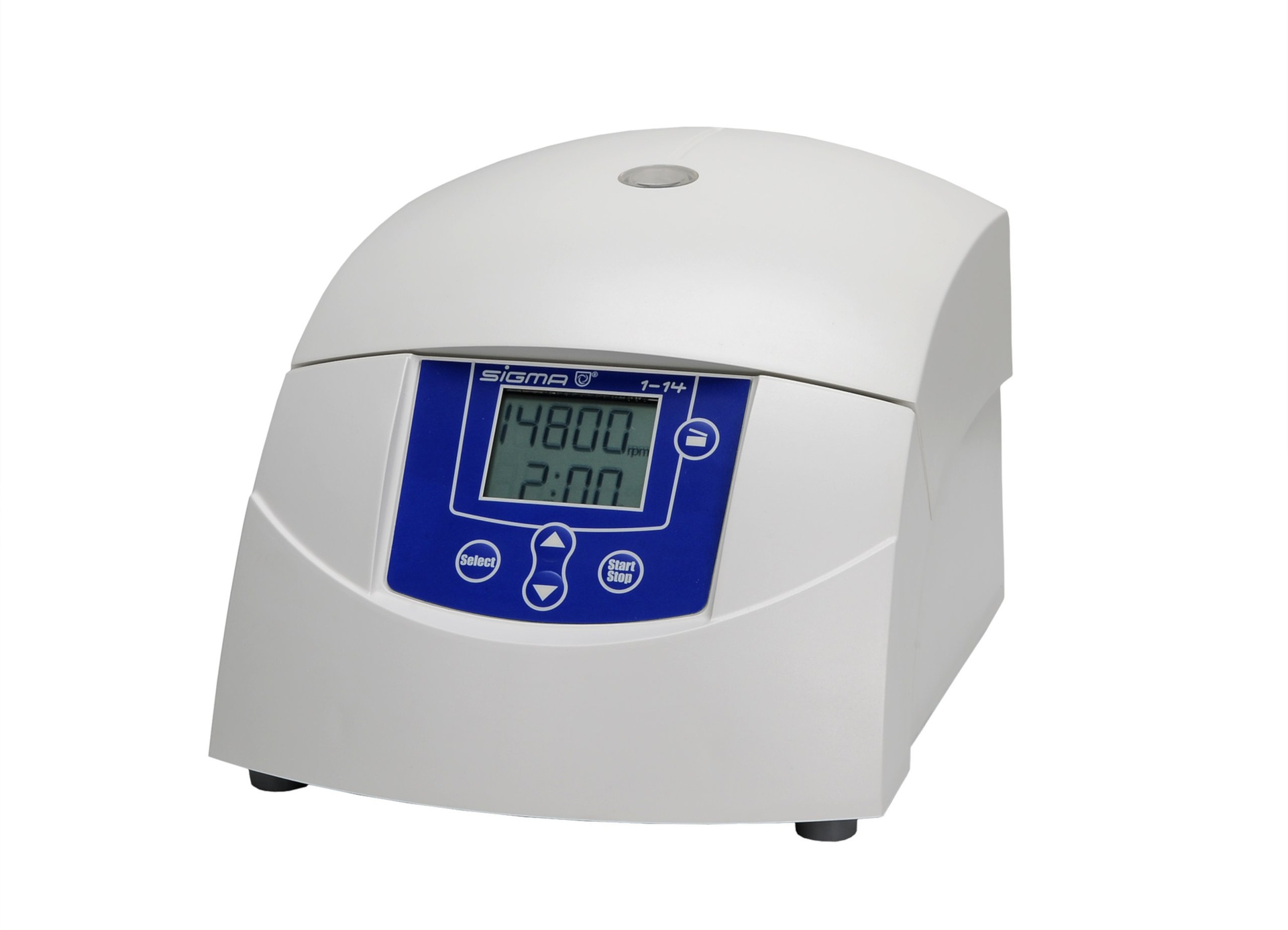

    Sigma 1-14, laboratory microcentrifuge 220-240 V, 50/60 Hz
    SIGMA

    Sigma 1-14, laboratory microcentrifuge 220-240 V, 50/60 Hz

    Reference : SIG-10014

    Small but powerful
    Compact and powerful - those are the characteristics of the Sigma 1-14 in a nutshell. The technical features include a maximum speed of 14,800 rpm and a maximum RCF of 16,163 x g with a capacity of 24 x 1.5–2 ml.
    Large buttons and a large, highly legible display make the Sigma 1-14 extremely easy to operate.
