SIGMA

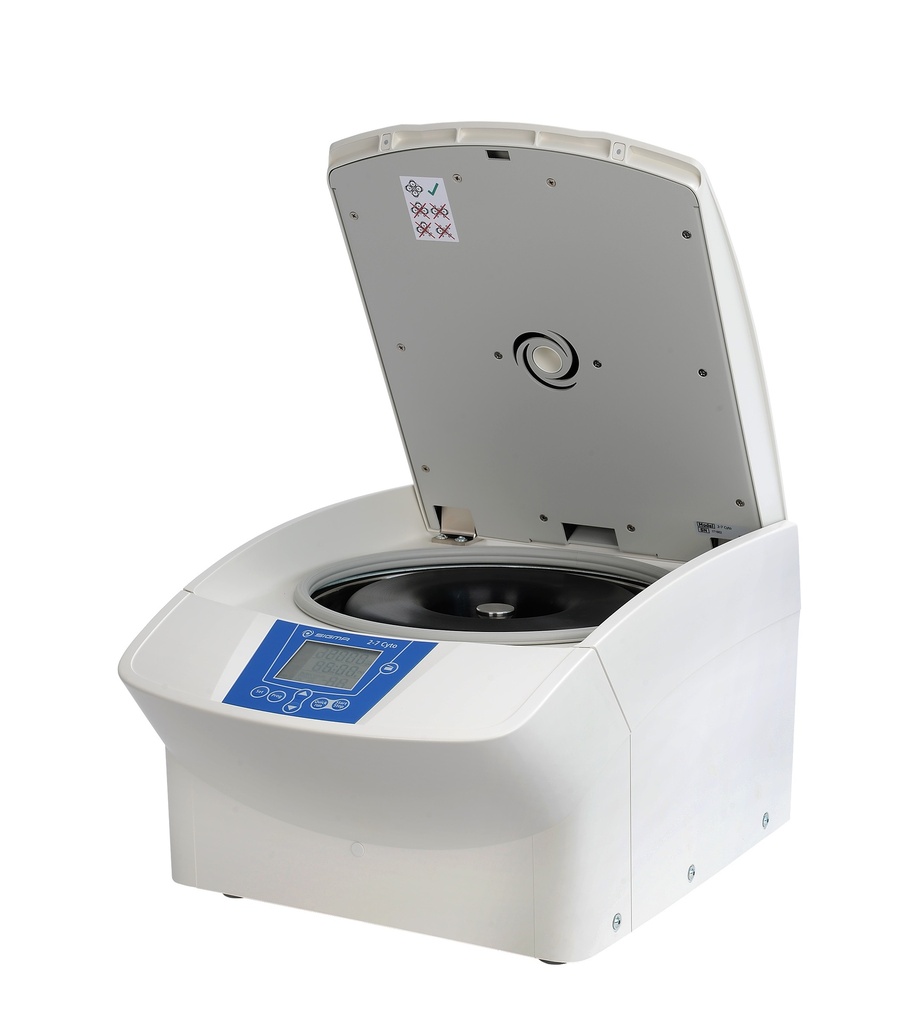

Sigma 2-7 Cyto, Shandon™ configuration, laboratory benchtop centrifuge

Reference: SIG-1022802

https://www.analis.com/web/image/product.template/26666/image_1920?unique=689d05d

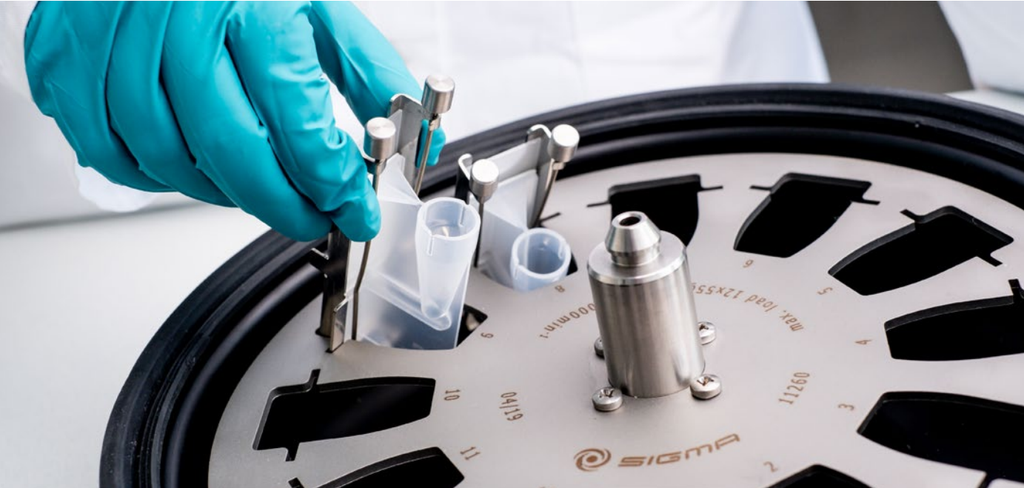

This cytocentrifuge configuration, SIGMA 2-7 Cyto Shandon™ configuration, is compatible with Shandon™ clips and includes:
- rotor no. 11261,
- 12 clips no. 13261,
- 50 single-use funnel no. 15260,
- 50 coated slides no. 15261

    This combination does not exist.

    Technical information

    Max. capacity [ml]
    swing-out rotor4 x 100
    fixed-angle rotor12 Clips
    Max. RCF635
    Max. speed [rpm]2.000
    Min. speed [rpm]400
    Noise level at maximum speed (approximate) [dB(A)]
    fixed-angle rotor 12073-
    swing-out rotor 11071
    with bucket 13299 + Cover    		46
    Max. acceleration time [s]
    fixed-angle rotor 12073-
    swing-out rotor 11071
    with bucket 13299 + Cover    		7
    Max. braking time [s]
    fixed-angle rotor 12073-
    swing-out rotor 11071
    with bucket 13299 + Cover    		9
    Power consumption [W]210
    Height x Width x Depth [mm]293 x 378 x 535
    Height with open lid [mm]643
    Weight without rotor [kg]23


    Related documents

    DOCUMENT NAME

    RELEASE DATE

    DOWNLOAD

    Brochure Sigma 2-7 cyto EN
    19 / 09 / 2024
    Download icon Download

    Related accessories, consumables & products

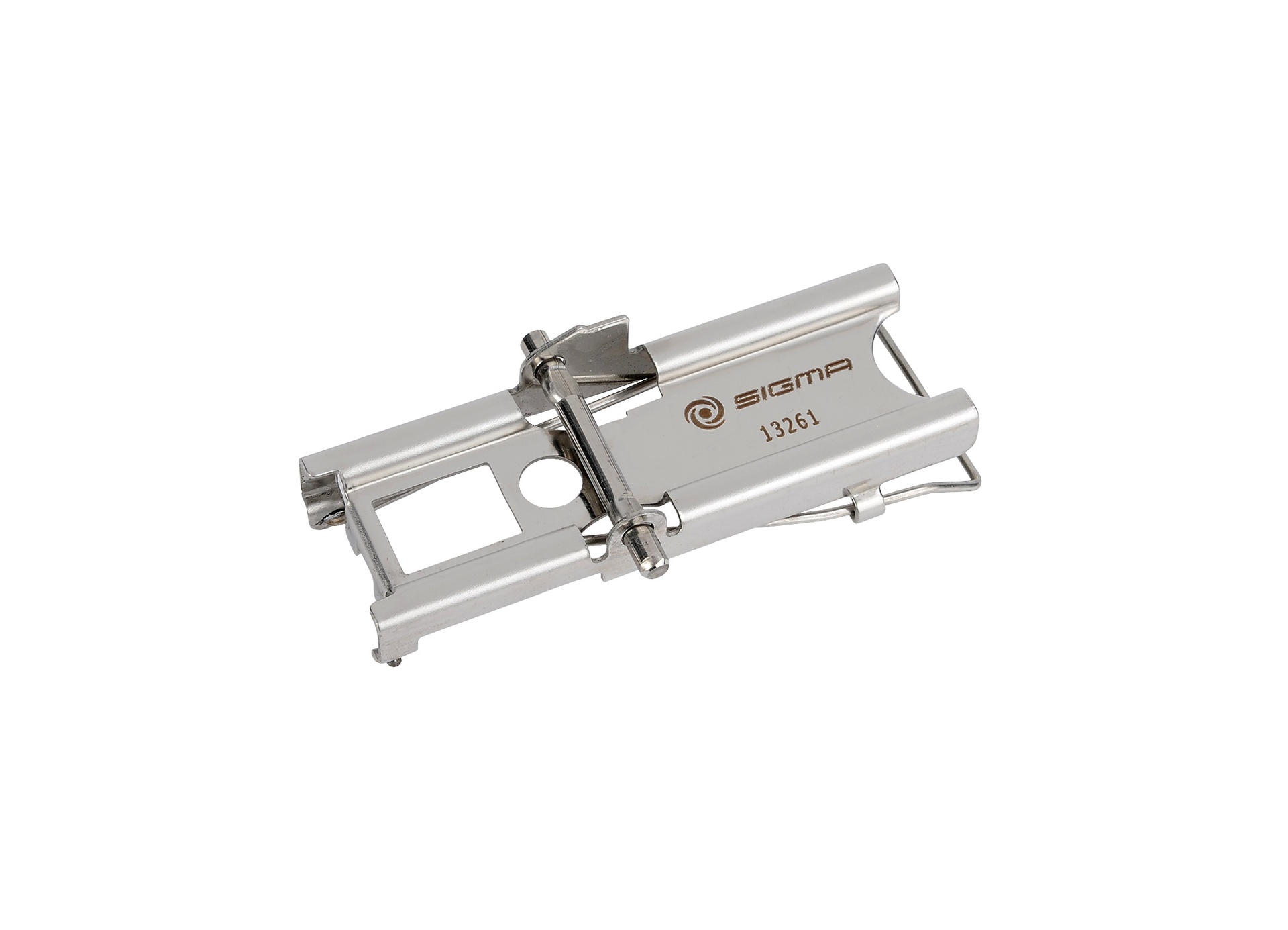

    Stainless steel clip type 390 Shandon™
    SIGMA

    Stainless steel clip type 390 Shandon™

    Reference : SIG-13261

    Stainless steel clips to be used in 11261 Shandon™ rotor to spin
    no. 15260 single-use funnel with no. 15261 coated slides
    Disposable sample chamber (pack of 50)
    SIGMA

    Disposable sample chamber (pack of 50)

    Reference : SIG-15260

    Set of 50x one hole disposable chambers for use in Shandon & RESOSPIN® configurations of Sigma 2-7 Cytocentrifuges
    Slide, 1 circle, coated C311-050
    SIGMA

    Slide, 1 circle, coated C311-050

    Reference : SIG-15261

    Set of 50x coated slides with one circle for use in Shandon & RESOSPIN® configurations of Sigma 2-7 Cytocentrifuges
