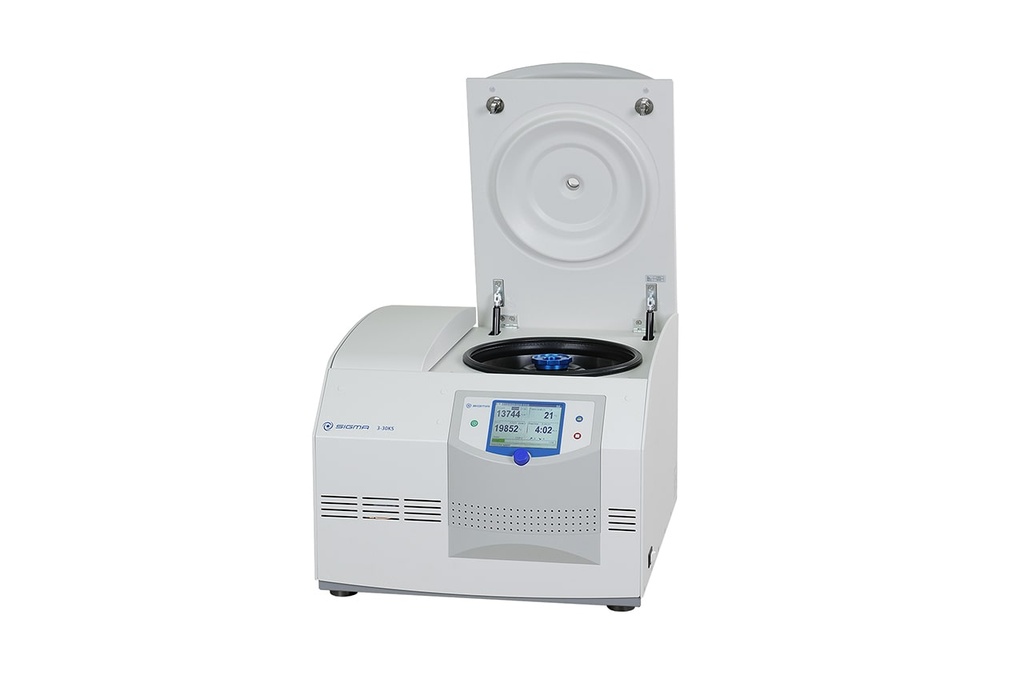

Sigma 3-30KS, refrigerated high speed benchtop centrifuge 220-240 V, 50 Hz

Reference: SIG-10375

https://www.analis.com/web/image/product.template/23894/image_1920?unique=689d05d

Outstanding high speed performance
High speed and easy operation. With its patented one-button control (Spincontrol S) and motorized lid lock, the Sigma 3-30KS centrifuge is remarkably easy to use, and it offers a broad range of options. LED illumination, a choice of six languages, a maximum RCF of over 70,000 x g and pleasantly low-noise operation are the factors that make this centrifuge, which fills the niche between standard and ultra centrifuges, so unique.


What makes the Sigma 3‑30KS high speed centrifuge so attractive?
The special drive system of the Sigma 3‑30KS is specifically designed for use at very high speeds. This concept allows the high-speed centrifuge to achieve RCF values above 70,000 x g with microlitre tubes.
This high-speed centrifuge also has a high-performance refrigeration system. Centrifuging at temperatures below 0°C is possible, depending on the rotor and the speed.

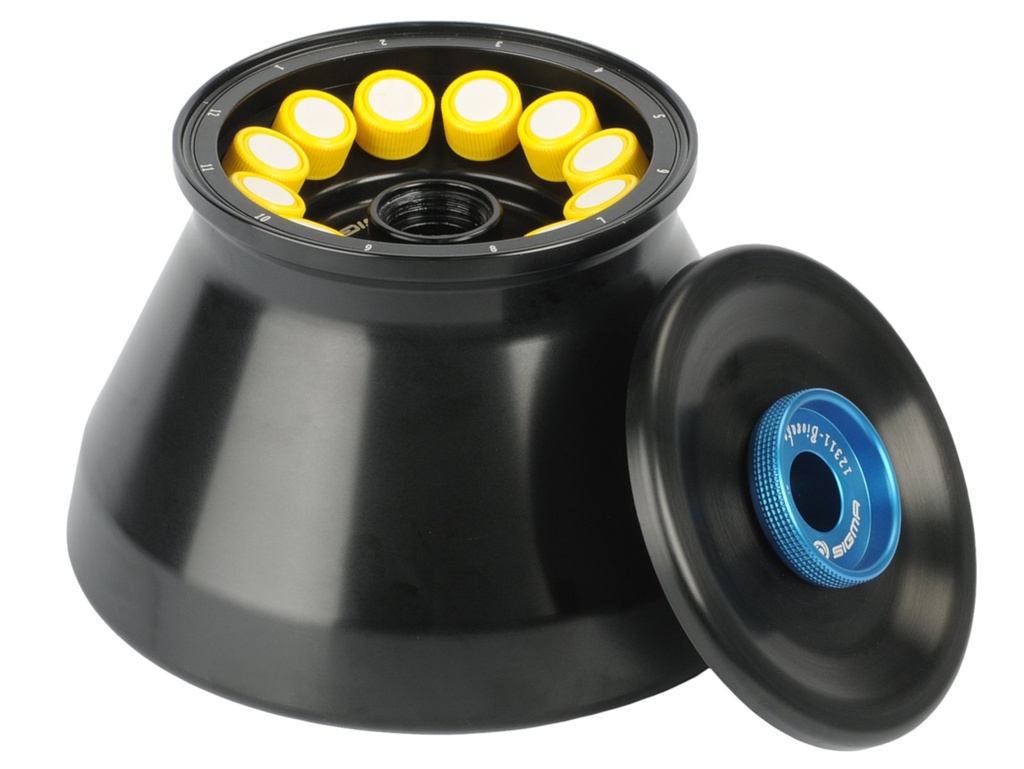

A total of 20 rotors are available, along with a broad range of accessories. The tube capacities extend from 0.2 ml to 94 ml in fixed-angle rotors or 0.2 ml to 100 ml in swing-out rotors. Microtiter and deepwell plates can also be centrifuged.

Ideal for high-speed applications in cellular biology, molecular biology, diagnostics, nanotechnology, and genetics research.


The Sigma 3‑30KS is also available as the Sigma 3‑30KHS refrigerated and heated centrifuge. An inert gas port is optionally available for this device series.


Controller Specifications:

  • Programs: 60
  • Acceleration curves: 10 linear, 10 quadratic, 10 user definable
  • Deceleration curves: 10 linear, 10 quadratic, 10 user definable
  • Cycle counting: Yes

    This combination does not exist.

    Technical information

    Max. capacity [ml]
    swing-out rotor4 x 100
    fixed-angle rotor6 x 94
    Max. RCF70.121
    Max. speed [rpm]30.000
    Min. speed [rpm]100
    Noise level at maximum speed (approximate) [dB(A)]
    fixed-angle rotor 12370≤ 57
    swing-out rotor 11171
    with bucket 13299 + Cover    		≤ 53
    Max. acceleration time [s]
    fixed-angle rotor 12370≤ 45
    swing-out rotor 11171
    with bucket 13299 + Cover    		≤ 19
    Max. braking time [s]
    fixed-angle rotor 12370≤ 53
    swing-out rotor 11171
    with bucket 13299 + Cover    		≤ 13
    Temperature setting range [°C]-20 – +40
    Power consumption [W]1.800
    Height x Width x Depth [mm]464 x 570 x 643
    Height with open lid [mm]890
    Weight without rotor [kg]100
