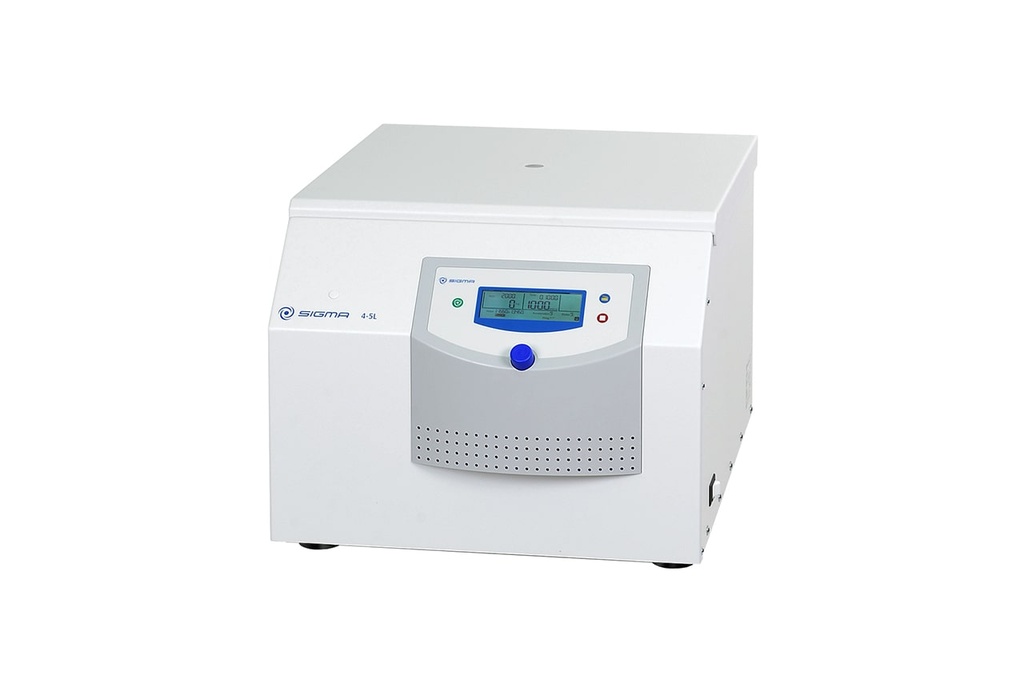

Sigma 4-5L, laboratory benchtop centrifuge 220-240 V, 50/60 Hz

Reference: SIG-10405

https://www.analis.com/web/image/product.template/23656/image_1920?unique=7be3088

High performance, low noise and high capacity

The main strength of the Sigma 4-5L centrifuge is its high throughput capacity, which is a key factor for hospital use. Other advantages of this laboratory centrifuge include high motor torque for fast acceleration, minimal temperature rise and low operating noise level.

The Sigma 4-5L combines unusually high performance with quiet operation. Automatic lid opening and one-button control make things even easier for users, and the stainless steel rotor chamber is especially easy to clean.

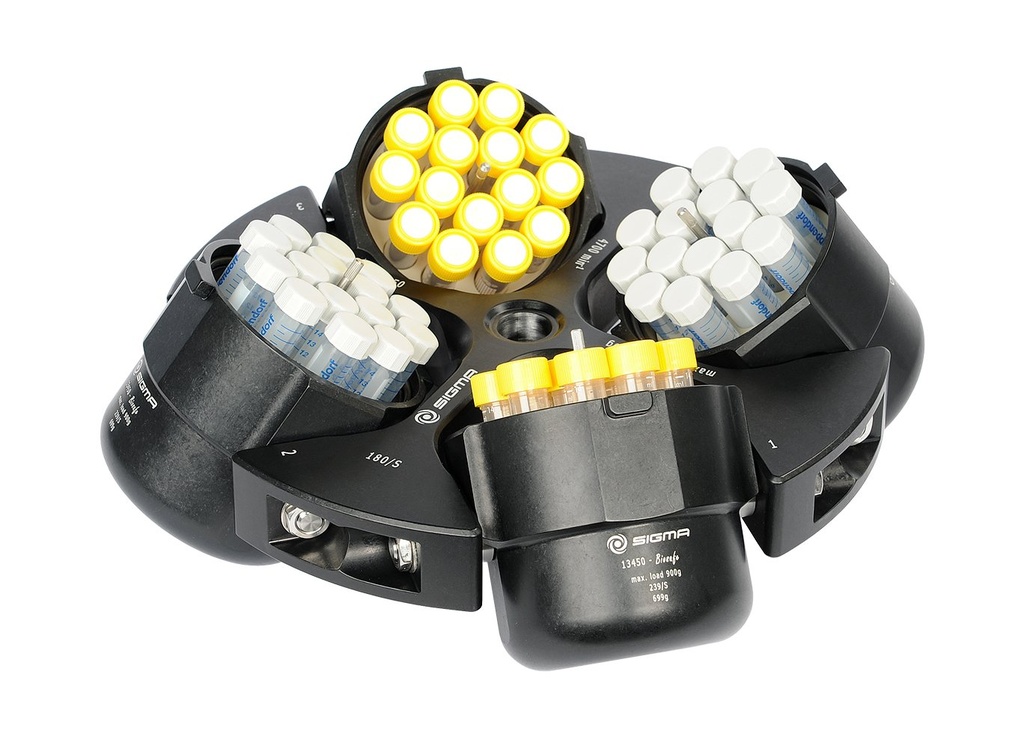

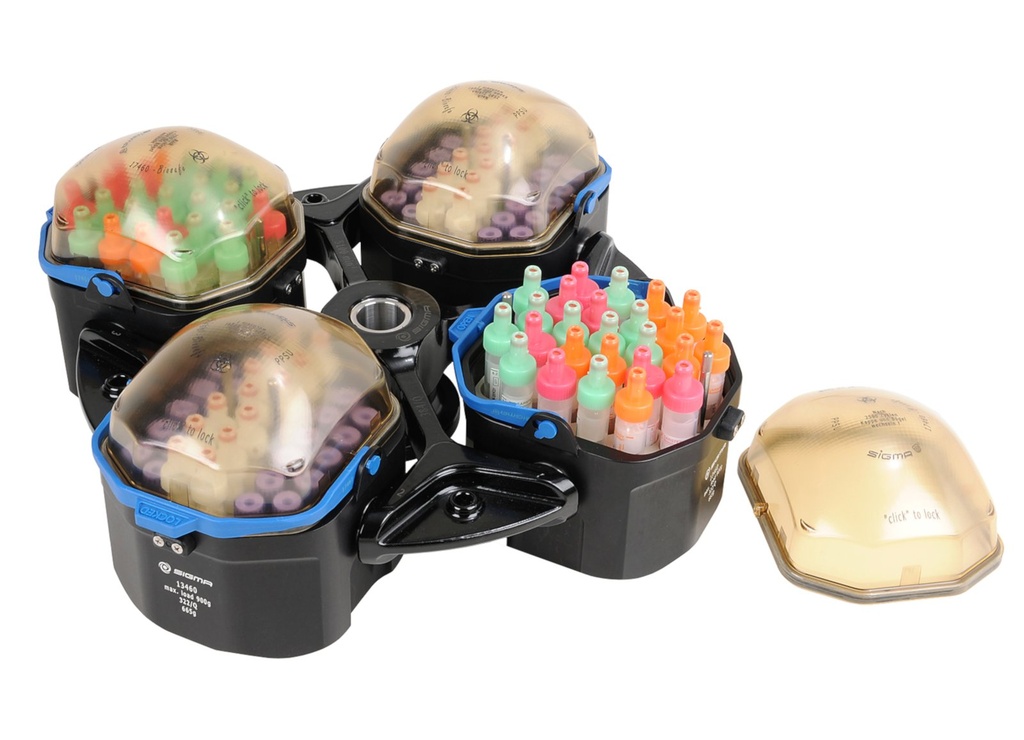

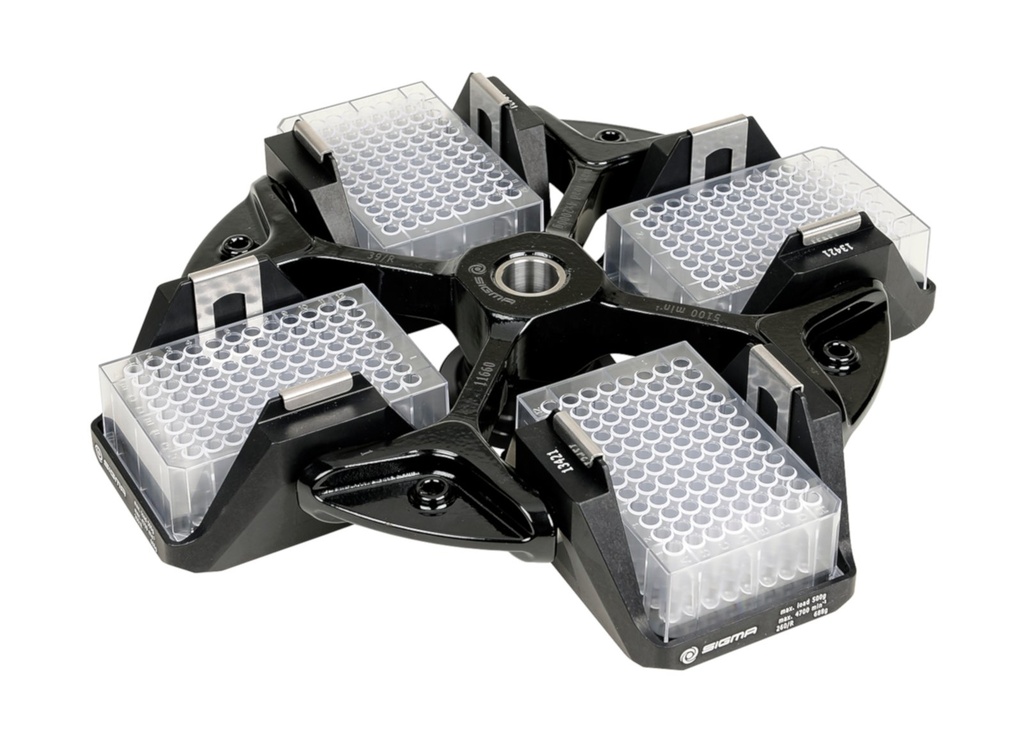

The extensive range of accessories is impressive. Along with tubes and flasks from 1.5 to 750 ml, it includes buckets to hold microtiter and deepwell plates. With RCF values up to 4,643 x g, the Sigma 4‑5L is also well suited to centrifuging gel tubes. The maximum capacity per run of blood collection tubes for clinical in vitro diagnostics (IVD) is outstanding. For instance, it can hold up to 144 blood collection tubes with 13 mm diameter or 100 blood collection tubes with 16 mm diameter from all known manufacturers. This means the Sigma 4‑5L offers up to 25% more capacity that comparable units in its class.

The Sigma 4‑5L is also available as refrigerated centrifuge and as an IVD model.

Controller Specifications:

  • Programs: 50
  • Acceleration curves: 10
  • Deceleration curves: 10
  • Cycle counting: Yes

    This combination does not exist.

    Technical information

    Max. capacity [ml]
    swing-out rotor4 x 750
    Max. RCF4.643
    Max. speed [rpm]4.700
    Min. speed [rpm]100
    Noise level at maximum speed (approximate) [dB(A)]
    swing-out rotor 11660
    with bucket 13460 + Cover    		≤ 66
    Max. acceleration time [s]
    swing-out rotor 11660
    with bucket 13460 + Cover    		≤ 23
    Max. braking time [s]
    swing-out rotor 11660
    with bucket 13460 + Cover    		≤ 20
    Power consumption [W]1.230
    Height x Width x Depth [mm]390 x 496 x 634
    Height with open lid [mm]880
    Weight without rotor [kg]77


    Related documents

    DOCUMENT NAME

    RELEASE DATE

    DOWNLOAD

    Brochure Sigma 4-5L & 4-5KL EN
    19 / 09 / 2024
    Download icon Download

    Related accessories, consumables & products

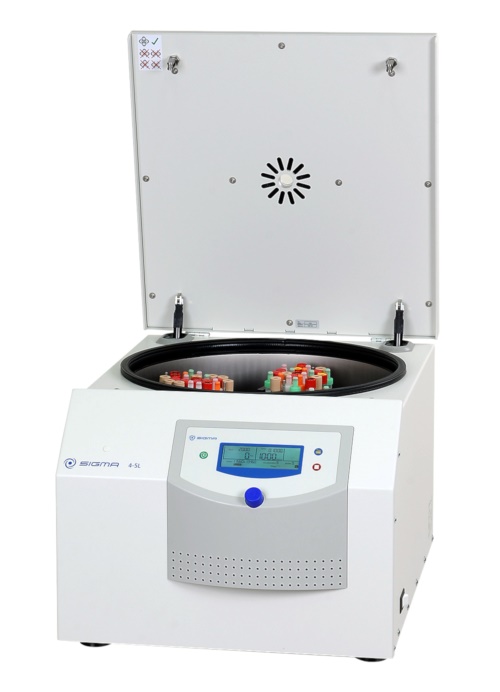

    Sigma 4-5L, laboratory benchtop centrifuge, incl. rotor no. 11660, 4 buckets no. 13460 and 4 adapters no. 18460 or 18461, 220-240 V, 50/60 Hz
    SIGMA

    Sigma 4-5L, laboratory benchtop centrifuge, incl. rotor no. 11660, 4 buckets no. 13460 and 4 adapters no. 18460 or 18461, 220-240 V, 50/60 Hz

    Reference : SIG-1040515

    This Clinical Package includes:

    • 4-5L centrifuge
    • 1 swing-out rotor no. 11660,
    • 2 sets of 2 buckets no. 13460,
    • 2 sets of 2 adapters to choose from among no. 18460 or 18461


    The Sigma 4-5L unrefrigerated centrifuge, like the Sigma 4-5KL refrigerated version, is designed for high throughput laboratories with changing and heavy workloads, respectively. The maximum capacity for blood collection tubes is up to 25% more than in comparable units in their class. Sigma 4-5L with optimized air guidance guarantees low specimen heating and pleasantly quiet running. Sigma 4-5KL scores with energy saving ECO mode feature.

    Highlights

    • Max. 144 tubes
    • 50 programs
    • Monitoring of specimen temperature and alarm function (patented)
    • Short acceleration/deceleration times
    • Motorized lid lock
    • High imbalance tolerance
    • Available as IVD product
