SIGMA

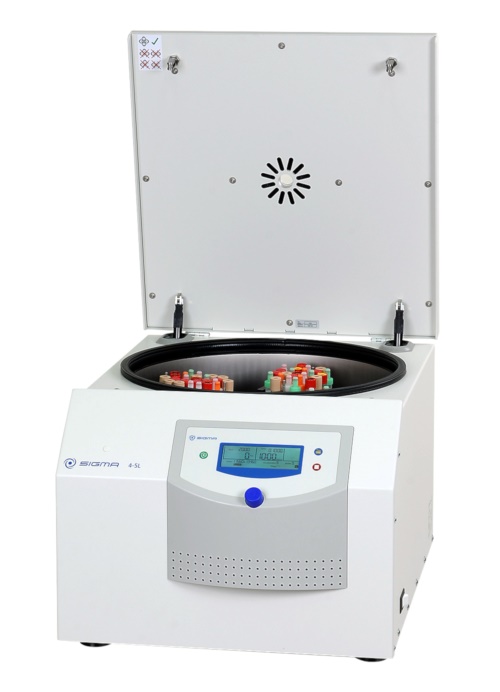

Sigma 4-5L, laboratory benchtop centrifuge, incl. rotor no. 11660, 4 buckets no. 13460 and 4 adapters no. 18460 or 18461, 220-240 V, 50/60 Hz

Reference: SIG-1040515

https://www.analis.com/web/image/product.template/26584/image_1920?unique=689d05d

This Clinical Package includes:

  • 4-5L centrifuge

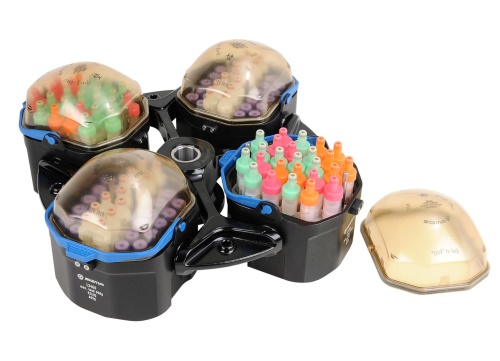

  • 1 swing-out rotor no. 11660,
  • 2 sets of 2 buckets no. 13460,
  • 2 sets of 2 adapters to choose from among no. 18460 or 18461


The Sigma 4-5L unrefrigerated centrifuge, like the Sigma 4-5KL refrigerated version, is designed for high throughput laboratories with changing and heavy workloads, respectively. The maximum capacity for blood collection tubes is up to 25% more than in comparable units in their class. Sigma 4-5L with optimized air guidance guarantees low specimen heating and pleasantly quiet running. Sigma 4-5KL scores with energy saving ECO mode feature.

Highlights

  • Max. 144 tubes
  • 50 programs
  • Monitoring of specimen temperature and alarm function (patented)
  • Short acceleration/deceleration times
  • Motorized lid lock
  • High imbalance tolerance
  • Available as IVD product

    This combination does not exist.

    Technical information

    Max. capacity [ml]
    swing-out rotor4 x 750
    Max. RCF4.643
    Max. speed [rpm]4.700
    Min. speed [rpm]100
    Noise level at maximum speed (approximate) [dB(A)]
    swing-out rotor 11660
    with bucket 13460 + Cover    		≤ 66
    Max. acceleration time [s]
    swing-out rotor 11660
    with bucket 13460 + Cover    		≤ 23
    Max. braking time [s]
    swing-out rotor 11660
    with bucket 13460 + Cover    		≤ 20
    Power consumption [W]1.230
    Height x Width x Depth [mm]390 x 496 x 634
    Height with open lid [mm]880
    Weight without rotor [kg]77



    Related documents

    DOCUMENT NAME

    RELEASE DATE

    DOWNLOAD

    Brochure Sigma 4-5L & 4-5KL EN
    19 / 09 / 2024
    Download icon Download
