SIGMA

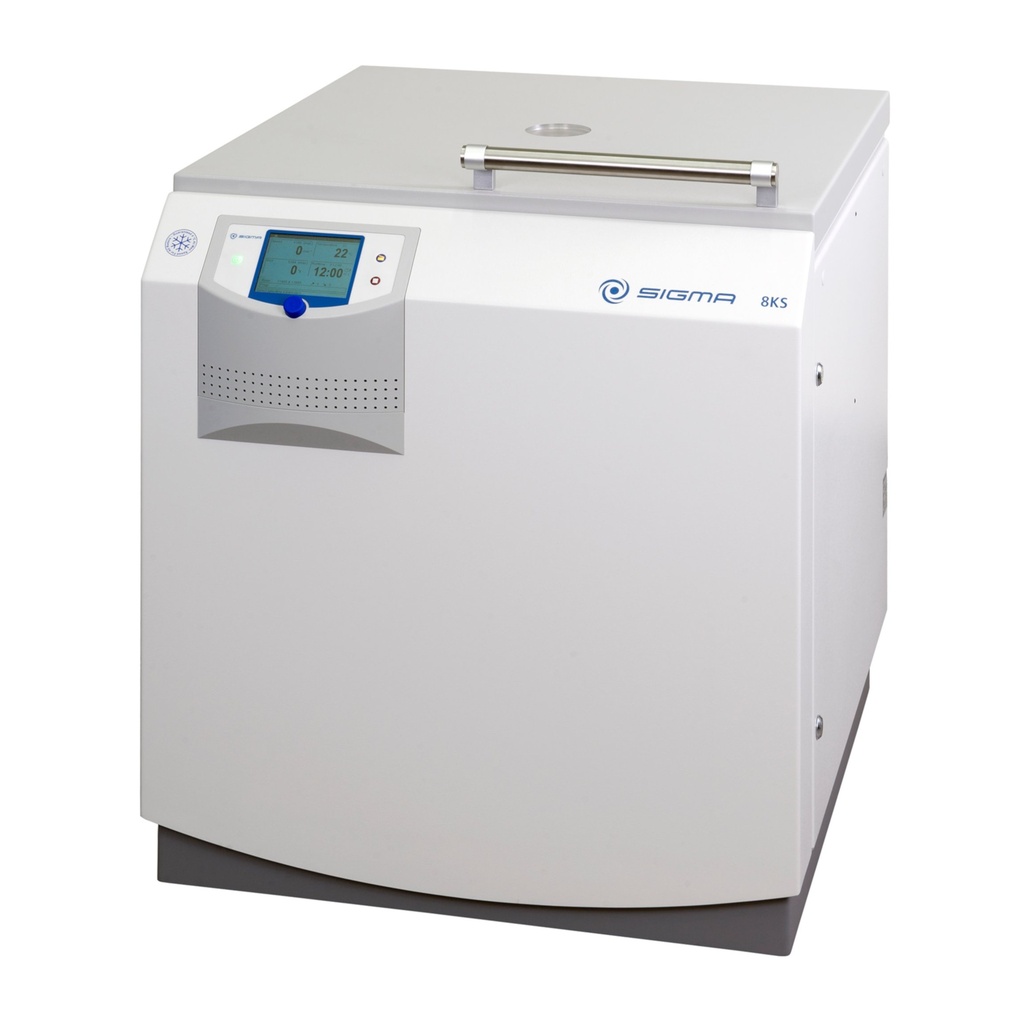

Sigma 8KS, floorstanding refrigerated centrifuge, aircooled compressor, 3 x 400 V, 50 Hz

Reference: SIG-10631

https://www.analis.com/web/image/product.template/25486/image_1920?unique=6ddfcff

12 litre capacity for production or  high-capacity research

The Sigma 8KS is a refrigerated floor-standing compact stand-alone refrigerated  centrifuge that is ideal for all-purpose use in the industrial or for all tasks in blood banks, medicine and research sectors. This high-performance centrifuge features impressive capacity of up to 12 x 1,000 ml in a swing-out rotor or 6 x 1,000 ml in a fixed-angle rotor. With a maximum RCF of 20,461 x g, even demanding separation processes can be handled efficiently. Particularly thanks to the ability to use large-volume fixed-angle rotors with high RCF, the Sigma 8KS cover a distinctly broader spectrum of applications compared to competitive units.

The motorized lid lock and its patented one-button control (Spincontrol S) makes the Sigma 8KS especially easy to use. The centrifuge has a low loading height, is pleasantly quiet in operation, and has low power consumption.

This Air-cooled version with  compressor is also available in water-cooled version.

    This combination does not exist.

    Technical information



    Max. capacity [ml]
    swing-out rotor12 x 1.000
    fixed-angle rotor6 x 1.000
    Max. RCF20.461
    Max. speed [rpm]10.500
    Min. speed [rpm]100
    Noise level at maximum speed (approximate) [dB(A)]
    fixed-angle rotor 12510 with lid 17892
    In item no. 10631 / 10633    		≤ 67 / 54
    swing-out rotor 11805
    with bucket 13850 In item no. 10631 / 10633    		≤ 57 / 55
    Max. acceleration time [s]
    fixed-angle rotor 12510 with lid 17892≤ 82
    swing-out rotor 11805
    with bucket 13850    		≤ 59
    Max. braking time [s]
    fixed-angle rotor 12510 with lid 17892≤ 93
    swing-out rotor 11805
    with bucket 13850    		≤ 83
    Temperature setting range [°C]-20 – +40
    Power consumption [W]6.500
    Height x Width x Depth [mm]980 x 810 x 910
    Height with open lid [mm]1.690
    Weight without rotor [kg]450
    RefrigerantR452A
    Charge [kg] / Pressure [bar]2,280 / 28
    CO2 equivalent [t]4,879
