SONICS

130 watt Ultrasonic processor

Reference: SON-VCX-130A-220

https://www.analis.com/web/image/product.template/29322/image_1920?unique=689d05d

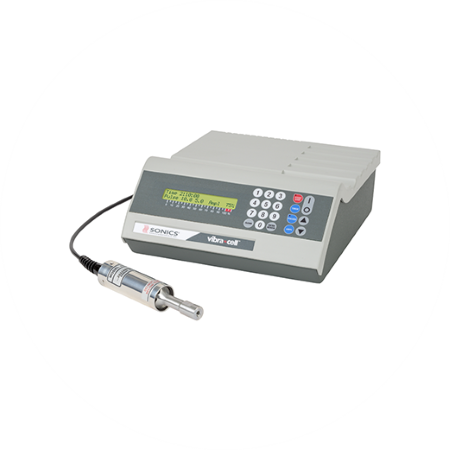

The VCX 130 is a laboratory-scale 130 watt model, programmable ultrasonic processor, and our most popular small volume system.

This model offers the same programmability as larger VCX versions.

The 1/4" probe (10 – 50 mL volumes) is included with the VCX 130, and a variety of accessories are available for various applications and sample volumes.

Part No. VCX 130A can be used to order the system without the standard probe.

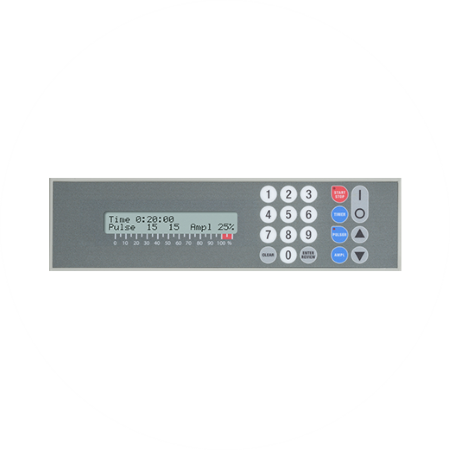

Features:

  • Programmable
  • Pulse mode
  • 10 hour timer
  • Variable power output
  • Wattage and Energy display

    This combination does not exist.

    Technical information

    Power Output 130 watt maximum
    Frequency 20kHz
    Dimensions H x W x D: 115 x 250 x 320mm
    Converter Cable Permanently attached
    Length 1.5m
    Ultrasonic Converter Part #CV18
    Diameter 32mm
    Length 146mm
    Tool Kit Part #888-00026 open end wrench (2 included)
    Standard Probe Part #630-0435
    Tip Diameter 6mm
    Length 137mm
    Material Ti6Al4V titanium alloy
    Optional:

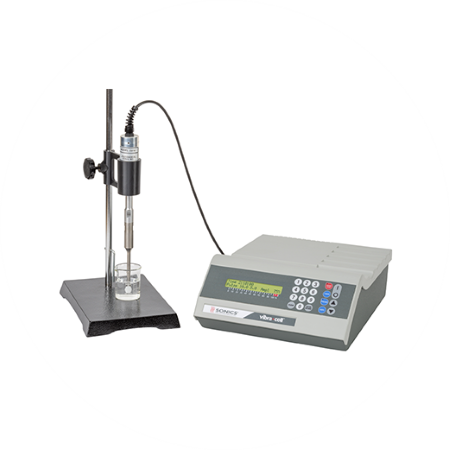

    Stand with Clamp Part #830-00460
    Sound Enclosure Part #830-00451


    Related documents

    DOCUMENT NAME

    RELEASE DATE

    DOWNLOAD

    Datasheet Sonics VCX130 EN
    28 / 10 / 2024
    Download icon Download
