TRIMOS

V5-400 for workshop

Reference: TRI-700 110 10 05

The height gauge V5-400 vertical measuring instruments is the descendants of the legendary V+ line, from which thousands of units have already been sold in workshops all over the world and are universally recognized for their easy use and their high quality.

Trimos was the first to offer vertical measuring instruments on the market more than 50 years ago. The V5 represents a consolidation of know-how accumulated over the years. The very legible display and the user-friendly functions offer exceptional comfort. But that’s not it:
The V5 is equipped with a revolutionary displacement handwheel, which offers its user the choice of the displacement mode of the measuring carriage, either manual or motor-driven.
Each one of these modes, suffers from no compromise, which means that the user who prefers a manual instrument will not notice a difference with a classic manual instrument, and the same applies to the motor-driven displacement. This innovation avoids having to make a difficult choice during the purchase and can accommodate multiple potential users with the same instrument.

Measuring ranges 400mm
Extremely easy to use
Electronically adjustable measuring force
Manual or motor-driven displacement
Larger than 300 mm probes as standard
Vast range of accessories
All adjustments possible without tools
RS232 and USB interfaces

Request more information

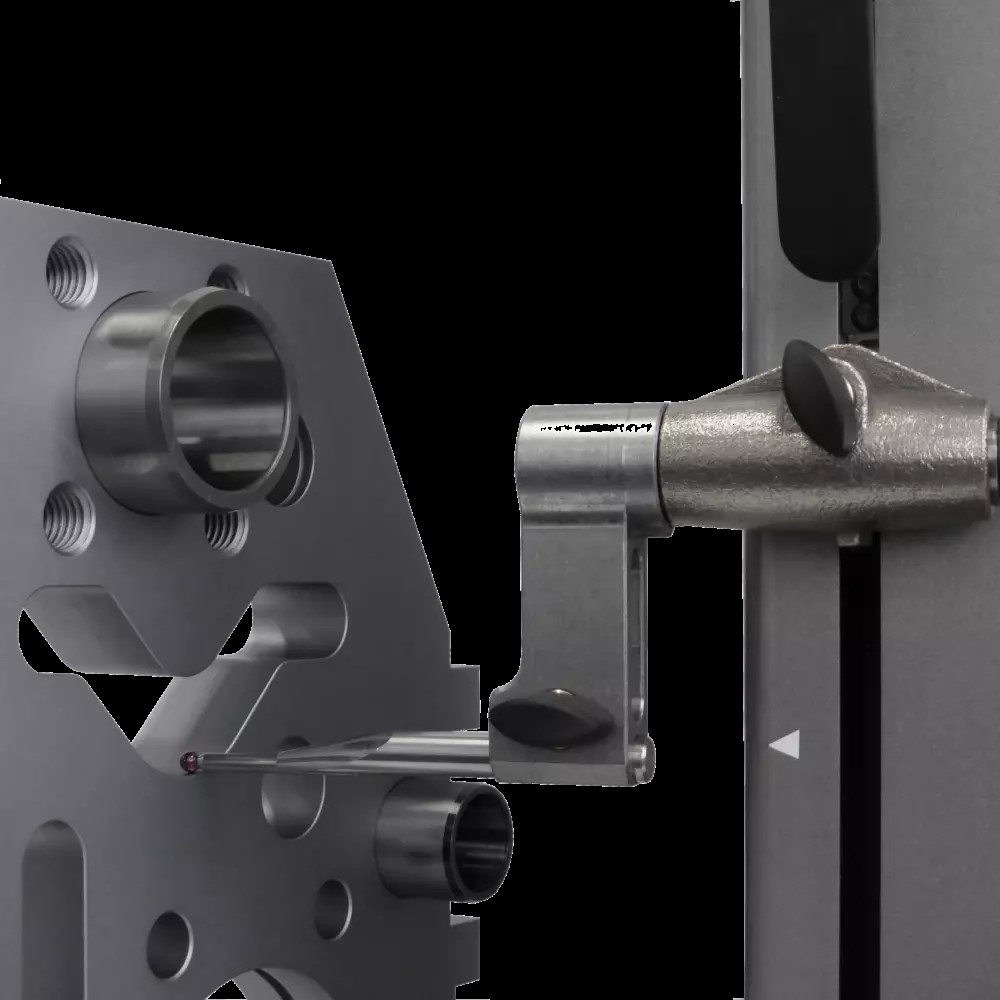

V5-400 Easy detection of min, max points or flatness of a surface

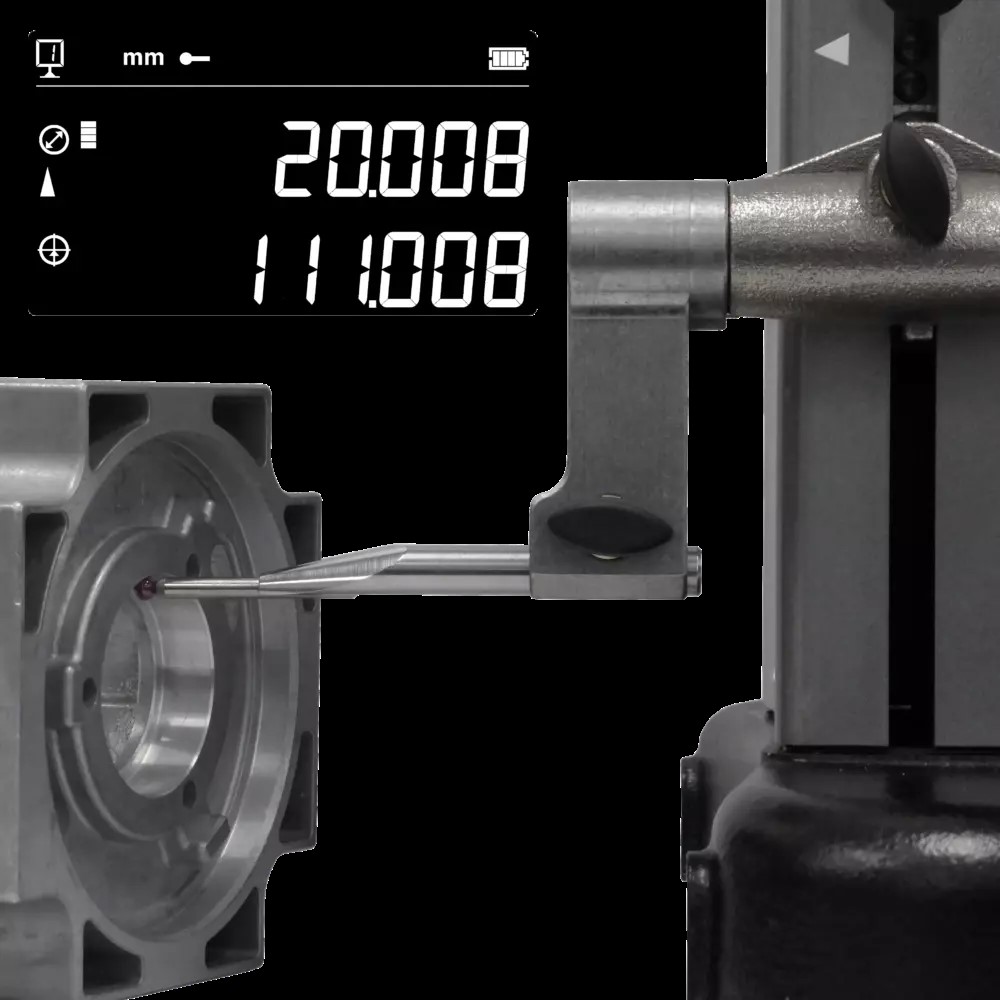

V5-400 Simultaneous display of diameter and centerline

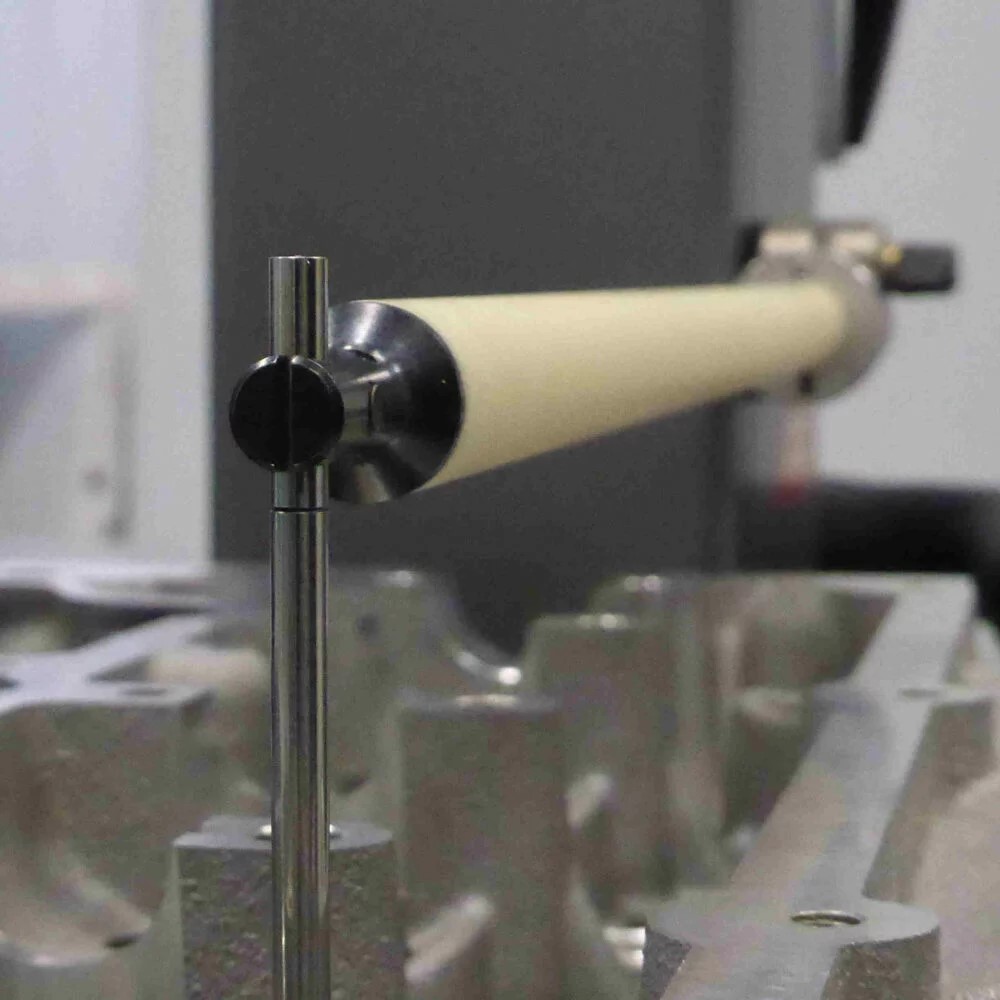

V5-400 standard measuring inserts up to 400 mm with excellent repeatability

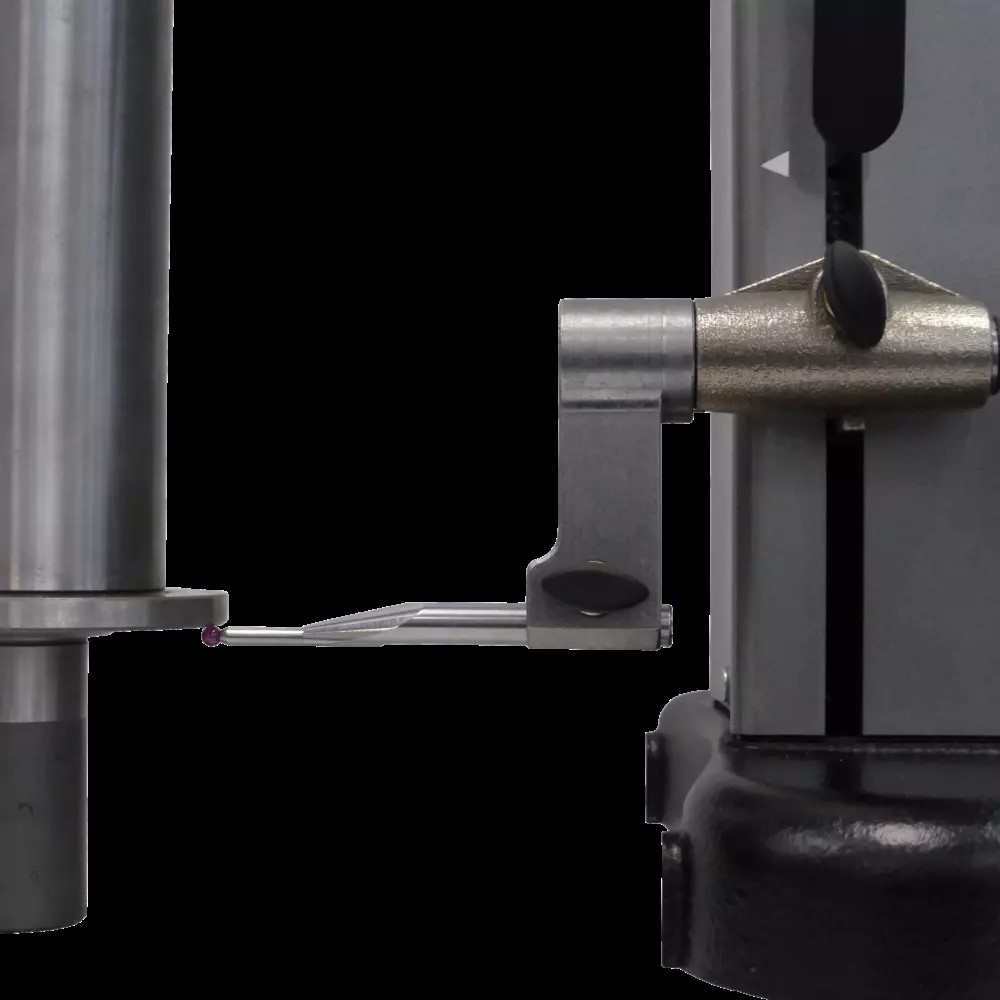

V5-400 height - thickness and chain dimensions measurements

Technical information

Measuring range	mm (in)	407 (16)
Measuring range with extension	mm (in)	719 (28)
Max permissible errors, BMPE	µm	2.5 + L(mm)/300
Repeatability, RMPE (2s)	µm	2
Frontal squareness deviation SMPE	µm	5
Max. Resolutions	mm	0.001 (0.00005)
Measuring force	N	0.75 ÷ 1.5
Autonomy	h	12
Interfaces		USB / RS232
Air cushion		Yes
Weight	kg	21

Note: The above values have been determined according to ISO 13225, with the standard measuring insert (TA-MI-101).
