A wide range of Swiss Quality 1D & 2D Height Gauges with Trimos

The height gauge is an instrument for dimensional measurement of all kinds of mechanical parts. It is mainly used in the workplace to provide a quick and easy measurement of parts in production, directly by the operator.

Lengths, distances, diameters and squareness are part of the essential features. The most sophisticated models offer advanced features such as 2D measurement, statistics or programming and temperature compensation.

Precisions range from 2.5µm down to 1µm and heights up to 1800mm

HEIGHT-GAUGE 1D V-LINE

FOR WORKPLACE

1D height gauges offer basic features such as heights, diameters, center distances, min / max.

It is very appreciated in workplaces for its great simplicity of use.

Download brochure 1D Height-gauges: V3-V4 V5-V6 V8

DISPLAY AND SOFTWARE - 1D MODELS

TRIMOS - DISPLAY AND SOFTWARE - 1D MODELS

The keyboard functions are represented by clear and intuitive symbols. The 2-line display offers the user a great working comfort.

Easy reading at any time thanks to the "Black Mask" display
Measurement of heights or diameters
MIN / MAX / DELTA measurement modes
Reset or Preset of the display
USB and RS232 interfaces
9 references available
Graphical and sonore probing indicator

Select your Height-Gauge

HEIGHT GAUGES 2D V-LINE

FOR LABORATORY AND WORKPLACE

A 2D height gauge offers expanded measuring possibilities with a very high level of user comfort. Thus, the measurements in 2 coordinates, the programming of measurement sequences can be performed very efficiently. Laboratories & workplaces where measuring reliability is decisive will fully appreciate the exceptional precision level of the Trimos V7 and V9 models. The V7 and V9 height gauges can also realize more complex measurements thanks to their additional 2D measurement functions with easy graphical interface.

Download brochure 2D Height-gauges V7 - V9:

DISPLAY AND SOFTWARE - 2D MODELS

Trimos DISPLAY AND SOFTWARE - 2D MODELS

The tablet-type display and graphic interface correspond to the most modern industrial standards. The great flexibility offered by the touch screen allows an easy and fast use.

Very simple graphic interface
Exceptional readability
2D mode measurement
Measurement sequences
Statistical analysis of results
Integrated online help
Temperature compensation

Select your Height-Gauge

Trimos Smart Reverse

SIMPLICITY OF DIAMETER MEASUREMENT
Developed on Trimos height gauges, the Smart Reverse technology allows the optimization of the diameter measurements.

Ask our experts

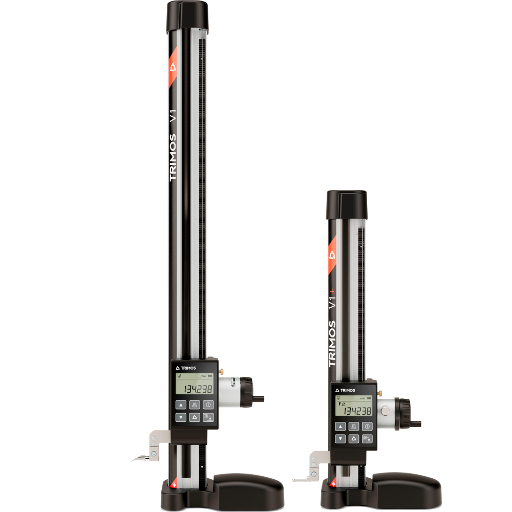

NEW TRIMOS V1 and V1+ : The missing link has arrived!

In the evolving landscape of dimensional metrology, these entry-level instruments are masterfully designed to serve as the perfect bridge between the traditional world of scribers and the advanced realm of height gauges, embodying the Swiss commitment to precision, reliability, and user-friendly design.

What's new with V1 & V1+ ?

Of course, they have all the advantages of their big sisters:
✅ Robust and Easily Portable
✅ Clear, Simple User Interface
✅ Counterweight for Operational Comfort
✅ Quick and Smooth Carriage Movement
✅ Designed and manufactured in Switzerland
✅ Bidirectional and Diameter Measurement Capability (V1+)
✅ Measuring Force Management (V1+)
✅ Available in 300 and 600 mm models

Download the V1 / V1+ brochure

Ask our experts

V1: Ideal for those taking their first steps into precision measurement. The V1 simplifies unidirectional measurements and tracing with remarkable ease. It offers a seamless transition for users accustomed to manual scribers, upgrading their toolset without sacrificing simplicity and robustness. This instrument is crafted to endure, embodying the Swiss ethos of durability and precision, with features tailored for immediate application.

V1+ : This model takes the foundational qualities of the V1 to new heights, catering to those looking to broaden their measurement capabilities. It introduces bi-directional measurement, which brings added versatility without necessitating extra accessories. It also features advanced fine adjustment and a constant measuring force, both critical for improving measurement precision.

Our products

TRIMOS

V5-400 for workshop

Reference : TRI-700 110 10 05

The height gauge V5-400 vertical measuring instruments is the descendants of the legendary V+ line, from which thousands of units have already been sold in workshops all over the world and are universally recognized for their easy use and their high quality.

Trimos was the first to offer vertical measuring instruments on the market more than 50 years ago. The V5 represents a consolidation of know-how accumulated over the years. The very legible display and the user-friendly functions offer exceptional comfort. But that’s not it:
The V5 is equipped with a revolutionary displacement handwheel, which offers its user the choice of the displacement mode of the measuring carriage, either manual or motor-driven.
Each one of these modes, suffers from no compromise, which means that the user who prefers a manual instrument will not notice a difference with a classic manual instrument, and the same applies to the motor-driven displacement. This innovation avoids having to make a difficult choice during the purchase and can accommodate multiple potential users with the same instrument.
