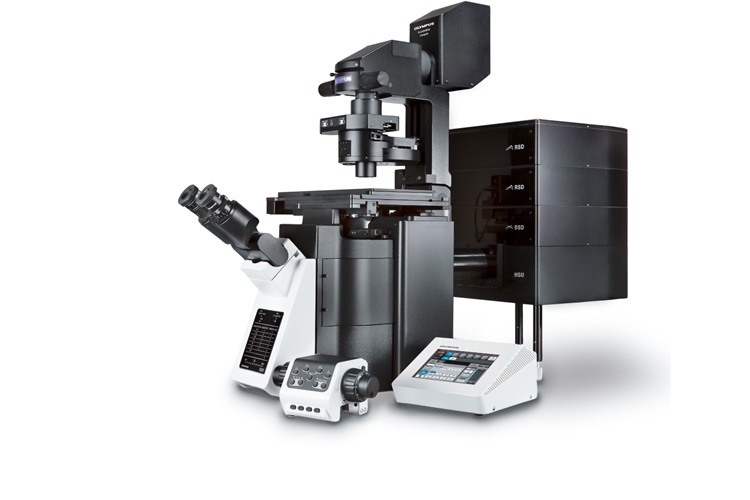

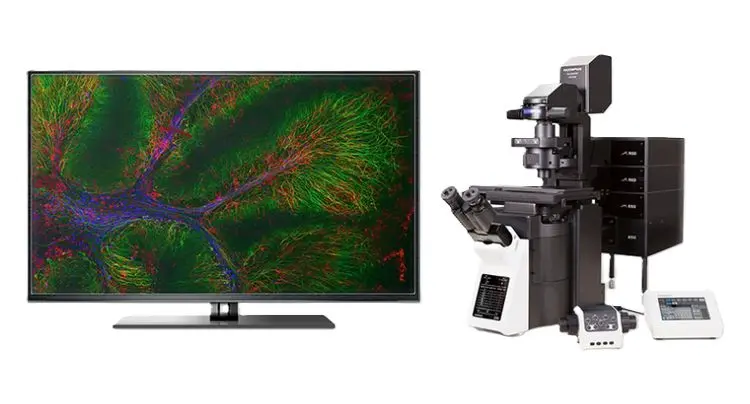

FV4000 Confocal Laser Scanning Microscope

Reference: EVI-FV4000

https://www.analis.com/web/image/product.template/129851/image_1920?unique=e41fb56
High-performance confocal microscope system for advanced fluorescence imaging.
The Olympus / Evident Fluoview FV4000 delivers high-speed, high-sensitivity scanning from macro structures to subcellular detail—with unmatched signal fidelity.

  • TruSpectral technology allows simultaneous multiplexing of up to 6 channels
  • Industry-leading 10-laser system (405–785 nm) with powerful NIR capabilities up to 900 nm
  • Dual scanner system offers fast resonant and high-resolution galvo scanning with improved depth and speed
  • SilVIR detectors provide stability and reproducibility across sessions
  • Suitable for both fixed and live-cell imaging
Built for the demands of modern life science labs.

Download the full brochure or technical sheet for complete configuration options and specifications.

Contact Analis application specialists to receive personalized system proposal or organize a demo.

    This combination does not exist.

    Technical information

    Category Specification

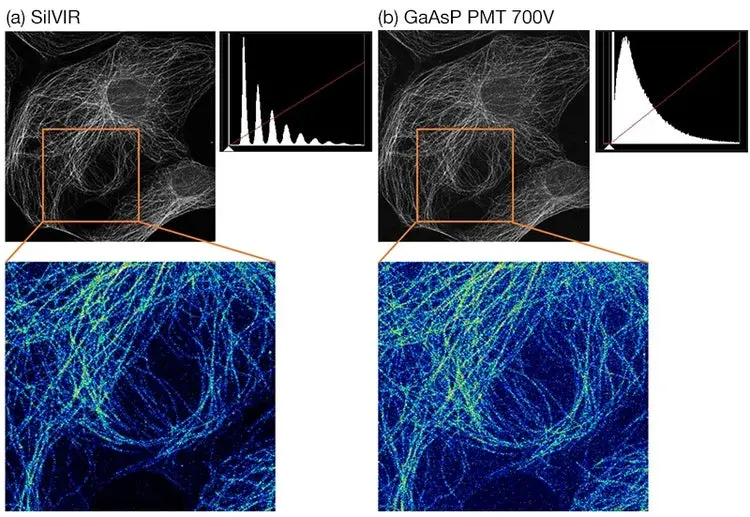

    Detector Type SilVIR™ cooled silicon photomultiplier (SiPM), broadband or red-shifted
    Spectral Detection 400–900 nm (1 nm resolution)
    Scanning Modes Galvo: up to 4096×4096 px; Resonant: 512×512 / 1024×1024 px
    Laser Lines VIS: 405–640 nm; NIR: 685–785 nm
    Multiplexing Up to 6 simultaneous channels; 16 sequential with TruSpectral
    Super-Resolution ~120 nm (Olympus OSR, no additional hardware)

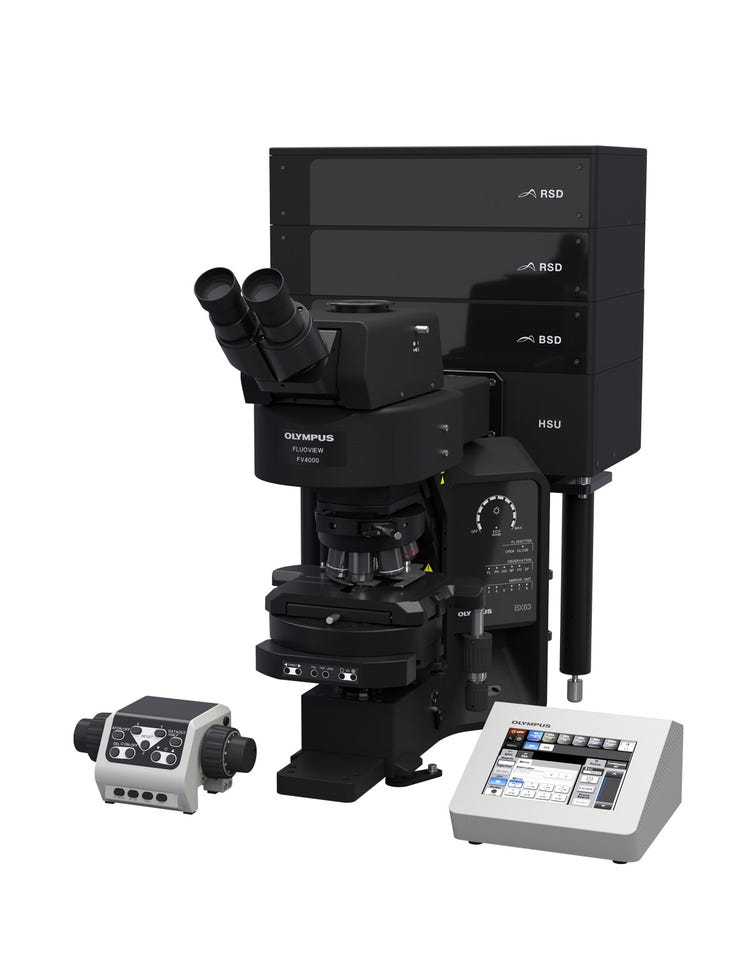

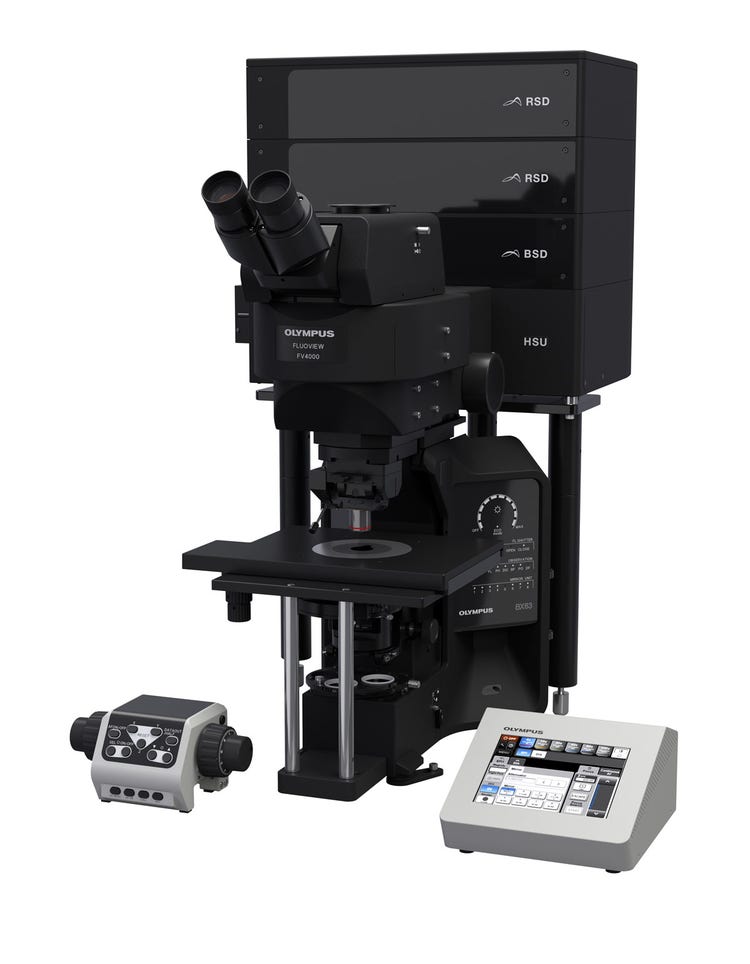

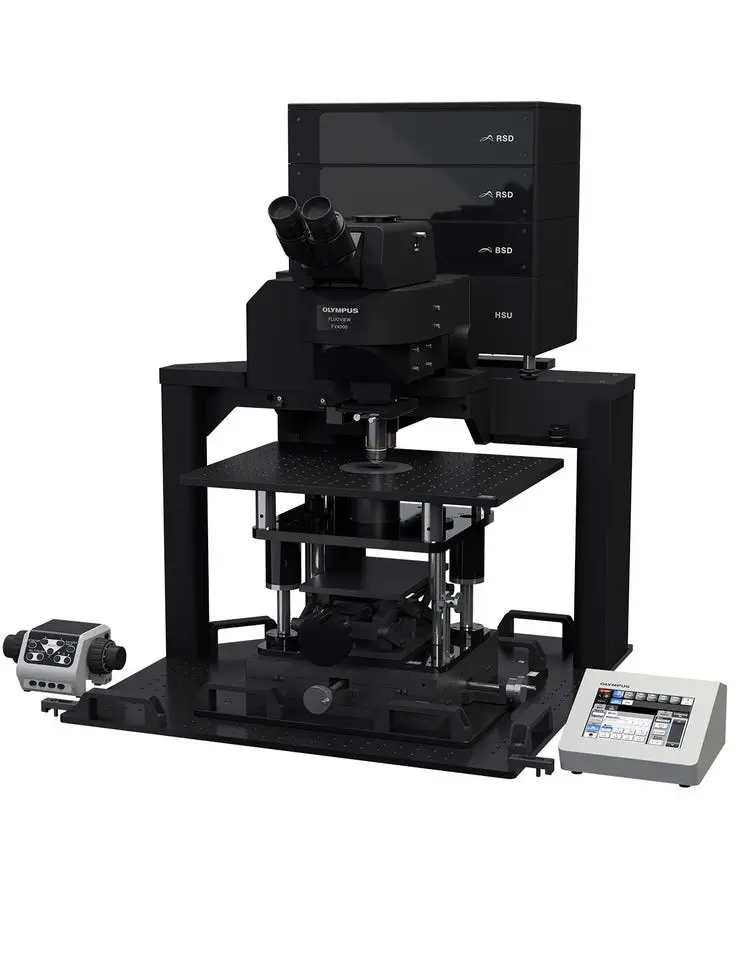

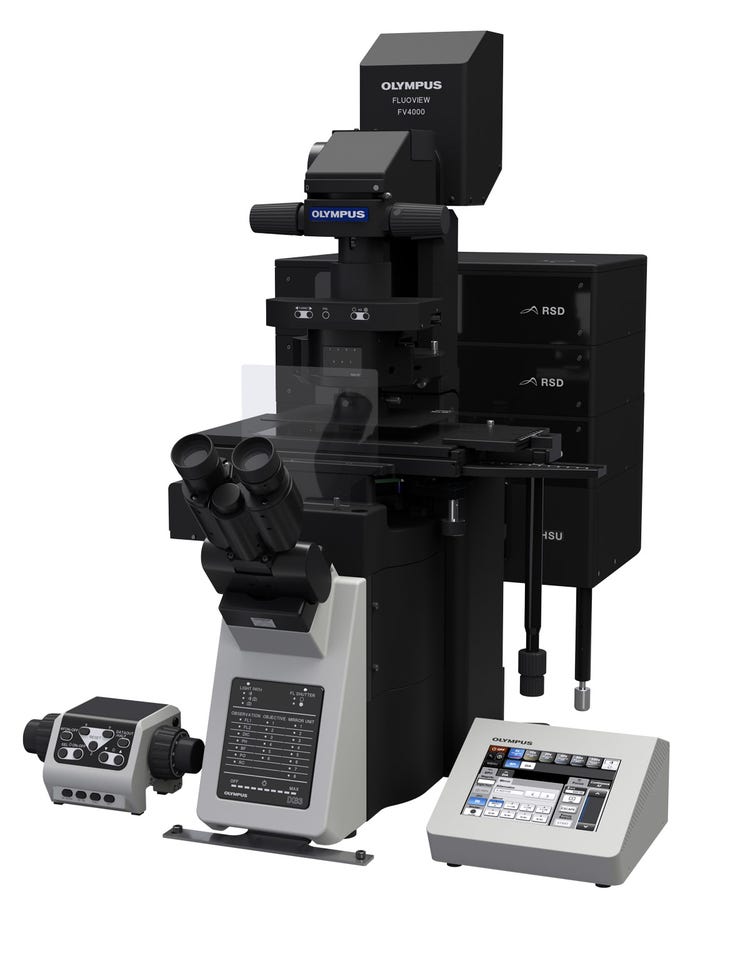

    Microscope Frames Inverted, upright, or gantry configuration
    User Interface Intuitive software with real-time acquisition and spectral tuning
    Performance Monitoring Built-in monitoring of laser power and detector performance
    Modularity Scalable platform with upgrade paths for lasers, detectors, and imaging options
    Width × Depth × Height ~650 mm × 950 mm × 750 mm (standard inverted configuration) *
    System Weight ~120–150 kg depending on configuration and frame
    *Final dimensions and weight may vary based on frame type, number of lasers, and accessories.

    Related documents

    DOCUMENT NAME

    RELEASE DATE

    DOWNLOAD

    Brochure EVIDENT FV4000 Confocal Laser Scanning Microscope EN.pdf
    26 / 03 / 2025
    Download icon Download

    Related accessories, consumables & products

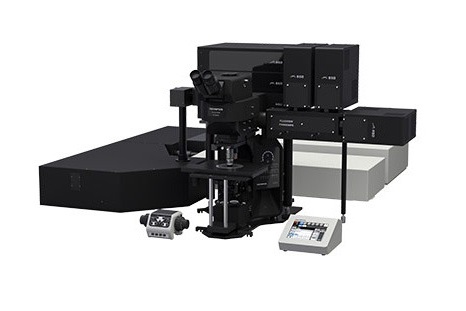

    FV4000MPE Multiphoton Laser Scanning Microscope
    EVIDENT

    FV4000MPE Multiphoton Laser Scanning Microscope

    Reference : EVI-FV4000MPE
    Advanced multiphoton imaging for deep tissue research and live-cell dynamics.
    The Olympus / Evident FV4000MPE system delivers high-resolution, high-speed multiphoton imaging with unmatched depth and signal fidelity for demanding in vivo and in vitro applications.

    • Powered by SilVIR™ detectors for low noise and high photon sensitivity
    • TruResolution™ objectives minimize spherical aberration in deep tissue
    • Resonant scanner enables high-speed, gentle time-lapse acquisition
    • Modular system fits upright, inverted, or gantry configurations
    • Wide spectral range with up to six channels and IR excitation from 690–1300nm
    Ideal for neuroscience, developmental biology, and deep 3D live tissue imaging.

    Ask Analis for a customized solution or live demo.

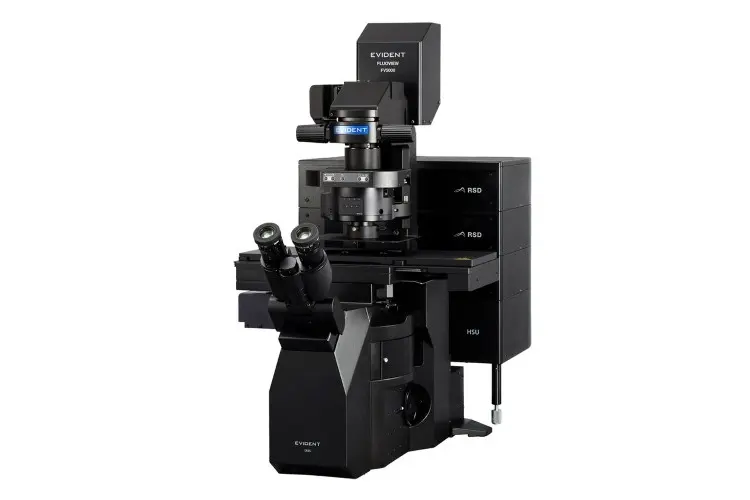

    FV5000 Confocal Laser Scanning Microscope
