EVIDENT

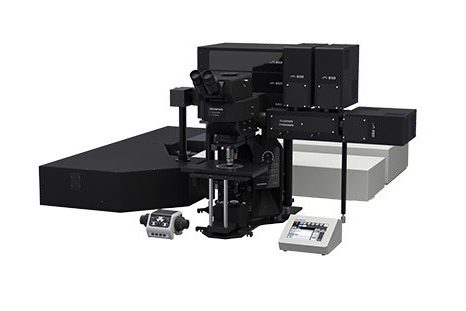

FV4000MPE Multiphoton Laser Scanning Microscope
Reference: EVI-FV4000MPE
https://www.analis.com/shop/evi-fv4000mpe-fv4000mpe-multiphoton-laser-scanning-microscope-129827 https://www.analis.com/web/image/product.template/129827/image_1920?unique=c5c9f7aAdvanced multiphoton imaging for deep tissue research and live-cell dynamics.
The Olympus / Evident FV4000MPE system delivers high-resolution, high-speed multiphoton imaging with unmatched depth and signal fidelity for demanding in vivo and in vitro applications.
- Powered by SilVIR™ detectors for low noise and high photon sensitivity
- TruResolution™ objectives minimize spherical aberration in deep tissue
- Resonant scanner enables high-speed, gentle time-lapse acquisition
- Modular system fits upright, inverted, or gantry configurations
- Wide spectral range with up to six channels and IR excitation from 690–1300nm
Ideal for neuroscience, developmental biology, and deep 3D live tissue imaging.
Ask Analis for a customized solution or live demo.
Technical information
| Specification | Details |
|---|---|
| Detector Type | SilVIR™ (cooled SiPM), broadband or red-shifted type |
| Imaging Depth | Up to 900 µm with high dynamic range and TruResolution optics |
| Scanner Options | Galvanometer (64×64 to 4096×4096 px), Resonant (512×512, 1024×1024 px) |
| Maximum Channels | 6 (spectral & non-descanned detection) |
| Spectral Detection Range | 400–900 nm (VPH grating) |
| Laser Excitation | VIS: 405–640 nm; NIR: 685–785 nm; IR: 690–1300 nm pulsed lasers |
| Imaging Modes | High dynamic range photon counting (1G cps) |
| Frame Compatibility | Upright, inverted, and gantry microscope systems |
| Time-Lapse Imaging | Resonant scanner & SilVIR enable gentle high-speed dynamics capture |
| Software Integration | Olympus cellSens with multiphoton control and imaging automation |
Download the brochure for full technical specifications and configurations.
Contact our local experts for more details, support, or to request a demo or a quote.
