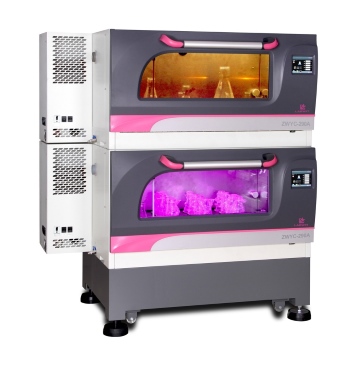

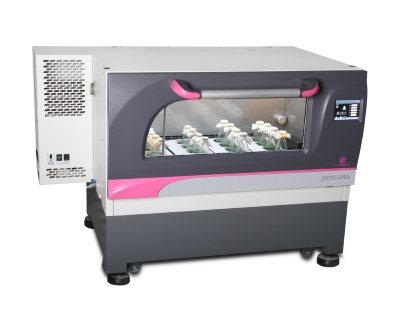

257Lx1 Ultimate-Cell Stackable Shaking Incubator, 4-60, 30-300rpm

Reference: LAB-ZWYC-290A

https://www.analis.com/web/image/product.template/26259/image_1920?unique=00ed4e9

ZWYC-290A Ultimate-Cell stackable shaking incubator is a comprehensive solution with temperature, shaking speed, and optional features, e.g., CO2, humidity, and photosynthetic lighting controls. 5L flask compatible. Touch screen control panel, non-frost cooling system, password encryption door lock, UV light, and USB data output as standard.


Features

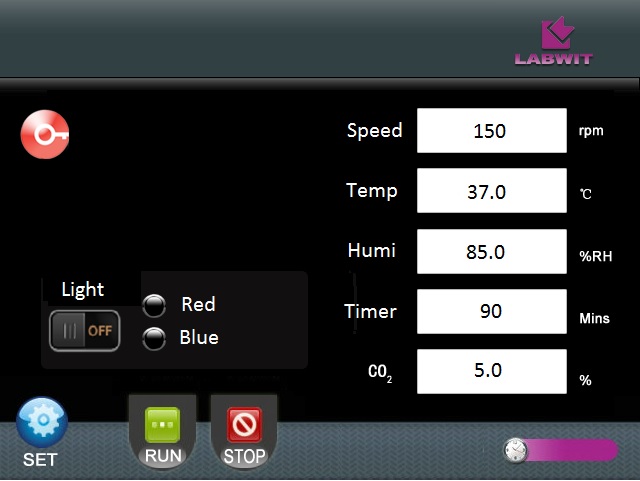

  • Intuitive Touch Screen Panel
  • Direct Beltless Driving System
  • Excellent Temperature Control System
  • Direct Injection Humidification System
  • Advanced CO2 control with Infrared (IR) sensor
  • Extended Chamber Capacity
  • Photosynthetic LED Lighting
  • Contamination Control
  • Data Logging
  • Complete Protection For Cell Culture
  • Password Door Lock System
  • Internal chamber equipped with lighting ensure complete visibility
  • Fully insulated chamber and door with double folded glass window optimize energy efficiency
  • 2pcs of 50 mm diameter access ports
  • One piece of predrilled shaking tray included as standard, clamps excluded
  • Base Options: 35cm cabinet base stand; 50cm Frame base stand

    This combination does not exist.

    Technical information

     Machine
    Outside (WxDxH)1320x870x590mm (Side Cooling)*
    Inside (WxDxH)940x570x480mm
    Volume257L
    Net/Gross Weight
    (with Cooling)    		200kg / 275kg
    Control PanelTFT Touch Screen
    IlluminationHalogen
    Operation Menu LANEnglish
    Ambient Temperature (°C)5-35°C
    UV Light≥400 mW/m²
    Noise Level>70 dB (1m above floor)
    Power1150W
    ElectricityAC 220-240 Volt, 50/60Hz



     Temperature
    Control ModeFixed Value & Program
    Temperature RangeAmbient-15 to 60°C (Min. 4°C)
    Temperature Accuracy0.1°C
    Temperature Uniformity±0.5°C @37°C
    Principle of SensorPT100
    Air Circulation360m³/Hour
    Recovery (@37°C)10 mins (30 Seconds Door Opening)



     Humidity
    Humidity Range40-80%RH, at 25-55°C
    Temperature RangeAmbient-15 to 60°C (Min. 4°C) #
    Humidity Accuracy0.1%RH
    Humidity Uniformity±3%RH
    Principle of SensorCapacitive
    SystemDirect Steam Injection
    Water Heater150W
    Recovery (@70%RH)10 mins (30 Seconds Door Opening)
     # Min. Operating Temperature: 15°C when
    Photosynthetic Lighting option is applied.



     Shaking Unit
    Drive TypeDirect Beltless Driving System
    Tray Size850x450mm
    Maximum Load25kg
    Speed Range30-300 rpm
    Speed Accuracy±1 rpm
    Timer0-9999 mins
    Shaking ModeOrbital
    Shaking Diameter1-50mm Stepless Adjustment



     CO₂
    Principle of SensorInfared, NDIR
    CO₂ Range0-20%
    CO₂ Accuracy±0.15 @ 5.0%g
    Temperature Range25-55°C
    CO₂ Recovery (@5%)5 mins (30 Seconds Door Opening)



     Photosynthetic Lighting
    Part NumberP5011RBP5011W
    Light TypeLED, 50% Red, 50% BlueLED, 100% Warm White
    SpectrumRed: 640-660nm,
    Blue: 430-450nm    		4500k:400-700nm
    Light IntensityUp to 700 μmol/(m2*s)Up to 400 μmol/(m2*s)
    ControlYes, Individually,
    from 0-100% output    		Yes,
    from 0-100% output
    Control ModeFixed Value & Programmable
    Dimensions (WxDxH)890 x 500 x 10mm
    Power300W



    Flask (ml)P8021
    50ml    		P8022
    100ml    		P8023
    250ml    		P8024
    500ml    		P8026
    1000ml    		P8027
    2000ml    		P8028
    3000ml    		P8029
    5000ml    		P8012
    96 Well Plate    		P8010
    Tube Rack
    P6023 Tray98725032181186248
    P6022 Tray91704026151185158



     Order Information
    ZWYC-290AUltimate-Cell Stackable Shaking Incubator, 257Lx1, 4-60, 30-300rpm
    P5011WLED Lighting Panel, For ZWYR-D2401/D2402/D2403, ZWYC-290A, White
    P5011RBLED Lighting Panel, For ZWYR-D2401/D2402/D2403, ZWYC-290A, Red & Blue
    P5012-35Cabinet Base Stand for ZWYC-290A, H35cm
    P5012-50Frame Base Stand for ZWYC-290A, H50cm
    P5013Direct Steam Humidification Kit for ZWYC-290A
    P5014IR CO2 Kit for ZWYC-290A
    P5016RS-485 Interface
    P6022Tray for ZWYC-290A, Predrilled
    P6023Tray for ZWYC-290A, Plain
    P7024Universal Spring Pallet for ZWYC-290A
    P8010Tube Rack S/S
    P8011Tube Rack ABS Plastic
    P8017Sticky Mat, 20 x 20cm
    P8021O Clamp, S/S, for 50ml Flask, with Spring Retainer
    P8022O Clamp, S/S, for 100ml Flask, with Spring Retainer
    P8023O Clamp, S/S, for 250ml Flask, with Spring Retainer
    P8024O Clamp, S/S, for 500ml Flask, with Spring Retainer
    P8025O Clamp, S/S, for 750ml Flask, with Spring Retainer
    P8026O Clamp, S/S, for 1000ml Flask, with Spring Retainer
    P8027O Clamp, S/S, for 2000ml Flask, with Spring Retainer
    P8028O Clamp, S/S, for 3000ml Flask, with Spring Retainer
    P8029O Clamp, S/S, for 5000ml Flask, with Spring Retainer
    P8032Clamp for 96 Well Plate, S/S
     ※ S/S: Stainless Steel


    Related accessories, consumables & products

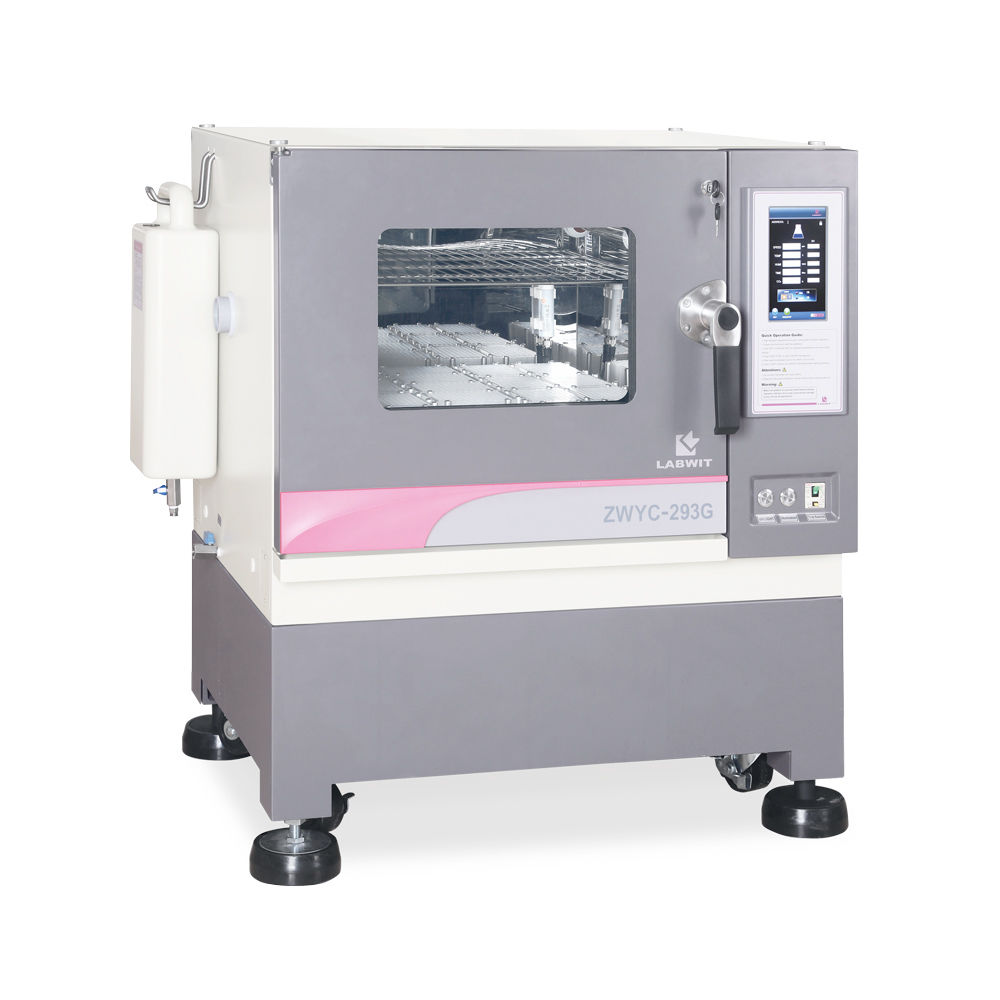

    120L Ultra compact shaking incubator, 4-60C
