Shining3D OptimScan Q12 High-Precision 3D Inspection Scanner

Reference: SHIN-C010462

https://www.analis.com/web/image/product.template/139934/image_1920?unique=5195dcb

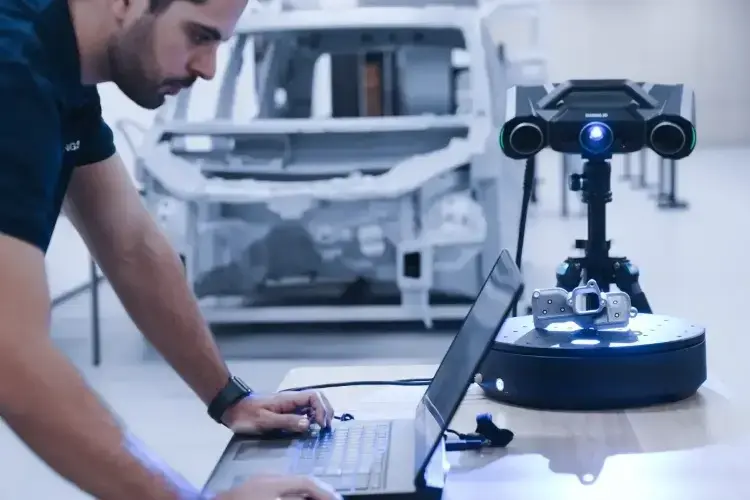

High-Precision 3D Inspection Scanner for Quality Control
The Shining3D OptimScan Q12 is a high-accuracy 3D inspection scanner delivering up to 0.005 mm accuracy for demanding quality control and metrology applications.

Key Advantages for Metrology & Inspection Labs

  • 4 × 12.3 MP cameras for high-resolution data capture
  • Dual scan range for small and medium-sized parts
  • Monocular-Stereo Fusion (MSF) for complete data coverage
  • Fast acquisition (<1 second per scan)
  • Ready for automated and robotic inspection

Applications: Precision Measurement & Validation

  • First article inspection (FAI)
  • GD&T and tight tolerance verification
  • Tooling, molds, and precision components

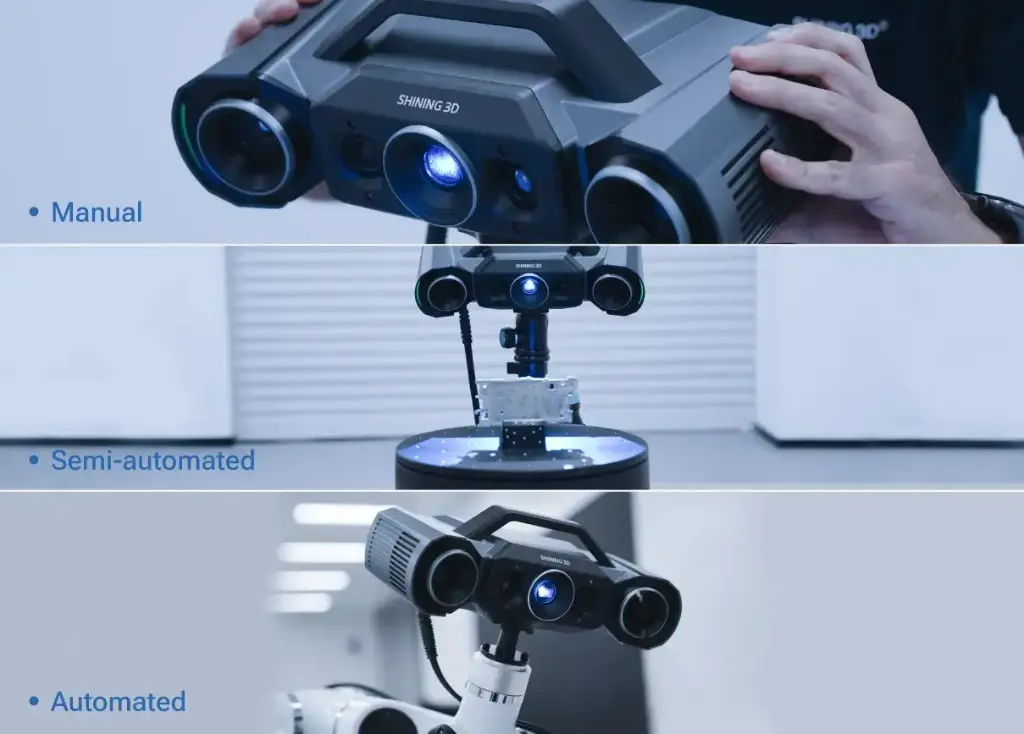

Designed for Automated Quality Control Workflows

Supports manual, semi-automated, and fully automated inspection, ensuring repeatability and scalability in production environments.

Ask Analis local experts for a demo in the Benelux.

    This combination does not exist.

    Related documents

    DOCUMENT NAME

    RELEASE DATE

    DOWNLOAD

    Shining3D OptimScan Q12 brochure
    28 / 04 / 2026
    Download icon Download

    Related accessories, consumables & products

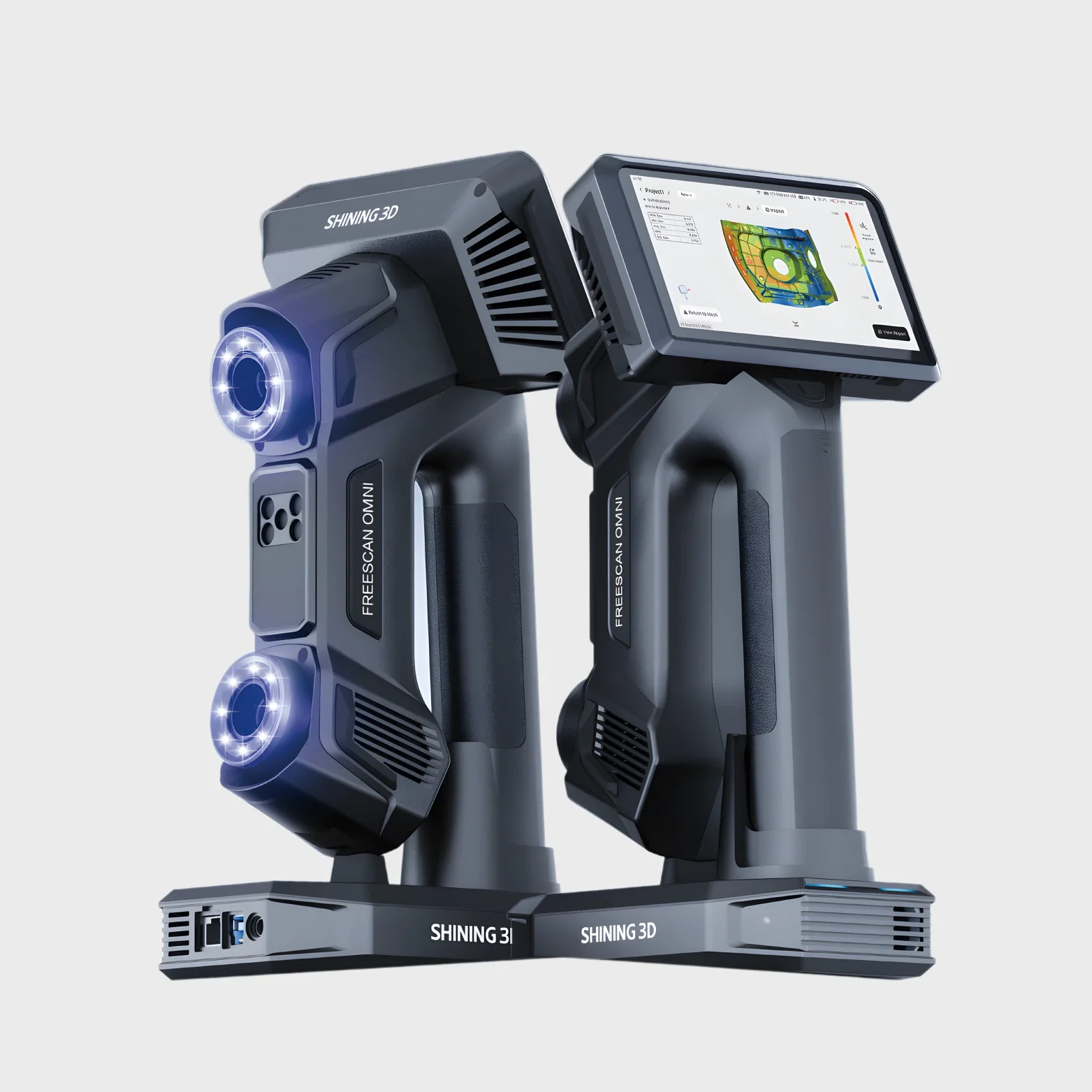

    Shining3D FreeScan Omni Standalone 3D Scanner
    SHINING3D

    Shining3D FreeScan Omni Standalone 3D Scanner

    Reference : SHIN-BD.202511.051
    Standalone 3D Scanner with Integrated Inspection Workflow
    The Shining3D FreeScan Omni is a standalone 3D scanner designed for on-device inspection, enabling a complete workflow from scanning to reporting without external hardware.

    Key Advantages for Autonomous 3D Inspection

    • On-scanner scan-to-inspect workflow
    • PTB-certified inspection module for traceable results
    • Fully wireless operation (no cables or external PC)
    • Real-time processing and reporting on-device
    • Multiple scan modes including high-speed laser and IR

    Applications: Shopfloor & Field Inspection

    • Production floor quality control
    • On-site inspection and maintenance
    • Mobile reverse engineering

    Built for Fast and Reliable Decision-Making

    From data acquisition to reporting, everything is performed directly on the scanner, improving speed, consistency, and operator efficiency.

    Ask Analis local experts for a demo in the Benelux.

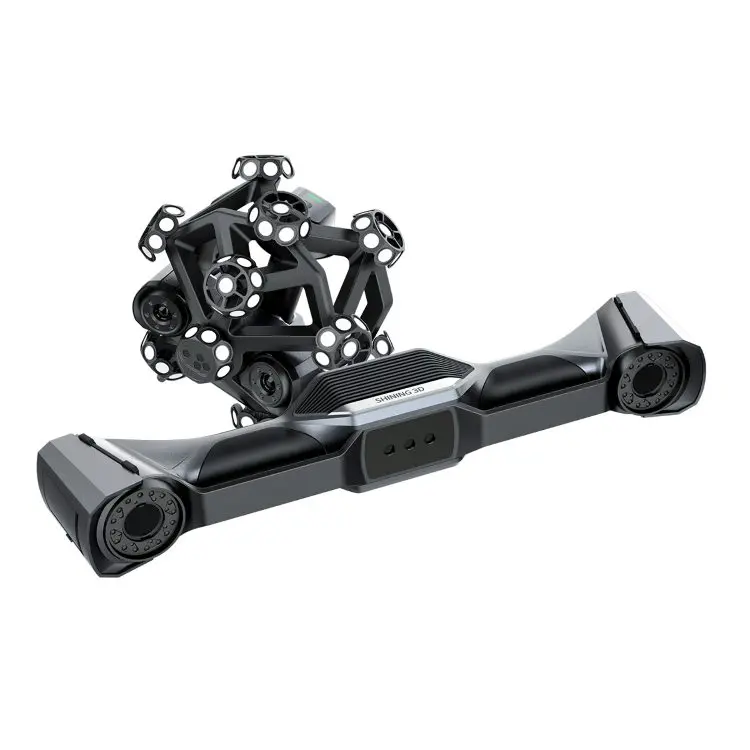

    Shining3D FreeScan Trak Nova Dynamic Tracking System
