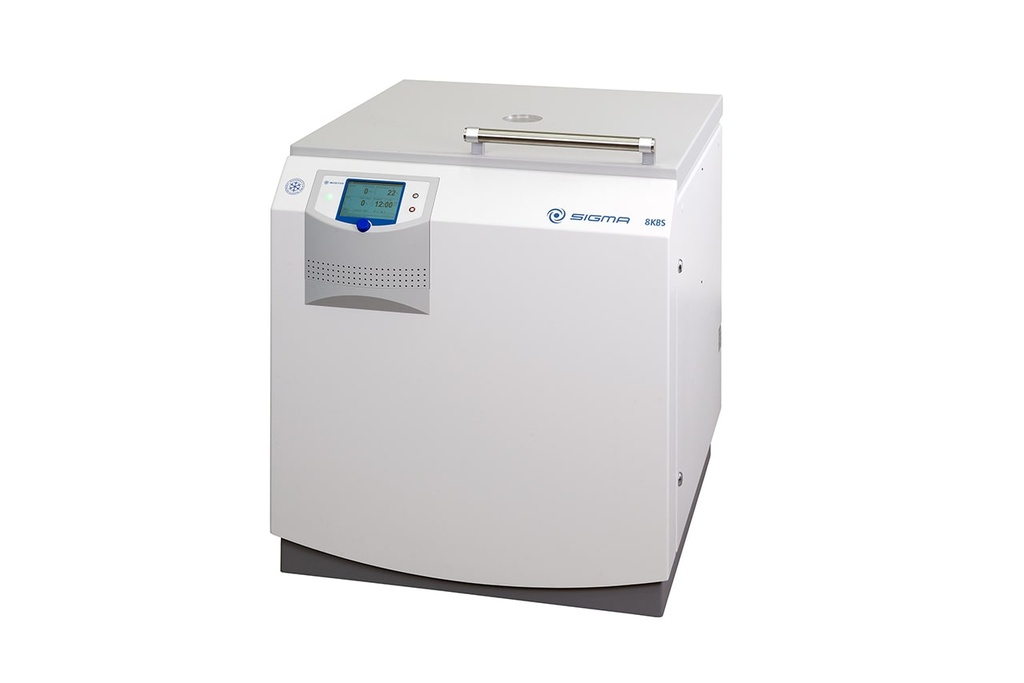

Sigma 8KBS, MD, package, floorstanding refrigerated centrifuge, aircooled compressor, adapters for quadruple or single blood bag systems
Reference: SIG-100010
https://www.analis.com/shop/sig-100010-sigma-8kbs-md-package-floorstanding-refrigerated-centrifuge-aircooled-compressor-adapters-for-quadruple-or-single-blood-bag-systems-106703 https://www.analis.com/web/image/product.template/106703/image_1920?unique=689d05dUser-friendly stand-alone centrifuge for blood banks
This blood bag centrifuge package consists of:
- Sigma 8KBS floor-standing high capacity refrigerated with air-cooled compressor,

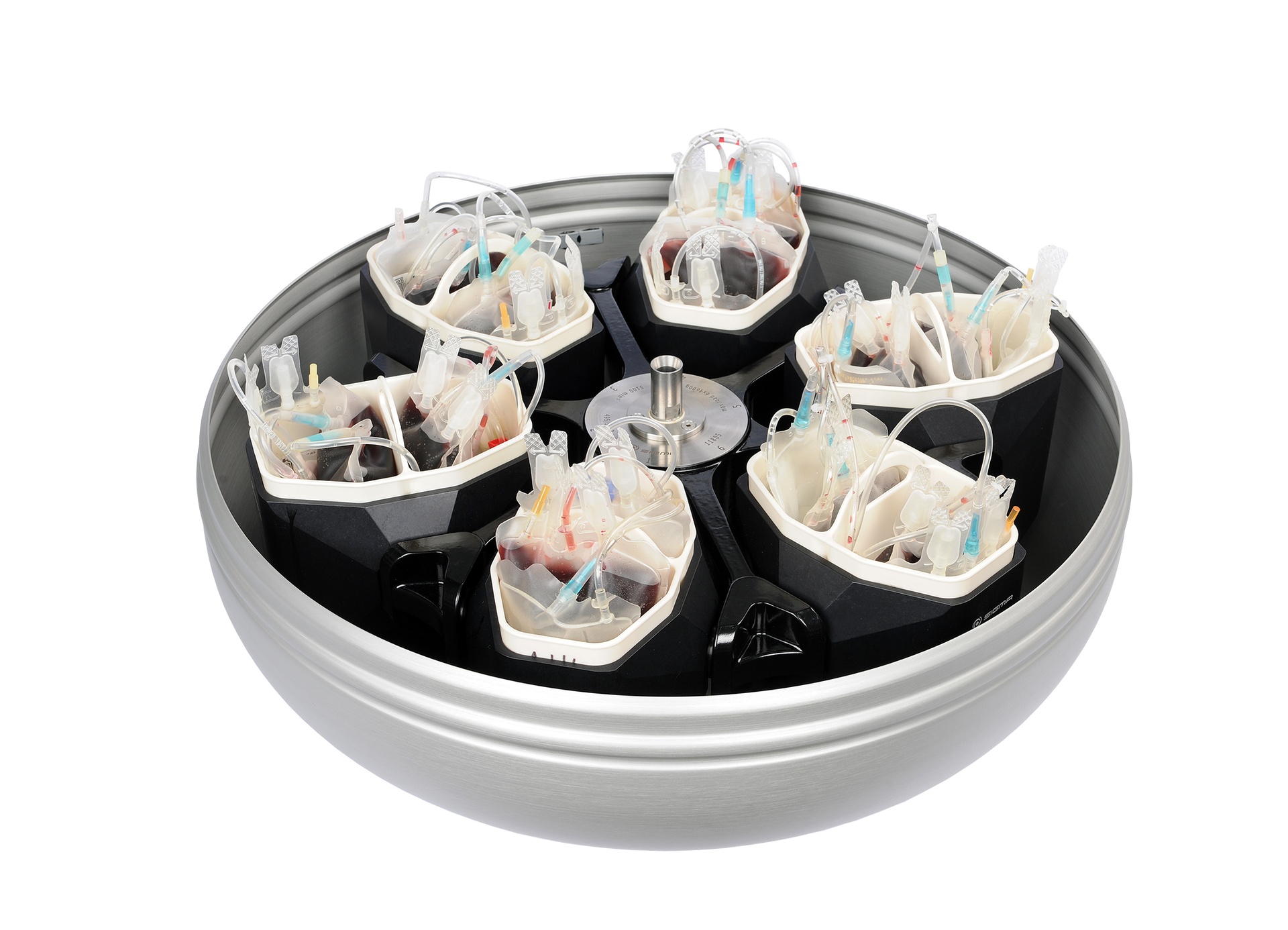

- Rotor no. 11805,
- 6 buckets no. 13860,
- 6 adapters no. 13870,
- 6 balance weights no. 17768,
- 2 balance inserts for blood bags no. 17773,
- 2 tare weights no. 17753,
- 2 tare weights no. 17754,
- interface RS 232
The Sigma 8KBS is a refrigerated floor-standing centrifuge specifically
developed for deployment in blood banks and transfusion facilities. It is
a medical device according to Regulation (EU)2017/745, Class IIa for the
separation of blood components for transfusion medicine.
With a maximum capacity of 12 blood bag systems per run, it enables
efficient processing of large specimen volumes. The device delivers
reliably excellent and reproducible sedimentation results thanks to its
very smooth running. Along with its outstanding specifications, the
Sigma 8KBS features impressive energy efficiency and perfectly matched
accessories.
The centrifuge can optionally be equipped with functions for professional data handling in blood banks, based on the ISBT 128 barcode standard.
The centrifuge is optionally available with water cooling.
Please read our brochure, "Sigma Data Interface", to get more information about using the controller Spincontrol S for quality management in laboratory processes.
Program Specifications:
- Programs: 60
- Acceleration curves: 10 linear, 10 quadratic, 10 user definable
- Deceleration curves: 10 linear, 10 quadratic, 10 user definable
- Cycle counting: Yes
Technical information
| Max. capacity [ml] | |
|---|---|
| swing-out rotor | 12 blood bag systems |
| Max. RCF | 5.394 |
| Max. speed [rpm] | 4.100 |
| Min. speed [rpm] | 100 |
| Noise level at maximum speed (approximate) [dB(A)] | |
|---|---|
| Max. acceleration time [s] | |
| Max. braking time [s] | |
| swing-out rotor 11805 with bucket 13860 | ≤ 57 |
| swing-out rotor 11805 with bucket 13860 | ≤ 49 |
| swing-out rotor 11805 with bucket 13860 | ≤ 87 |
| Temperature setting range [°C] | -20 – +40 |
|---|---|
| Power consumption [W] | 4.200 |
| Height x Width x Depth [mm] | 990 x 820 x 949 |
| Height with open lid [mm] | 1.690 |
| Weight without rotor [kg] | 450 |
| Refrigerant | R452A |
