  1. Clinical centrifuges Micro Hematocrit centrifuges
  2. Sigma 1-16K, refrigerated microcentrifuge 100-240 V, 50/60 Hz
Share
SIGMA

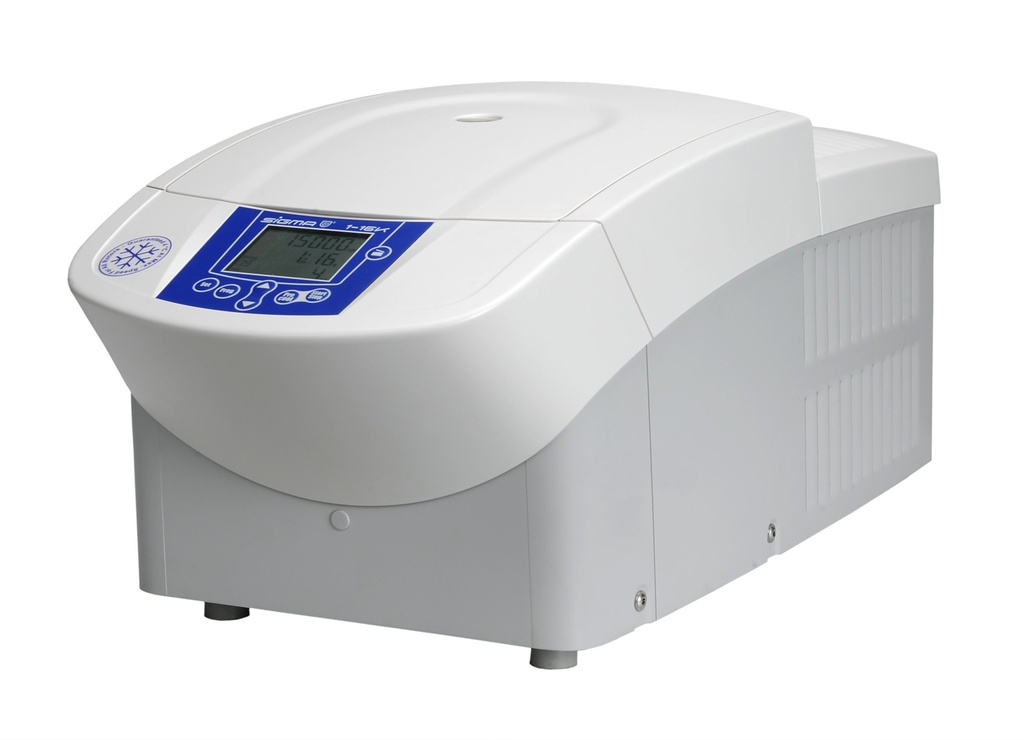

Sigma 1-16K, refrigerated microcentrifuge 100-240 V, 50/60 Hz

Reference: SIG-10046

https://www.analis.com/web/image/product.template/27574/image_1920?unique=f073591

Energy-efficient and quiet


User-friendly, powerful and sturdy
Like the Sigma 1-16, the Sigma 1-16K refrigerated centrifuge is extremely easy to use with its motorized lid lock and has a durable, low-maintenance stainless steel bowl. The Sigma 1-16K also features a fan control that adjusts the fan speed according to the necessary cooling capacity, making it up to 60% quieter and reducing power consumption. At maximum speed the Sigma 1-16K reliably achieves +4°C.

Controller Specifications:
Programs: 10
Acceleration curves: 2
Deceleration curves: 2
Cycle counting


Both 1-16 unrefrigerated and 1-16K refrigerated bench microcentrifuges are also available in IVD versions.

    This combination does not exist.

    Technical information

    Max. capacity [ml]
    fixed-angle rotor36 x 2
    Max. RCF20.627
    Max. speed [rpm]15.000
    Min. speed [rpm]200
    Noise level at maximum speed (approximate) [dB(A)]
    fixed-angle rotor 12134≤ 48
    Max. acceleration time [s]
    fixed-angle rotor 12134≤ 16
    Max. braking time [s]
    fixed-angle rotor 12134≤ 16
    Temperature setting range [°C]-
    Power consumption [W]420
    Height x Width x Depth [mm]291 x 310 x 660
    Height with open lid [mm]547
    Weight without rotor [kg]34
    RefrigerantR134a
    Charge [kg] / Pressure [bar]0,136 / 23
    CO2 equivalent [t]0,194


    Related documents

    DOCUMENT NAME

    RELEASE DATE

    DOWNLOAD

    Brochure Sigma 1-16 & 1-16K EN
    19 / 09 / 2024
    Download icon Download

    Related accessories, consumables & products

    Sigma 1-14K, refrigerated microcentrifuge 220-240V, 50/60Hz
    SIGMA

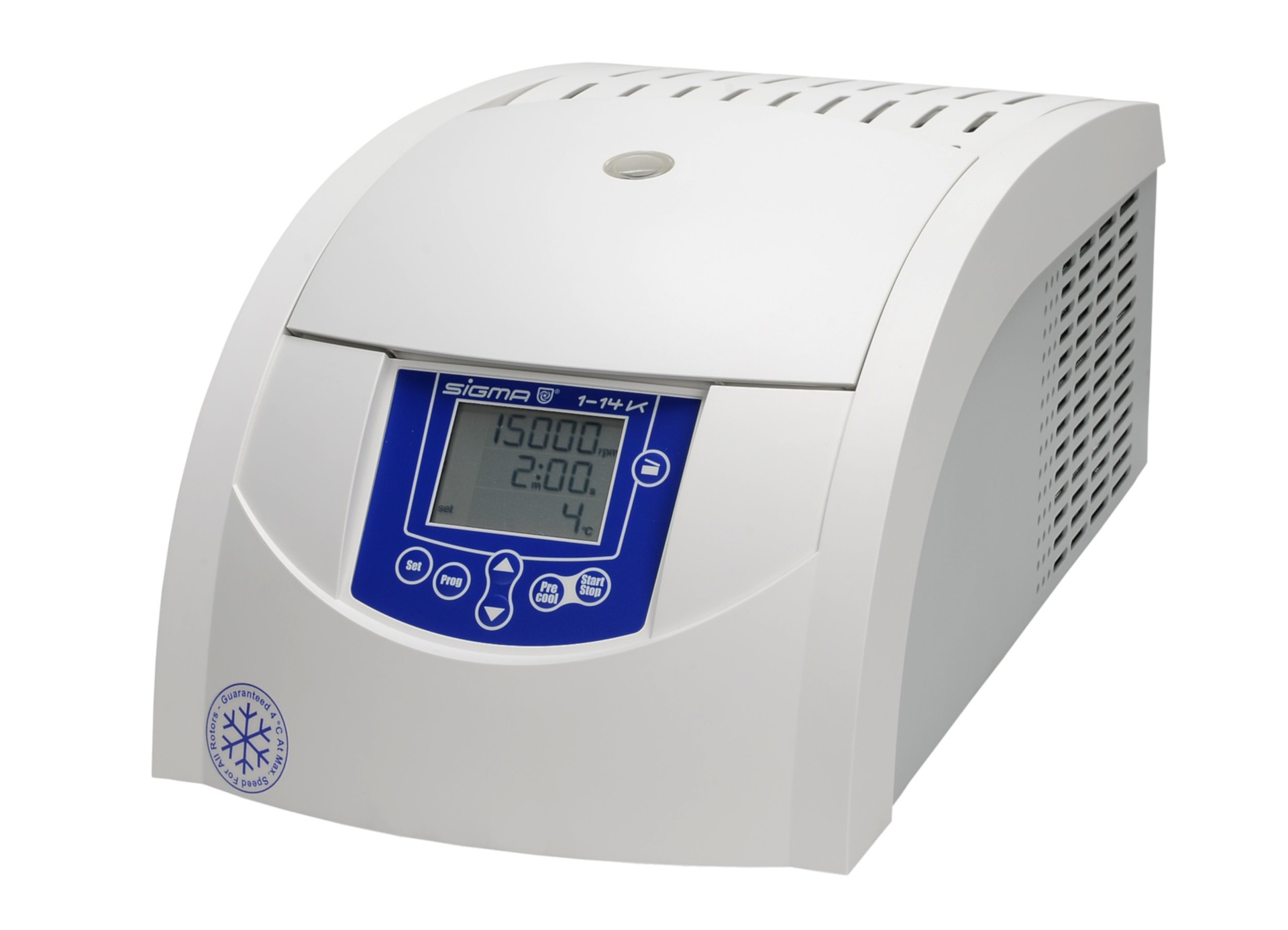

    Sigma 1-14K, refrigerated microcentrifuge 220-240V, 50/60Hz
