SIGMA

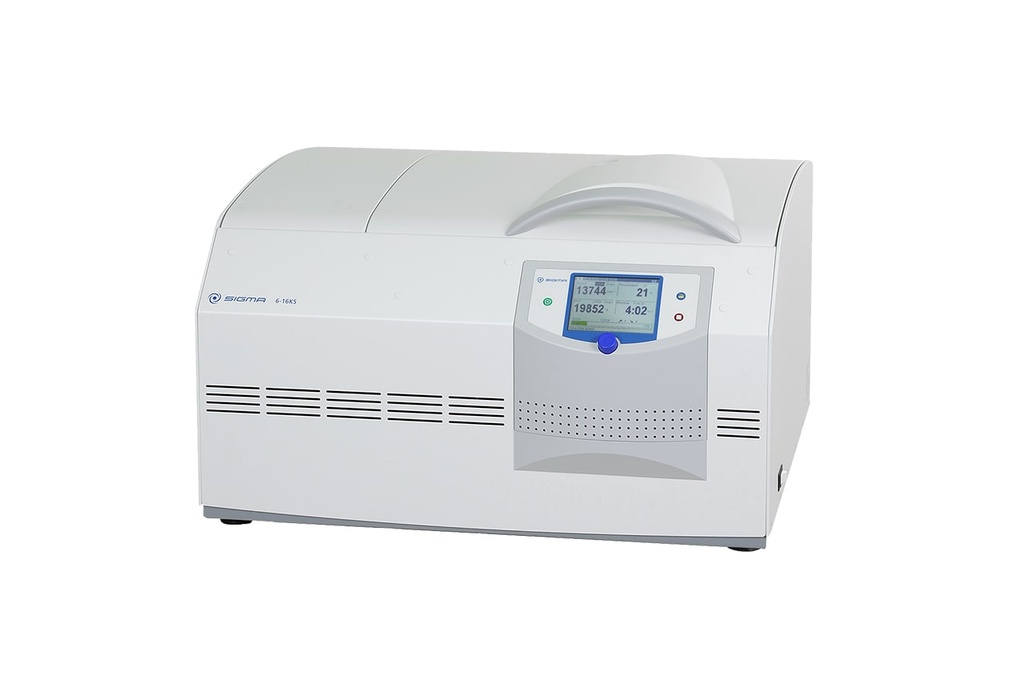

Sigma 6-16KS blood bag package, refrigerated benchtop centrifuge, incl. rotor 11660, 4 buckets 13625 and 4 adapters 13627, 220-240 V, 50 Hz

Reference: SIG-1039506

https://www.analis.com/web/image/product.template/106712/image_1920?unique=689d05d

Performance matching a floor-standing centrifuge
The compactness of a benchtop centrifuge with the performance of a floor-standing centrifuge. The refrigerated Sigma 6‑16KS is suitable for a wide variety of routine and research applications with high versatility, an advanced user interface and outstanding reliability.

The bloodbag version SIG-1039506 is a configuration including the right accessories to spin blood bags. It includes:

  • 6-16KS centrifuge (SIG-10395)
  • Rotor (11660),
  • 4 buckets (13625)
  • 4 adapters for bags

The Sigma 6‑16KS delivers precise separation results in all cases, whether blood pouches, petroleum flasks, microtiter and deepwell plates, or tubes and flasks from 0.2 ml to 1,000 ml.
It is widely used in microbiology and molecular biology, pharmaceutics, genomics, clinical diagnostics, bioproduction, cell culture labs and transfusion facilities. A total of twelve fixed-angle and six swing-out rotors are available, along with numerous buckets and adapters – including many biosafe configurations.

The Sigma 6‑16KS features a clearly organised display. The patented Spincontrol S one-knob controller provides superior operating convenience and process reliability. Optimisation of separation runs and yields is supported by 60 programs with the option of making user-specific settings, as well as 30 profiles for use as acceleration or braking curves. Custom person-specific settings can be saved with password-protected access control. An extremely practical feature is the large program status display, visible from a distance, with a progress bar.

The Sigma 6‑16KS is also available as the Sigma 6‑16S unrefrigerated centrifuge, the Sigma 6‑16HS heated centrifuge and the Sigma 6‑16KHS refrigerated and heated centrifuge. An inert gas port is optionally available for this device.

Controller Specifications:
Temperature setting range [°C]: -20 – +40
Programs: 60
Acceleration curves: 10 linear, 10 quadratic, 10 user definable
Deceleration curves: 10 linear, 10 quadratic, 10 user definable
Cycle counting: Yes

    This combination does not exist.

    Technical information

    Max. capacity [ml]
    swing-out rotor4 x 1.000
    fixed-angle rotor6 x 500
    Max. RCF25.419
    Max. speed [rpm]15.000
    Min. speed [rpm]100
    Noise level at maximum speed (approximate) [dB(A)]
    fixed-angle rotor 12449≤ 66
    swing-out rotor 11660
    with bucket 13450    		≤ 57
    Max. acceleration time [s]
    fixed-angle rotor 12449≤ 28
    swing-out rotor 11660
    with bucket 13450    		≤ 34
    Max. braking time [s]
    fixed-angle rotor 12449≤ 43
    swing-out rotor 11660
    with bucket 13450    		≤ 34
    Temperature setting range [°C]-20 – +40 / -20 – +60
    Power consumption [W]2.000
    Height x Width x Depth [mm]483 x 581 x 711
    Height with open lid [mm]990
    Weight without rotor [kg]158
    RefrigerantR452A
    Charge [kg] / Pressure [bar]0,590 / 28
    CO2 equivalent [t]1,263
