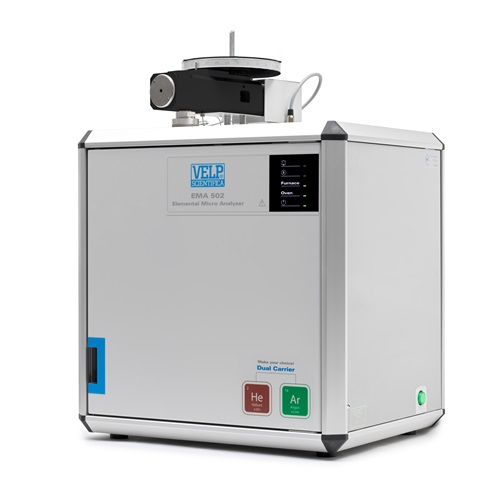

EMA 502 Elemental Micro Analyzer CHNS-O

Reference: VEL-F30800100

https://www.analis.com/web/image/product.template/123335/image_1920?unique=966257f

The all-in-one CHNS/O solution to broaden your analytical potential

The EMA 502 CHNS-O Elemental Analyzer accurately and reliably determines carbon, hydrogen, nitrogen, sulfur and oxygen across sectors: pharma and life science, organic chemistry, petrochemistry and energy, environmental, agronomy and food & feed.


The EMA 502 (ref. VEL-F30800100) elemental analyzer for carbon, hydrogen, nitrogen and sulfur — with an oxygen option — includes:

Start-up kit, cables for balance and PC, software, 30-position disc autosampler, kit for approx. 1000 analyses, argon option, 1-year ERMES license


CHNS-O analysis with the EMA 502 helps determine the structure of an unknown compound and assess the structure and purity of a synthesized one.


Following official reference methods, the EMA 502 performs CHNS and oxygen determination in minutes, with no add-ons or external modules.


The EMA 502 is a safe analyzer with no aggressive chemicals or time-consuming steps.


Set your next analysis and get a wealth of information from the sample.


EMA 502 Elemental Analyzer working principle

EMA 502 Elemental Analyzer working principle

CHNS analysis begins with combustion of the sample in the VELP combustion furnace, above 1000 °C, to obtain elemental compounds.


VELP Vcopper™, a highly active copper powder, sits in the lower reactor to help reduce NOx to N2.


The flow then reaches the gas chromatography column oven, whose homogeneous, adjustable temperature fully separates the elements for final detection by TCD.


For oxygen analysis, the sample undergoes pyrolysis in the furnace, then passes through a chemical trap that absorbs all impurities before reaching the gas chromatography column and the TCD for detection.


    This combination does not exist.

    EMA 502 Elemental Micro Analyzer CHNS-O

    Technical information

    Method of analysis:

    CHNS: Combustion
    O: Pyrolysis

    Analysis time:

    CHNS: 12 minutes
    O: 6 minutes

    Detector:

    TCD (Thermal Conductivity Detector)

    Sample weight:

    Up to 100 mg (depending on C content)

    Autosampler type:

    Electronic

    Autosampler capacity:

    Up to 4 discs, 30 positions each (up to 117 samples)

    Detection ranges:

    C: ppm up to 20 mg abs. (or 100 %)
    H: ppm up to 5 mg abs. (or 100 %)
    N: ppm up to 20 mg abs. (or 100 %)
    S: ppm up to 6 mg abs. (or 100 %)
    O: ppm up to 6 mg abs. (or 100 %)

    Official references:

    ISO 16948; ISO 21663; ISO 10694; ISO 15178; ISO 13878; ISO 20620; ISO 2287; ISO 29541; EN 13654; EN 13654-2, EN 15936; ASTM D 5373; ASTM D 5291; ASTM D 4239; ASTM D 5622; AOAC 993.13; AOAC 2017.08, etc.

    Precision:

    ≤ 0.2 %

    Combustion / pyrolysis temperature:

    1100 °C / 2012 °F

    Carrier gas:

    Helium or Argon (grade 5.0)

    Combustion gas:

    Oxygen (grade 5.0)

    Connectivity:

    Ermes Cloud Platform via Wi-Fi or LAN connected to a PC

    Interfaces:

    USB; RS232

    Weight:

    45 kg
    99 lb

    Dimensions (WxHxD):

    500 x 510 x 410 mm (H 680 mm with autosampler)
    19.7 x 20.1 x 16.1 in (H 26.8 with autosampler)

    21 CFR Part 11 Compliance:

    Yes, optional package available


    Related documents

    DOCUMENT NAME

    RELEASE DATE

    DOWNLOAD

    VELP-Bochure-EMA502
    23 / 12 / 2024
    Download icon Download

    Related accessories, consumables & products

    NDA 702 Dumas Nitrogen Analyzer
    VELP

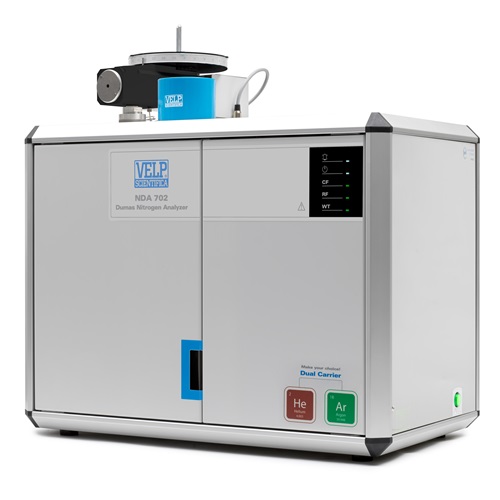

    NDA 702 Dumas Nitrogen Analyzer

    Reference : VEL-F30800080

    Built to maximize your productivity


    The NDA 702 Dumas elemental analyzer suits high-throughput labs that need a fast, safe analyzer, with a choice of helium or argon as carrier gas.


    Powered by DUMASoft™ software, the NDA 702 produces N/protein results in just 3 to 4 minutes, fully unsupervised and cloud-enabled.


    The NDA 702 is much faster, easier and safer than a traditional Kjeldahl system.


    It is a safe analyzer that needs no aggressive chemicals or time-consuming steps: just prepare your sample and walk away.


    NDA 702 Nitrogen Analyzer Working Principle

    VELP NDA 702 Nitrogen Analyzer Working Principle

    The Dumas method begins with combustion of the sample in the VELP combustion furnace (CF), above 1000 °C, to obtain elemental compounds.


    Water is separated in two steps: first the maintenance-free physical trap DriStep™ (WT1) placed right after combustion, then a chemical trap (WT2) that removes the remaining 1% of water.


    Between the two traps, the gas flow passes through the reduction furnace (RF), where NOx compounds are converted into molecular nitrogen (N2).


    The CO2 is then trapped by the self-regenerating VELP CO2 adsorbers.


    Finally, elemental nitrogen is detected by the TCD LoGas™ thermal conductivity detector, which sends the data to DUMASoft™ to calculate nitrogen and protein content.


    Elemental Analysis and the Dumas Method

    The Dumas method (combustion method) is a primary method for determining nitrogen and protein, offering fast results, ease of use and safety. It is considered an alternative to the classical Kjeldahl method. Both are validated by international bodies: Kjeldahl is recognized by AOAC, EPA, DIN, ISO and others, and Dumas by AOAC, AACC, ISO, DIN, ASBC, AOCS, OIV and others. In some countries, local guidelines recommend one method over the other.

    The Dumas method for nitrogen determination (1831) is older than Kjeldahl (1883) but more convenient in many ways: speed, safety, cleanliness, productivity and cost per analysis.

    In the past, the conditions the Dumas method requires were hard to reproduce, so Kjeldahl took the lead and became the classical method for nitrogen/protein determination.

    Today, thanks to technological progress, Dumas nitrogen determination is becoming more widespread.
    CN 802 Carbon Nitrogen Elemental Analyzer
    VELP

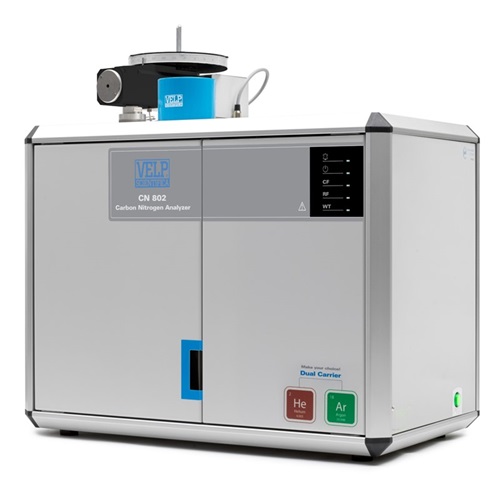

    CN 802 Carbon Nitrogen Elemental Analyzer

    Reference : VEL-F30800090

    Fast, simultaneous carbon and nitrogen analyses

    The CN 802 is a robust, flexible combustion analyzer that follows official reference methods to determine carbon and nitrogen across many sectors: agriculture, environmental, food & feed and chemical.


    The proprietary CNSoft™ software powers the CN 802 and delivers unsupervised, simultaneous results in 5 minutes for:

    • TC: Total Carbon
    • TOC, TIC: Total Organic and Inorganic Carbon (after acidification)
    • TN: Total Nitrogen
    • C/N Ratio


    The CN 802 is a safe analyzer with no aggressive chemicals or time-consuming steps: just prepare your sample and walk away.


    Set your next analysis and get a wealth of information from the sample.


    CN 802 Working Process

    VELP CN 802 Working Process

    The sample is purged with a carrier gas and drops into the combustion reactor, where it is converted into elemental compounds at high temperature (above 1000 °C).


    Water is separated in two steps. The combustion gases first reach the maintenance-free physical trap DriStep™ (WT1) after combustion, trapping 99% of the water; a chemical trap (WT2) then removes the remaining 1%.


    High temperature combined with the exclusive Vcopper™ reduces nitrogen dioxide to molecular nitrogen in the reduction furnace.


    The VELP HighSensIR detector covers a very wide carbon range, from a few ppm up to 150 mg of absolute carbon — from micro to macro applications.


    Auto-regenerating CO2 absorbers then trap carbon dioxide, letting the exclusive TCD (Thermal Conductivity Detector) measure the nitrogen content.
