What is Vacuum Concentration / Evaporation?
Vacuum concentration is a gentle and fast method for concentration, drying, purification or evaporation of temperature sensitive samples (fluid products). During the process, liquid substances (including pure solvents) are evaporated through a vacuum process (typically ranging from 1 mbar to 30 mbar). To avoid overboiling, the samples are rotated during the vacuum concentration process.
Often as a lab, you need to make a choice between different concentration methods like vacuum concentration, distillation, rotary evaporation, vortex evaporators, nitrogen blowdown,…
With rotational vacuum concentration (RVC), you can prepare samples quickly without sacrificing gentle handling. This method can be used for evaporation, drying, purification and concentration.
Rotational vacuum concentration can be a true alternative for anyone who has previously worked with distillation systems, rotary evaporators or freeze dryers. Distillation systems and rotary evaporators use high temperatures for evaporation and operate at nearly atmospheric pressure. They are fast, but not especially gentle.
Freeze drying systems operate at very low temperatures and high vacuum. The samples go directly from the solid, icy state to the vapor state by sublimation. This is extremely gentle, but time consuming.
All this makes Christ rotational vacuum concentrators a good alternative. Rotational vacuum concentration occupies a position between the two methods mentioned above. At temperatures near room temperature and pressures of a few millibar, the samples (solvents) boil without freezing. This makes the method very fast.
Another advantage is that the samples are not subjected to thermal stress, which is especially important with thermally unstable biological and clinical samples.
During vacuum concentration, the material is centrifuged at a moderate speed of about 1,350 to 1,750 rpm. The resulting centrifugal force prevents samples splashing from bumping. The solvent is collected in separators or cold traps. This makes disposal easy, and in some cases enables reuse.
Rotational vacuum concentration is especially economical in practice. The method is suitable for drying a wide variety of aqueous and solvent-based samples. The volume range extends from one millilitre to three litres. The samples are concentrated at the bottom of the vessel, unlike vortex shakers. This is especially advantageous with small volumes and thin solutions. The method also scores well for effectiveness: a large number of samples can be dried simultaneously, saving time.
The drying processes are also easily reproducible. This enables controlled process parameters, such as rotor chamber temperature and vacuum level.
RVC 2-18 CDplus
Basic model
Compact benchtop mini concentrator for fast and efficient vacuum concentration, at home on every lab bench. Optimal processing without sample splashing is ensured by modern technology with variable-speed magnetic drive, automatic venting and internal control of vacuum application and release. This mini concentrator ensures optimal and gentle handling of DNA/RNA, proteins and other liquid specimens.The glass cover features high resistance to organic solvents, such as TFA and DMSO.
The RVC 2-18 CDplus can be specifically configured to suit your individual needs. A wide variety of rotors are available for this concentrator.
RVC 2-18 CDplus
HCl resistant version
Compact benchtop mini concentrator for fast and efficient vacuum concentration, at home on every lab bench.
Optimal processing without specimen splashing is ensured by modern technology with variable-speed magnetic drive, automatic venting and internal control of vacuum application and release. This mini concentrator ensures optimal and gentle handling of DNA/RNA, proteins and other liquid specimens.
The special coating of the rotor chamber and the glass cover provide high resistance to organic solvents such as TFA and DMSO and aggressive acids such as HCl.
The RVC 2-18 CDplus as HCl resistant version can be specifically configured to suit your individual needs. A wide variety of rotors are available for this concentrator.

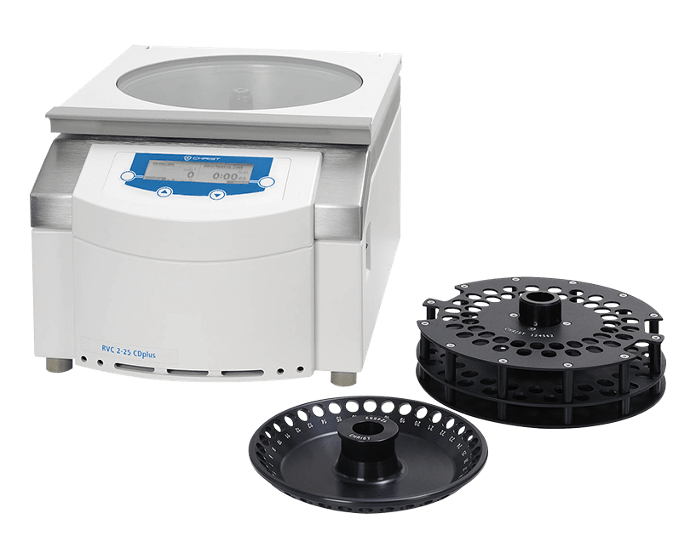

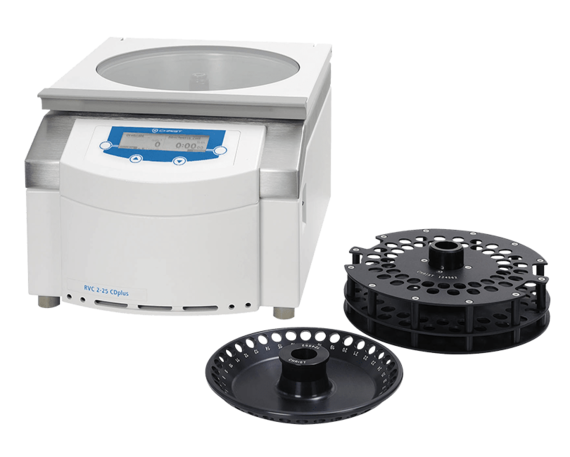

RVC 2-25 CDplus
Compact benchtop midi concentrator for fast and efficient vacuum concentration, at home on every lab bench.
Optimal processing without specimen splashing is ensured by modern technology with variable-speed magnetic drive, automatic venting and internal control of vacuum application and release. This midi concentrator ensures optimal and gentle handling of DNA/RNA, proteins and other liquid specimens.
The glass cover features high resistance to organic solvents, such as TFA and DMSO.
The RVC 2-25 CDplus can be specifically configured to suit your individual needs. A wide variety of rotors are available for this concentrator.
RVC 2-33 CDplus
Maxi concentrator
Compact benchtop maxi concentrator for fast and efficient vacuum concentration, at home on every lab bench. Optimal processing without specimen splashing is ensured by modern technology with variable-speed magnetic drive, automatic venting and internal control of vacuum application and release. This maxi concentrator ensures optimal and gentle handling of DNA/RNA, proteins and other liquid specimens.
The glass cover features high resistance to organic solvents, such as TFA and DMSO.
The RVC 2-33 CDplus can be specifically configured to suit your individual needs. A wide variety of rotors are available for this concentrator.

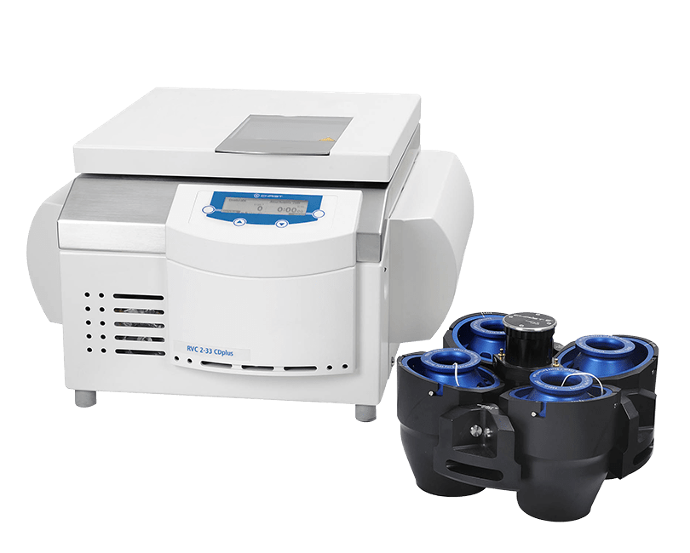

RVC 2-33 CDplus
Version with infrared heating
This new RVC is a compact, versatile and durable benchtop unit for everyday laboratory use. Innovative heating with four infrared lamps ensures fast and efficient vacuum concentration. Optimal results are facilitated by robust measurement data transmission, specimen temperature measurement and programmable operation. The glass cover features high resistance to organic solvents, such as TFA and DMSO.
The RVC 2-33CDplus with infrared heating can be specifically configured to suit your individual needs. A wide variety of rotors are available for this concentrator.
Our products
Rotational-vacuum-concentrator RVC 2-18 CDplus, 230 V, 50/60 Hz standard version, bench top unit, stainless steel rotor chamber, magnetic drive system, heated rotor chamber (240 W), lid with inspection window and electrical locking- and safety device, user-friendly control system with LC display,
Rotational-vacuum-concentrator RVC 2-18 CDplus HCl, HCL-resistant version, 230 V, 50/60 Hz, bench top unit, magnetic drive system, chemical resistant (Hastelloy), resistant sealings, rotor chamber enamel-coated, lid made of borosilicate glass with inspection window and electrical locking- and safety device, resistant valve to release vacuum, user-friendly control system with LC display, preselection of heating temperature through +60°C in one steps and time, heating time and running time can be selected seperately
Rotational-vacuum-concentrator RVC 2-25 CDplus, 230 V, 50/60 Hz, bench top unit, stainless stell rotor chamber, magnetic drive system, lid with inspection window and electrical locking- and safety device, user-friendly control system with LC display,
special voltage see part no. 120100
RVC 2-33 CDplus Infrared Vacuum Concentrator: Advanced Sample Preparation Technology
The RVC 2-33 CDplus Infrared Vacuum Concentrator from Martin Christ combines cutting-edge technology with user-friendly features, making it the ideal solution for laboratories in the Benelux and beyond. Whether you’re working with DNA/RNA, proteins, or sensitive chemical samples, this concentrator delivers precise, efficient, and reproducible results for your sample preparation needs.
Key Features of the RVC 2-33 CDplus
Efficient Infrared Heating
Accelerate sample evaporation while maintaining precise control. The infrared heating system ensures even heat distribution, preventing overheating and preserving sample integrity.Optimal Vacuum Control
The advanced vacuum system minimizes solvent bumping and enhances drying speed, especially for aqueous and organic solvents. Ideal for high-throughput laboratories.Compact, Space-Saving Design
With its small footprint, the RVC 2-33 CDplus is perfect for labs where bench space is at a premium. Despite its compact size, it handles large sample volumes efficiently.Customizable Rotors and Accessories
Tailor the system to your lab's needs with a range of rotors and adapters for microtubes, microplates, and other sample types.User-Friendly Interface
The intuitive control panel allows for easy programming and monitoring of your processes. Set parameters such as temperature, vacuum level, and run time with confidence.
Applications
The RVC 2-33 CDplus excels in a variety of applications, including:
- Genomic and proteomic research
- Sample concentration for analytical techniques (e.g., HPLC, GC-MS)
- Drying of samples with high water or organic solvent content
Why Choose the RVC 2-33 CDplus for Your Laboratory?
Martin Christ is a leader in freeze-drying and vacuum concentration solutions, offering unparalleled quality and reliability. By investing in the RVC 2-33 CDplus, you’re choosing a system that:
- Improves laboratory workflow efficiency
- Reduces downtime and maintenance
- Ensures consistent, high-quality results
Available in Belgium
Through Analis, official distributors of Martin Christ in Belgium, you can access expert support, quick delivery, and technical guidance for the RVC 2-33 CDplus and other laboratory equipment.
Order Your RVC 2-33 CDplus Today
Upgrade your lab's efficiency and precision with the RVC 2-33 CDplus Infrared Vacuum Concentrator. Contact Analis for a quote or to learn more about how this advanced concentrator can meet your specific needs.
Rotational-Vacuum-Concentrator RVC 2-33 CDplus in IR version, 230 V, 50/60 Hz, efficient energy supply with halogen IR lamps, with measurement of the product temperature, bench top unit, stainless steel rotor chamber, magnetic drive system, solvent resistant inner glass lid, lid with electrical locking- and safety device, user-friendly control system CDplus (Concentrator Display plus) with LC-display, preselection of vacuum, heating temperature and time up to 30 programms, digital vacuum display of set and actual value, measuring range 1000 to 0.1 mbar (incl. ceramic sensor for high- and low-boiling solvents),
special voltage see part no. 120100
